Ebola virus disease (EVD) is the disease in humans and other primates that is caused by the Ebola virus. Fruit bats are the reservoir for the virus and are able to spread the disease without being affected. Humans can become infected by contact with fruit bats or with people infected by the virus, their body fluids or equipment used to treat them.

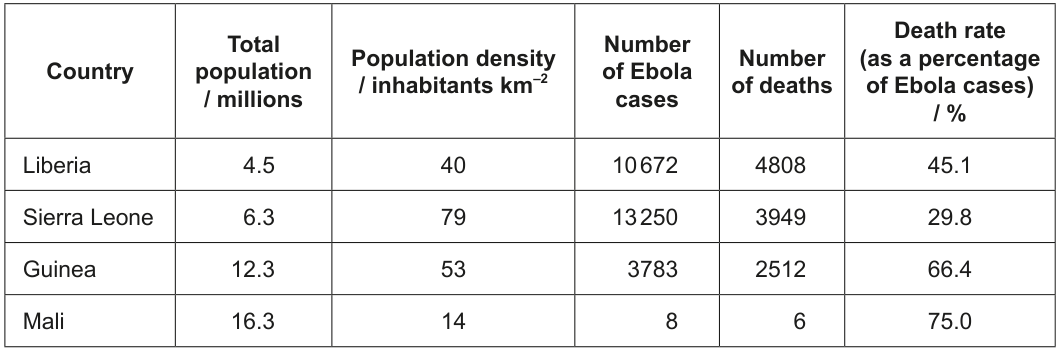

The table shows data for four African countries that were affected by the 2014-2015 Ebola outbreak.

The black-legged tick (lxodes scapularis) is an arthropod which sucks blood from humans and other mammals. It is encountered mainly in wooded and semi-wooded areas.

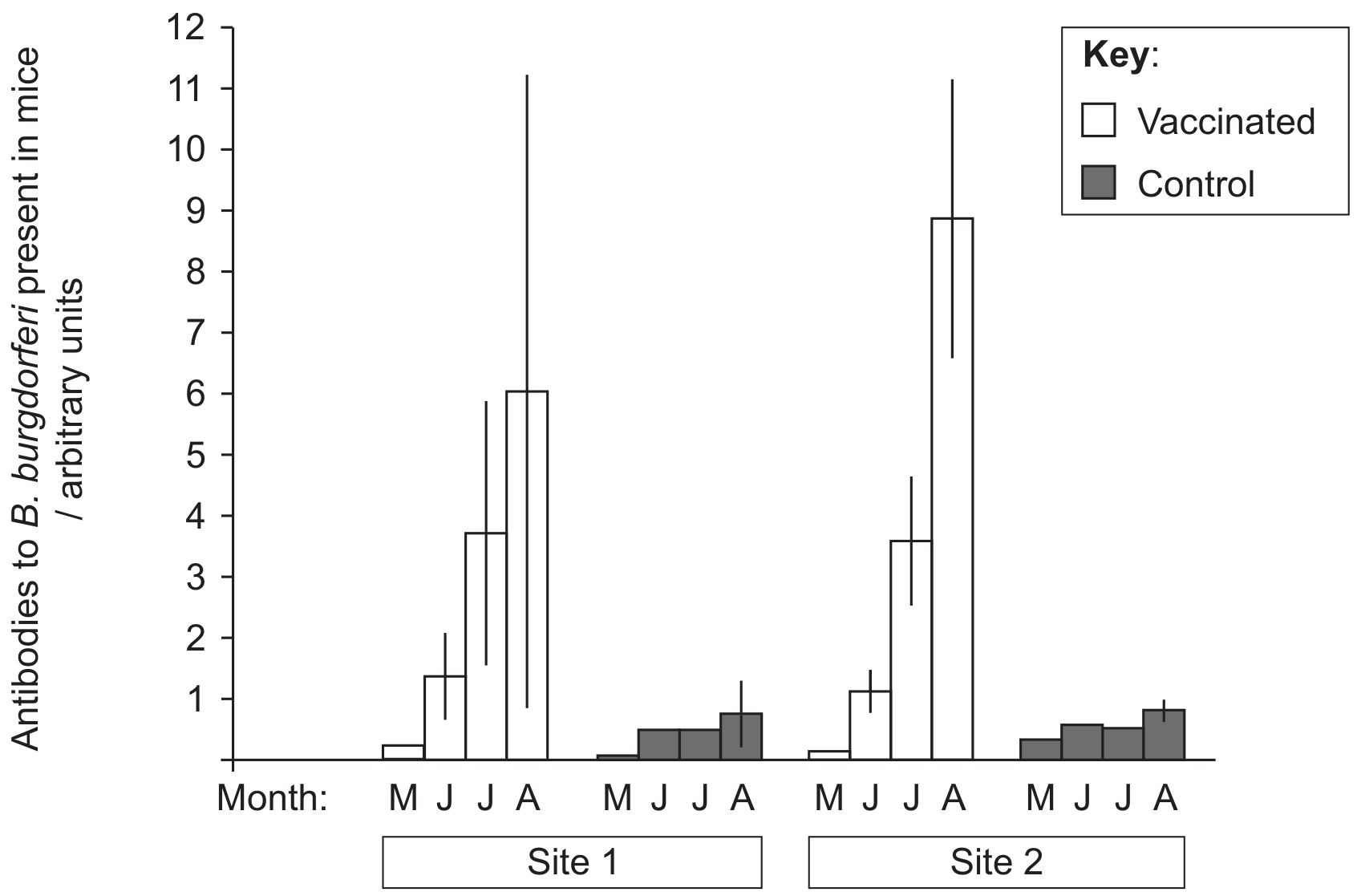

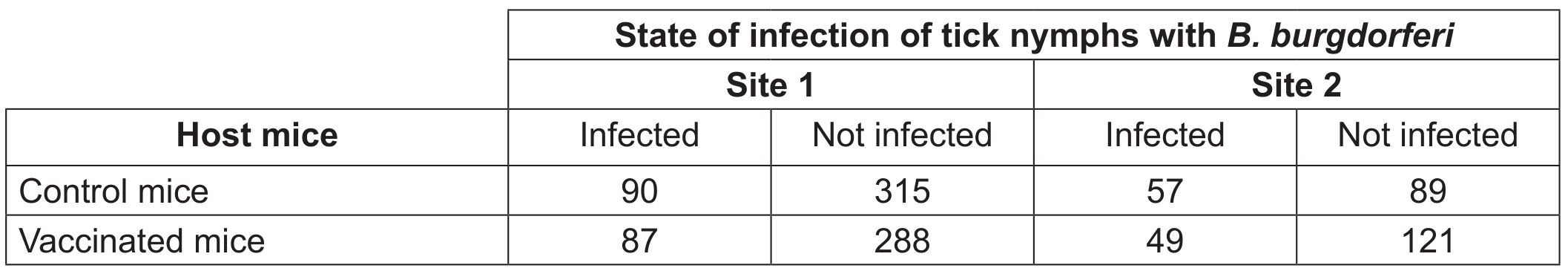

Some ticks can be infected by the bacterium Borrelia burgdorferi. When a tick bites a human, the bacterium is often introduced, causing Lyme disease. Lyme disease is a public health problem in North America and, if left untreated, can cause important neurological impairment. The diagram represents the two-year life cycle of a tick.

Ebola virus disease (EVD) is the disease in humans and other primates that is caused by the Ebola virus. Fruit bats are the reservoir for the virus and are able to spread the disease without being affected. Humans can become infected by contact with fruit bats or with people infected by the virus, their body fluids or equipment used to treat them.

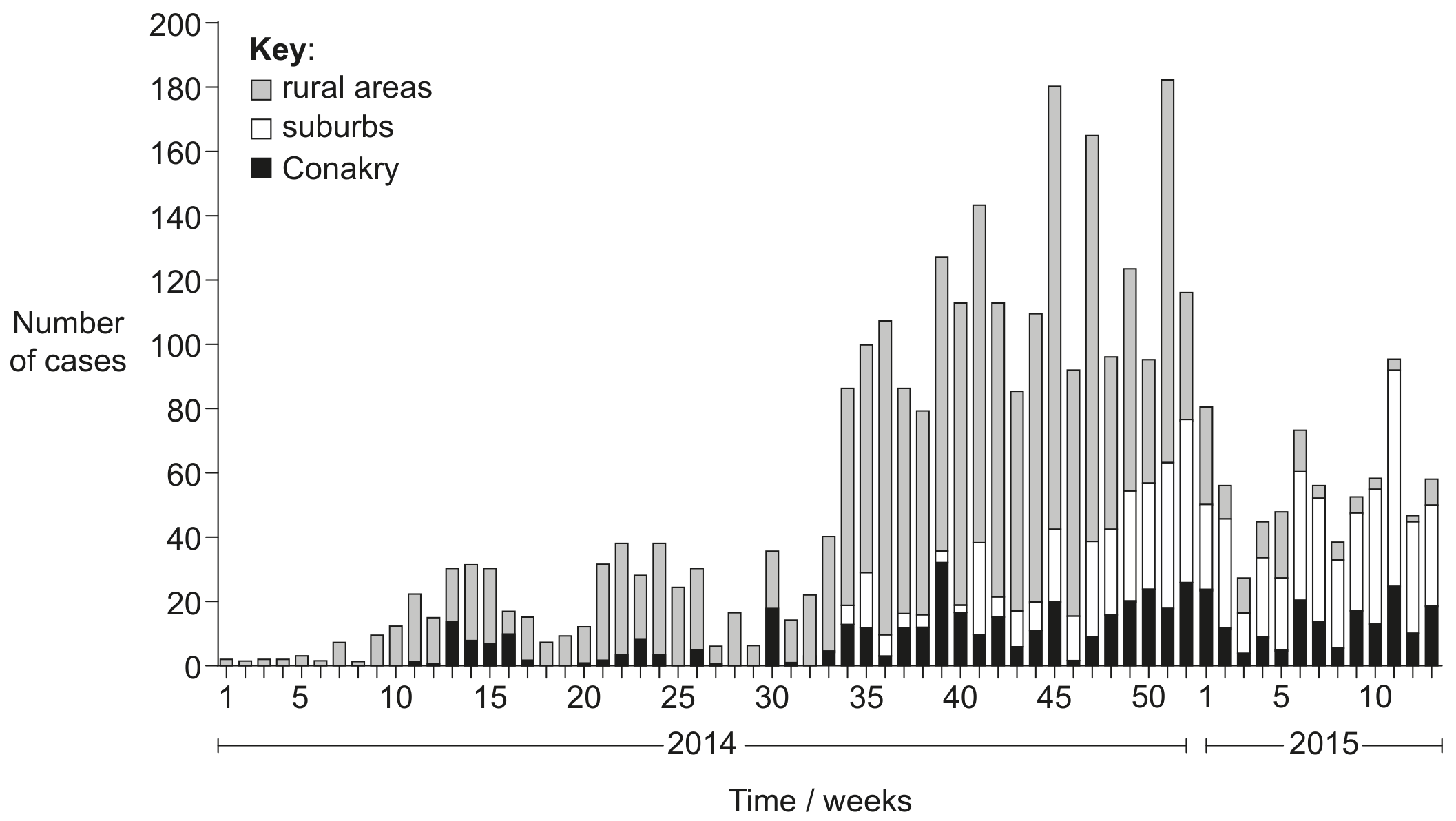

The stacked bar graph shows the epidemiological data for the EVD cases in Conakry, the capital city of Guinea, surrounding suburbs and rural areas in Guinea from the beginning of January 2014 to the end of March 2015.

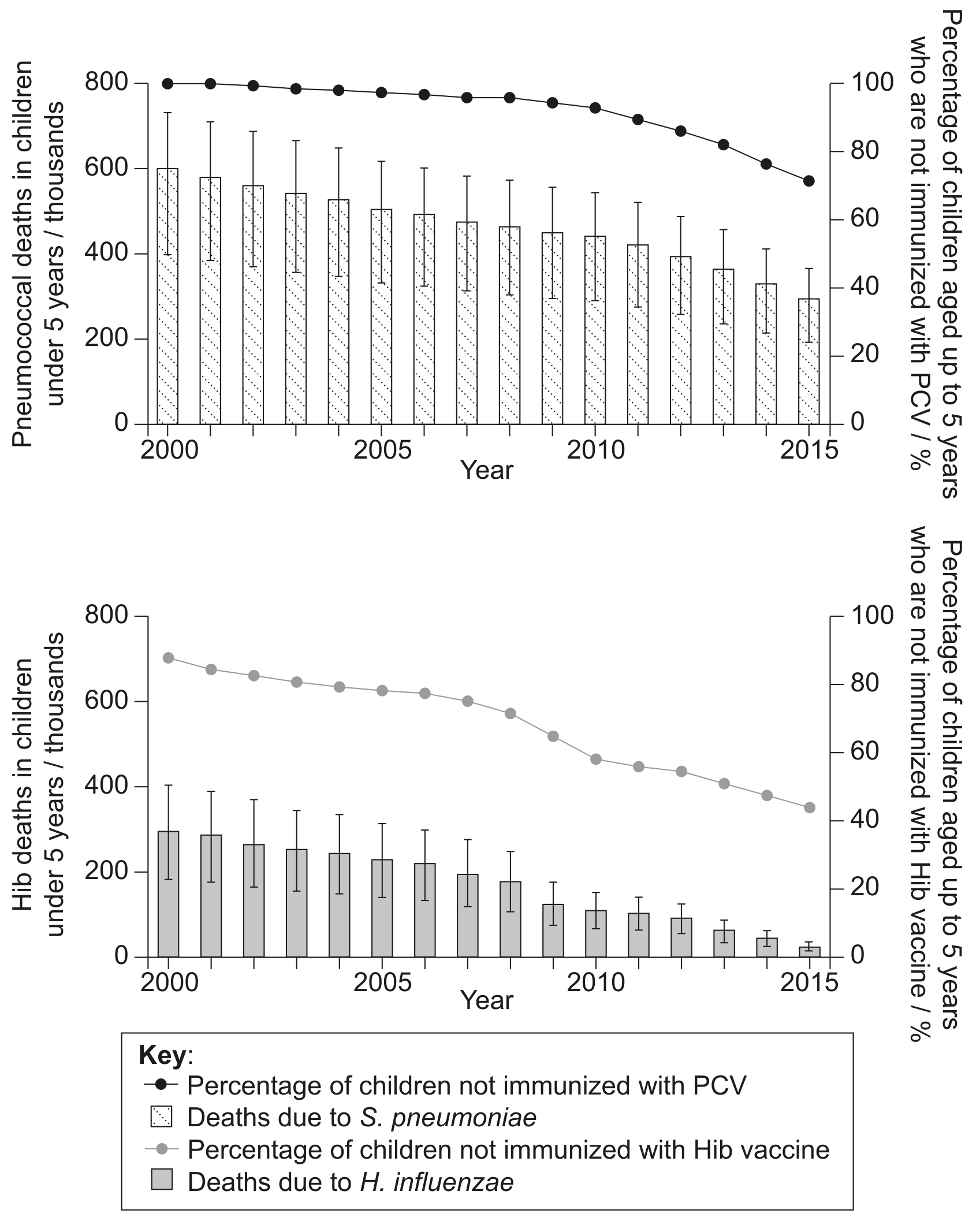

According to the UN Inter-agency Group for Child Mortality Estimation, in the year 2000 there were 9.82 million deaths of children under the age of 5 . Many of these deaths were caused by infectious diseases. The pie chart shows estimates for the percentages of deaths that were attributable to two of the most frequent pathogens, Streptococcus pneumoniae and Haemophilus influenzae.

Dementia is a term used to describe a group of symptoms that are caused by a decline in brain function. People with dementia have problems with memory, language and behaviour.

Alzheimer's disease is the most common cause of dementia. Scientists investigated the effect of a drug called donanemab on people with Alzheimer's disease. They divided them into two groups:
- The treatment group received regular injections of a solution containing donanemab.
- The control group received regular injections of a solution without donanemab.

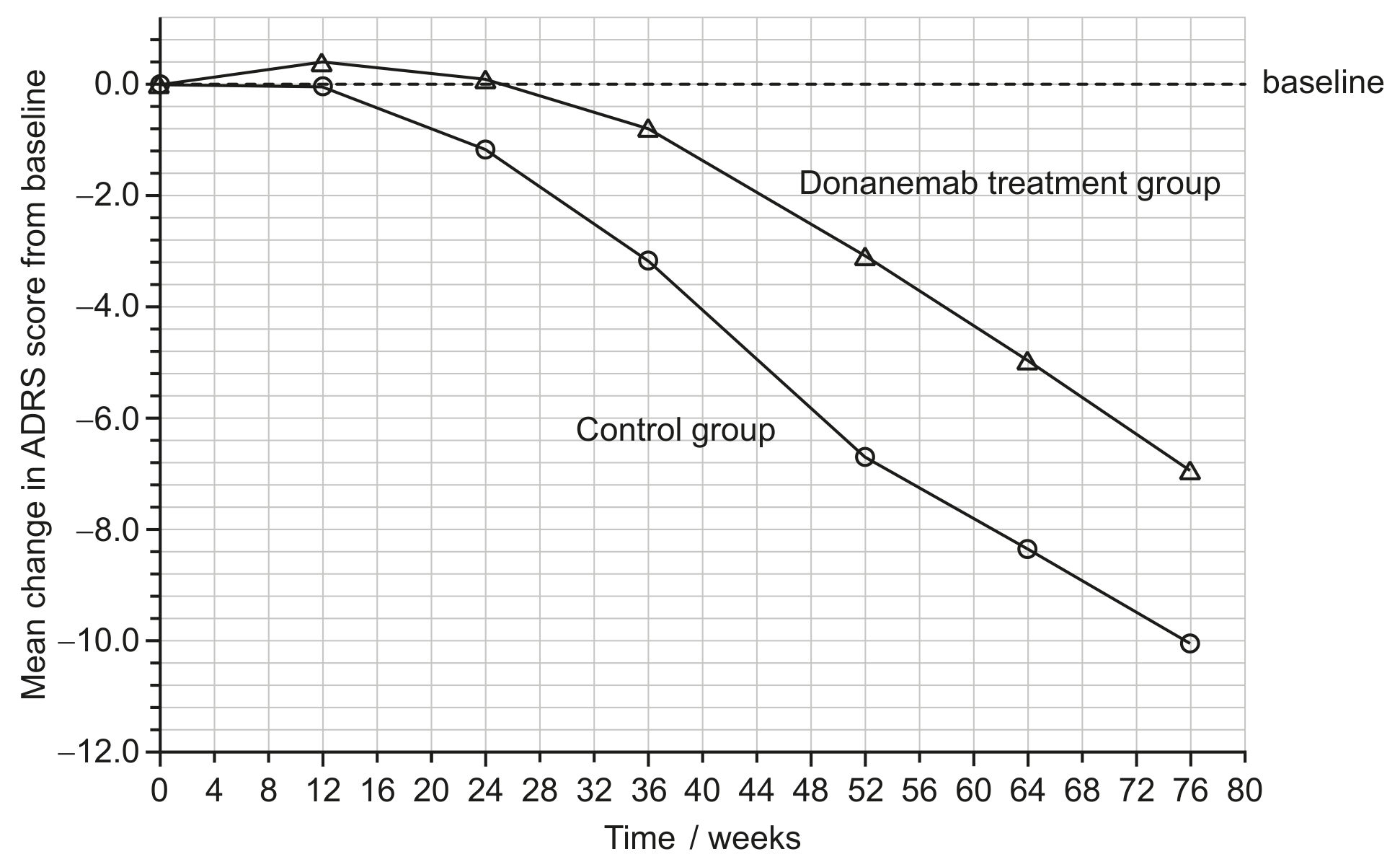

The scientists used the Alzheimer's Disease Rating Scale (ADRS) to measure brain function. The lower the score on this scale, the worse the brain function. The scientists calculated the mean ADRS score for each group at intervals over 76 weeks. They then calculated the mean change from their initial score at the start of the investigation (baseline).

Their results are shown in the graph.

The table shows the number of amino acids that are different in the sequences of the protein FOXP2 from a human compared with four other primate species.

The growth of non-pathogenic Escherichia coli bacteria were studied in a microbiology laboratory at different temperatures with the antibiotic ampicillin. The number of bacterial colonies that grew were counted, and the mean and standard deviations calculated for five replicates per temperature.

At $25^{\circ} \mathrm{C}$, the mean number of colonies counted was $70 \pm 8$. The Petri dish shows the results obtained in one of the replicates at this temperature.

The photomicrograph shows a coronary artery and a cardiac vein.

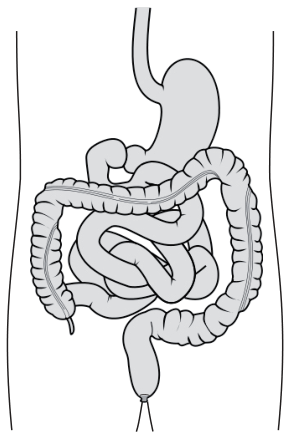

The structure of part of the digestive system is shown in the diagram below.

The figure shows a transmission electron micrograph of rotavirus particles. Each rotavirus is about 70 nanometres in diameter.
