[Maximum number: 4]

A student measures the refractive index of water by shining a light ray into a transparent container.

IO shows the direction of the normal at the point where the light is incident on the container. IX shows the direction of the light ray when the container is empty. IY shows the direction of the deviated light ray when the container is filled with water.

The angle of incidence $\theta$ is varied and the student determines the position of O, X and Y for each angle of incidence.

(top view)

The table shows the data collected by the student. The uncertainty in each measurement of length is $\pm 0.1 \mathrm{~cm}$ .

(a)

A graph of the variation of OY with OX is plotted.

[ 4 ]

(i)

Determine, using the graph, the refractive index of the water in the container for values of OX less than 6.0 cm .

[ 3 ]

(ii)

The refractive index for a material is also given by $\frac{\sin i}{\sin r}$ where i is the angle of incidence and r is the angle of refraction.

Outline why the graph on page 4 deviates from a straight line for large values of OX.

[ 1 ]

[Maximum number: 6]

This question is about diffraction and resolution.

Two identical sources of electromagnetic radiation, $\mathrm{S}_{1}$ and $\mathrm{S}_{2}$ , emit monochromatic coherent waves of wavelength $59 \mu \mathrm{~m}$ . The waves pass through a circular aperture and are incident on a screen.

$\mathrm{S}_{1}$ and $\mathrm{S}_{2}$ are at the same distance from the aperture. The diameter of the aperture is 0.18 mm . The angle between the lines joining the sources to the aperture is 0.25 rad .

(a)

$\quad \mathrm{S}_{1}$ is turned on and $\mathrm{S}_{2}$ is turned off.

[ 3 ]

(i)

On the axes below, sketch a graph to show how the intensity I of the radiation from $\mathrm{S}_{1}$ varies with the diffraction angle $\theta$ .

[ 3 ]

(b)

$\quad \mathrm{S}_{1}$ and $\mathrm{S}_{2}$ are both turned on.

[ 3 ]

(i)

State the Rayleigh criterion for the images of two sources to be just resolved.

[ 1 ]

(ii)

State and explain whether the images of the two sources, $\mathrm{S}_{1}$ and $\mathrm{S}_{2}$ , are resolved.

[ 2 ]

[Maximum number: 3]

This question is about the eye and its resolution.

A house on a hillside is viewed at night by a human eye.

(a)

The eye viewing the house has a pupil of diameter 2.5 mm . Two lamps on the wall of the house are separated by a horizontal distance of 1.5 m and produce light of average wavelength 450 nm . The eye can just resolve the images of the two lamps. Determine the distance between the house and the eye.

[ 3 ]

[Maximum number: 1]

Light of wavelength 400 nm is incident on two slits separated by $1000 \mu \mathrm{~m}$ . The interference pattern from the slits is observed from a satellite orbiting 0.4 Mm above the Earth. The distance between interference maxima as detected at the satellite is

A

0.16 Mm.

B

$0.16 \mathrm{~km}$ .

C

$0.16 \mathrm{~m}$ .

D

$0.16 \mathrm{~mm}$ .

[Maximum number: 3]

A3. This question is about resolution.

Light from two monochromatic point sources passes through a circular aperture and is observed on a screen.

The graph shows how the intensity I of the light on the screen varies with the angle $\theta$ .

The two sources are just resolved according to the Rayleigh criterion.
(a) State what is meant by resolved in this context.
(b) The wavelength of the light from the two sources is 528 nm . The distance of the two sources from the aperture is 1.60 m .

Using data from the graph opposite, determine the
(i) separation of the two sources.
(ii) diameter of the aperture.

[Maximum number: 4]

This question is about radio telescopes.
A distant galaxy emits radio waves of frequency $6.0 \times 10^{9} \mathrm{~Hz}$ and is moving with speed $6.0 \times 10^{6} \mathrm{~m} \mathrm{~s}^{-1}$ directly away from an observer on Earth.

(a)

The radio signals from two stars on opposite sides of the galaxy are detected on Earth using a radio telescope. The telescope has a circular receiving dish.

[ 4 ]

(i)

State the Rayleigh criterion for the images of two point sources to be just resolved.

[ 2 ]

(ii)

The galaxy is $2.0 \times 10^{21} \mathrm{~m}$ from Earth and the stars are separated by $5.0 \times 10^{19} \mathrm{~m}$ . Determine the minimum size of the telescope dish required to resolve the images of the two stars at a wavelength of $5.1 \times 10^{-2} \mathrm{~m}$ .

[ 2 ]

[Maximum number: 1]

A student measures the refractive index of the glass of a microscope slide.

He uses a travelling microscope to determine the position $x_{1}$ of a mark on a sheet of paper. He then places the slide over the mark and finds the position $x_{2}$ of the image of the mark when viewed through the slide. Finally, he uses the microscope to determine the position $x_{3}$ of the top of the slide.

The table shows the average results of a large number of repeated measurements.

(a)

The refractive index of the glass from which the slide is made is given by

\frac{\frac{x_{3}-x_{1}}{x_{3}-x_{2}} .}{}

Determine

[ 1 ]

(i)

the refractive index of the glass to the correct number of significant figures, ignoring any uncertainty.

[ 1 ]

[Maximum number: 3]

A group of students is investigating refraction in a semi-circular glass block.

Light from a ray box enters the curved side of the block. The light passes through the block and leaves, refracted, at P .

(a)

Outline how the students can ensure that the light is not deflected at the curved surface.

[ 1 ]

(b)

(i)

Determine the value of the refractive index of the glass with its absolute uncertainty.

[ 2 ]

[Maximum number: 6]

C1. This question is about digital devices.
(a) Both a CD and a long playing record (LP) are used to store and reproduce musical sounds.

Outline the difference between these two methods of storing musical sounds.

CD:

LP:
(b) In a particular CD, the wavelength of the laser light used to retrieve the musical sounds stored is 720 nm .

Determine, explaining your answer, the depth d of a pit on the surface of the CD.
(c) A charge-coupled device (CCD), unlike an audio CD, stores optical images. The surface of a CCD is divided into small regions called pixels. Each pixel behaves like a capacitor with capacitance C.
(i) Define capacitance.
(ii) A pixel of a particular CCD has capacitance C=20 pF and a quantum efficiency of 80 %. The pixel is illuminated with light for a short period of time, such that the electric potential of the pixel changes by 0.18 mV .

Estimate the number of photons incident on the pixel in this time period.

[Maximum number: 8]

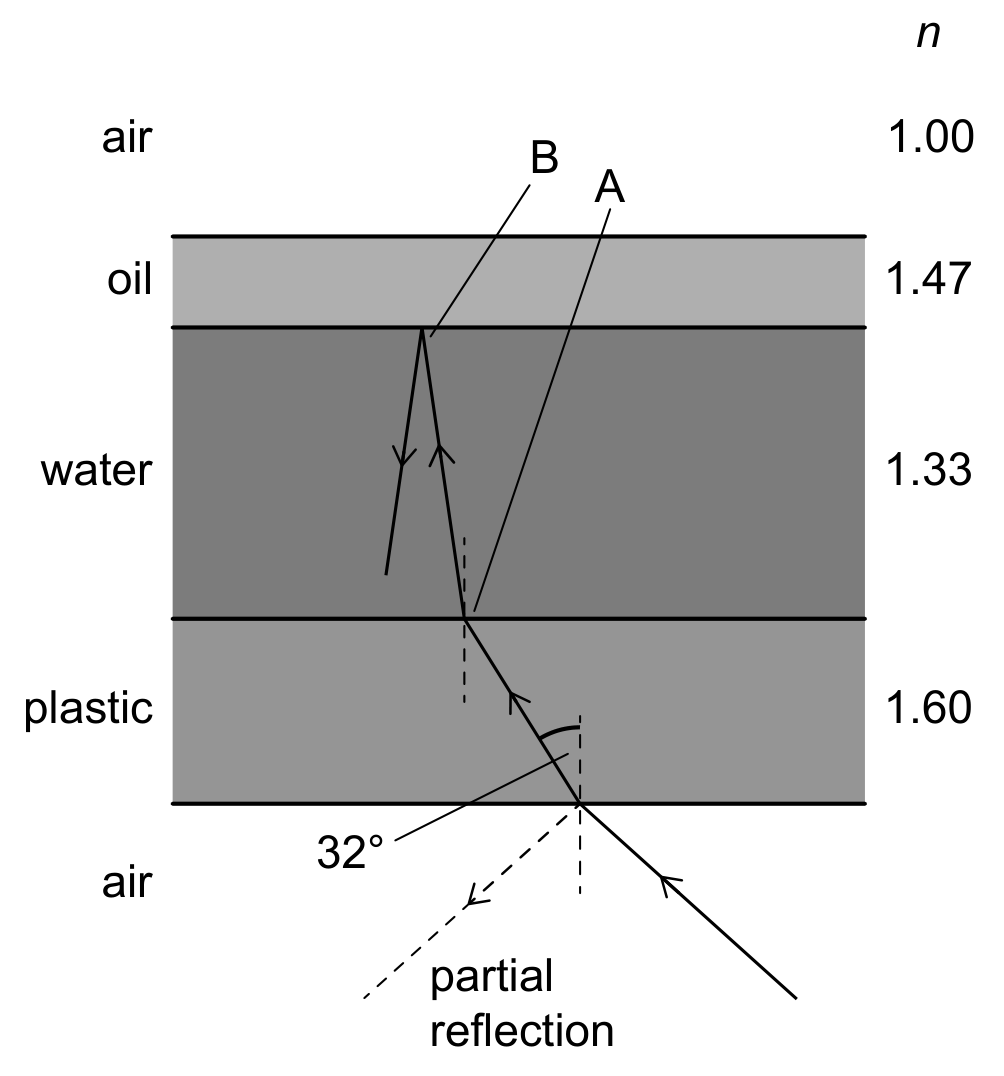

Monochromatic light enters the base of a plastic beaker that contains water with an oil layer floating on it. A student draws a diagram to show the directions the light takes as it passes through the layers. The student's diagram has one error at position A and one error at position B. The refractive indices of the materials are shown on the diagram.

The light is refracted at an angle of $32^{\circ}$ when it enters the plastic layer as shown.

(a)

Identify, with a reason, the error in the student's diagram for

[ 4 ]

(i)

light crossing the plastic-water interface (position A).

[ 2 ]

(ii)

light at the water-oil interface (position B).

[ 2 ]

(b)

Calculate the angle of incidence at the air-plastic interface.

[ 2 ]

(c)

Calculate the critical angle for the plastic-water interface.

[ 2 ]
