IB Biology HL 2.1.11 Tyrosine kinase receptors Question Bank

Practise IB Biology HL 2.1.11 by applying tyrosine kinase receptors concepts to exam-style questions.

Exam points

identify the relevant biological structure, process or evidence
apply the correct biological mechanism to the question
evaluate the result using data, adaptation or ecological reasoning

[Maximum number: 2]

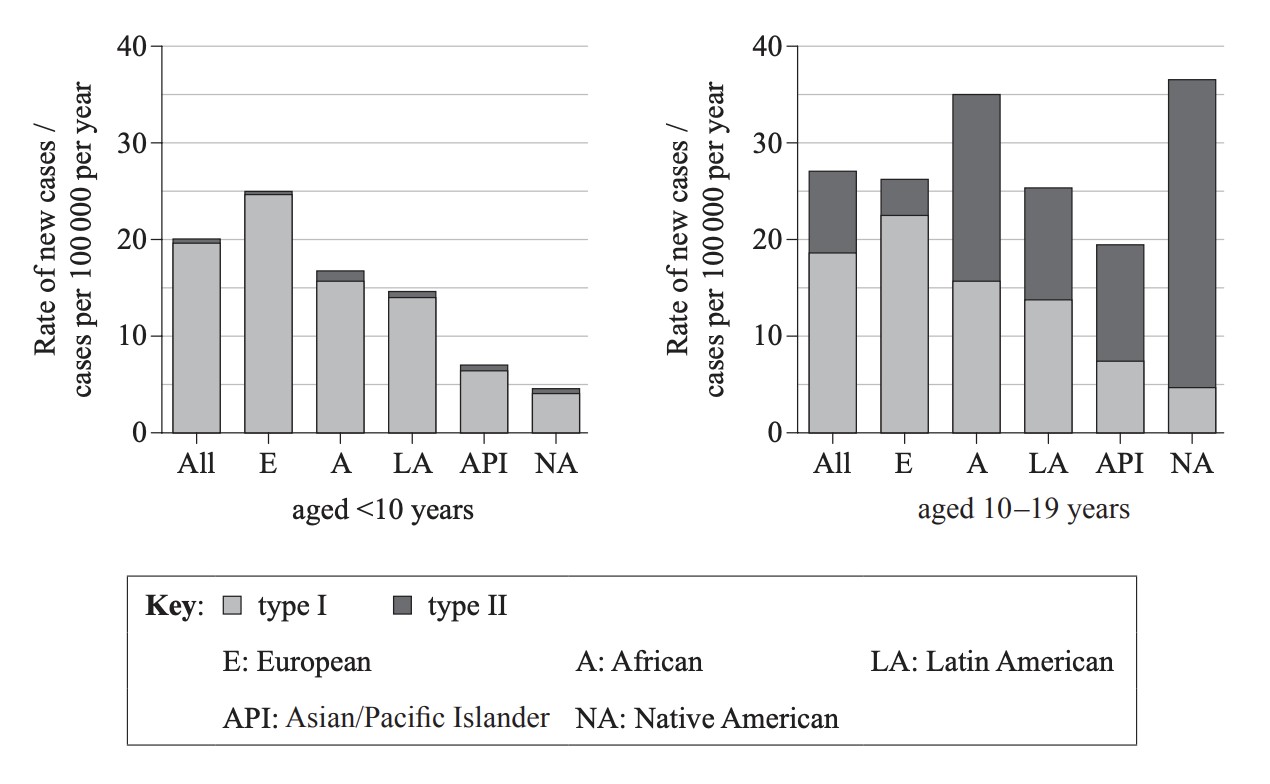

Diabetes in Youth is a study that examined diabetes (type I and type II) among children and adolescents in the United States. The graphs show the rate per year of new cases of type I and type II diabetes among young people (aged less than 20 years) by ethnicity between 2002-2005.

Figure for Question C2.1.11 (HL)—Tyrosine kinase receptors question 1 — IB Biology HL

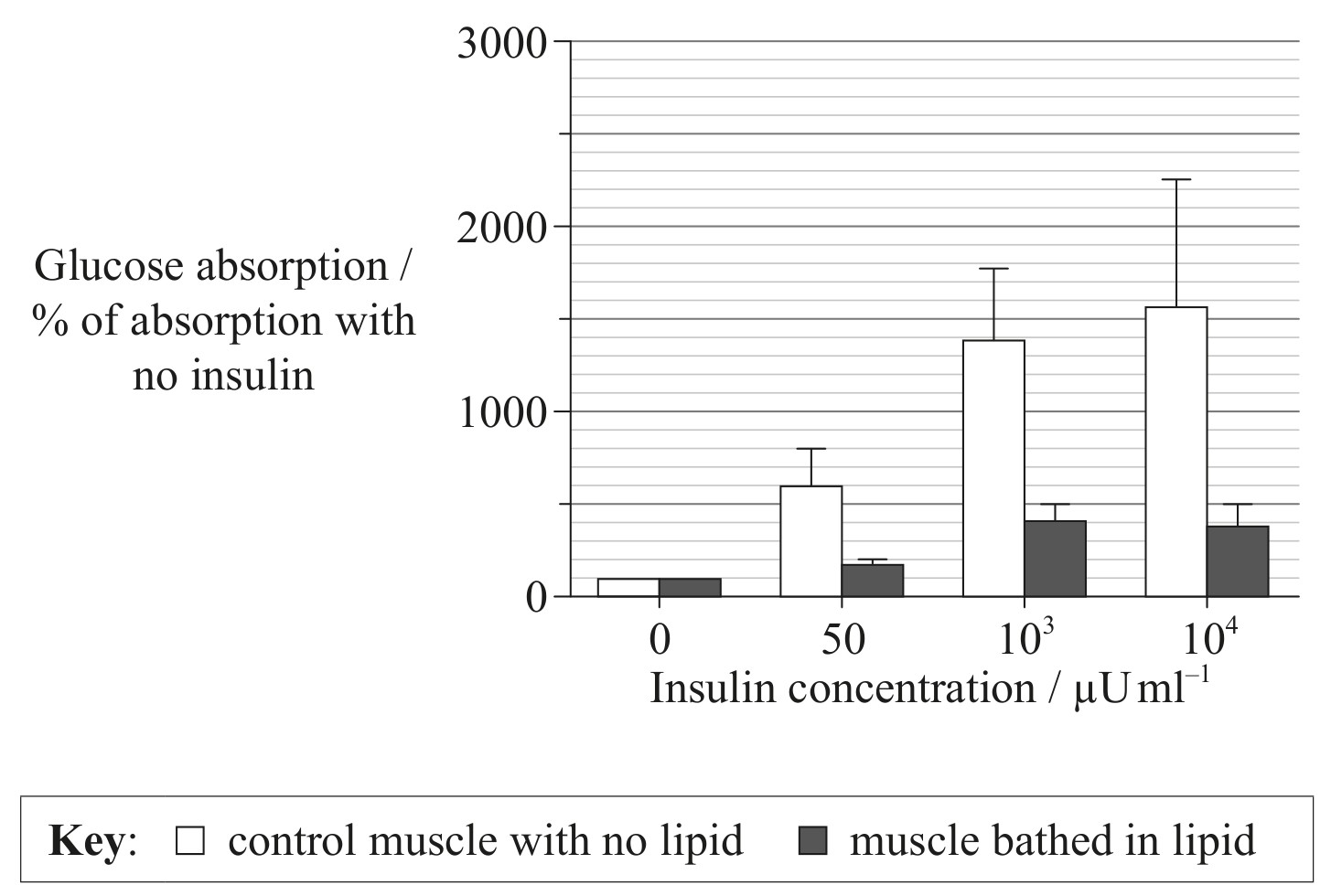

A further study was undertaken to look at the effect of increasing the concentration of insulin on glucose absorption in muscle bathed in lipids. A wide range of insulin concentrations were used in the same type of muscle. Glucose absorption was then measured after 5 hours.

Comment on the effect of increased insulin concentration on glucose absorption in the muscle bathed in lipid.

increased insulin concentration causes more glucose absorption (up to $10^{3} \mu \mathrm{U} \mathrm{ml}^{-1}$ ); glucose absorption in muscle bathed in lipid always less than control; no further increase/slight decrease in glucose absorption beyond $10^{3}\left(\mu \mathrm{U} \mathrm{ml}^{-1}\right)$ insulin;

All question bank results loaded

C2.1.11 (HL)—Tyrosine kinase receptors question 1
