Edexcel IGCSE Physics 2.10 Resistance & current
Practise predicting how current changes when resistance changes, using circuit diagrams and the qualitative meaning of V = IR.
- Syllabus
- First assessment 2019
- Course
- Physics 4PH1
Exam points
- explain why adding resistors in series increases total resistance and reduces current
- predict the current change when an LDR or resistor has a lower resistance
2.10 Resistance and current question 1
The circuit diagram shows a light dependent resistor (LDR) and a resistor connected in series with a 1.5 V cell.

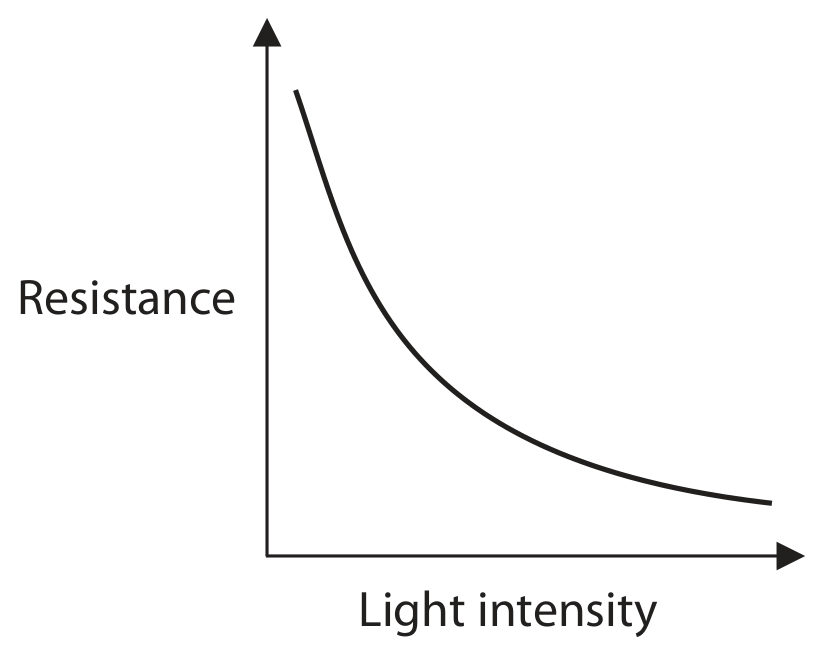

The graph shows how the resistance of the LDR changes with light intensity.
The resistance of the LDR decreases.
State the effect on the current in the circuit.
