CAIE IGCSE Biology 19.4.6 Interpret Graphs and Diagrams Questions

Practise describing trends, comparing populations and calculating changes from graphs, tables and growth diagrams.

Syllabus
2026–2028
Course
Biology 0610

Exam points

  • describe population trends and support comparisons with accurate graph values
  • calculate percentage changes and population doubling or halving times from data, following rounding instructions
  • infer a plausible population event from a graph only when its trend and context support the inference

CAIE IGCSE Biology 19.4.6 Interpret Graphs and Diagrams Questions question 1

[Maximum number: 1]

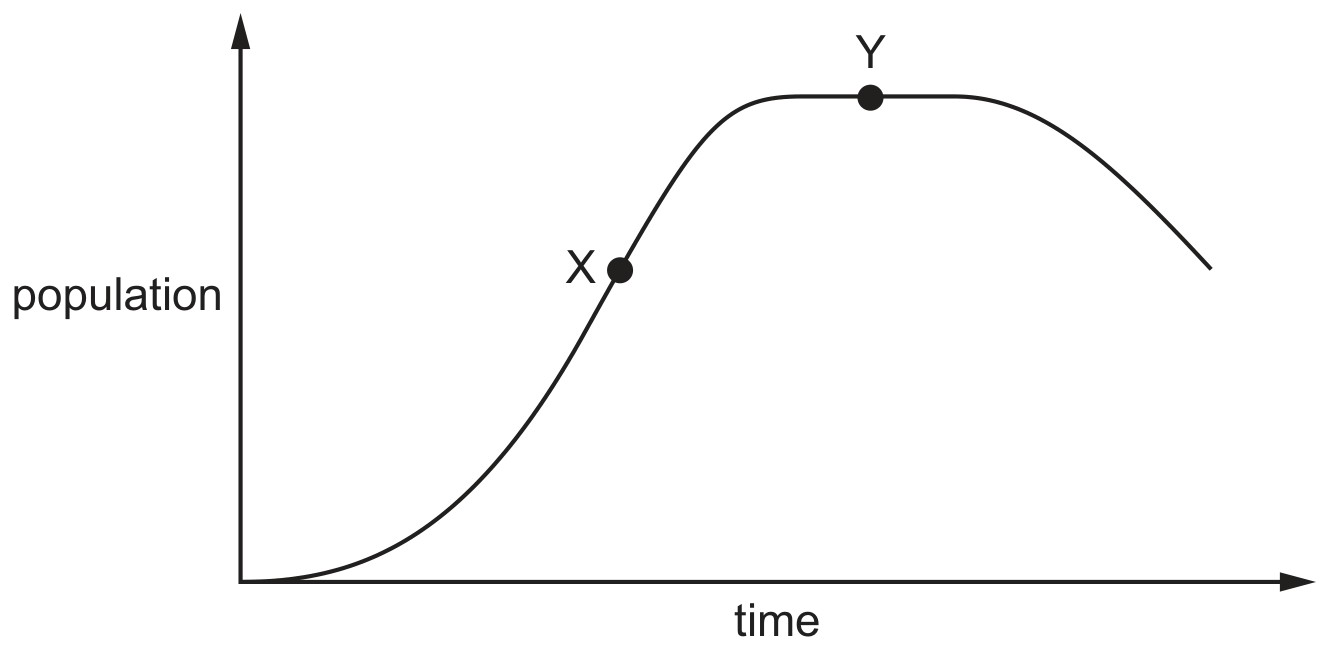

The graph shows the growth of a population of rabbits in one area.

Figure for Question CAIE IGCSE Biology 19.4.6 Interpret Graphs and Diagrams Questions question 1 — CAIE IGCSE Biology

Which statements are correct?
1 At X, the birth rate is higher than the death rate.
2 At X, there are no deaths and the population is limited by a lack of food.
3 At Y , the birth rate and death rate are equal.

A

1 and 2

B

1 and 3

C

1 only

D

2 only
