Edexcel A-Level Biology A2 8 Coordination Response and Gene Technology Questions

Many predatory animals produce toxins to disable their prey. Some of these toxins inhibit nervous communication.

Motility is produced in the ENS through a reflex circuit involving the circular and longitudinal muscles. Nicotinic synapses between interneurons mediate the reflex circuits. When the circuit activates by the presence of a bolus, excitatory neurons in the circular muscle and inhibitory neurons in the longitudinal muscle fire producing a narrow section of bowel proximal to the bolus; this is known as the propulsive segment. Simultaneously, excitatory neurons in the longitudinal muscle and inhibitory neurons in the circular muscle fire producing the "receiving segment" of the bowel in which the bolus will continue. This process repeats with each subsequent section of the bowel.

Whales are large mammals.
The photograph shows a beluga whale and a human diver.

Many predatory animals produce toxins to disable their prey. Some of these toxins inhibit nervous communication.

Nerve impulses are transmitted along axons. Some axons are myelinated.

Which type of cell produces myelin?

Whales are large mammals.
The photograph shows a beluga whale and a human diver.

A beluga whale can respond to a stimulus using a spinal reflex arc.

Which row is correct?

Many predatory animals produce toxins to disable their prey. Some of these toxins inhibit nervous communication.

Nerve impulses are transmitted along axons. Some axons are myelinated.

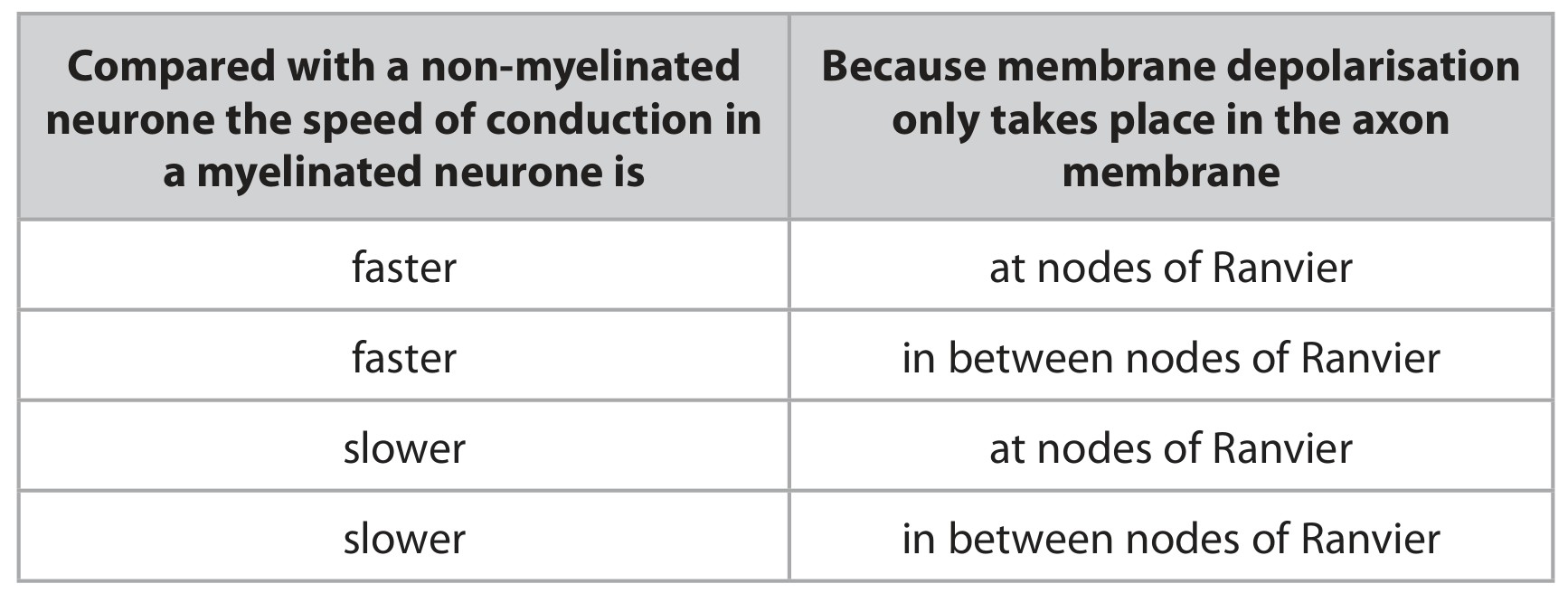

Which row correctly compares the conduction of an impulse along a myelinated neurone with conduction along a non-myelinated neurone?
□ A
□ B

The photograph shows the eyes of a meerkat.

Describe how the pupil of an eye dilates and contracts in response to changes in light intensity.

The photograph shows the eyes of a meerkat.

Photoreceptors stimulate nerve transmission in the eye.

Which of these drugs would increase nerve transmission?

The photograph shows the eyes of a meerkat.

Photoreceptors stimulate nerve transmission in the eye.

Which of the following pairs of molecules forms the photoreceptor in an eye?

Whales are large mammals.
The photograph shows a beluga whale and a human diver.

A beluga whale can become habituated to human divers.

How many of the following statements about habituation are correct?
- habituation is an example of anatomical adaptation
- habituation is only observed in mammals
- habituation only occurs after repeated exposure to the same stimulus
- A 0
□ B 1
□ C 2
□ D 3

Animals and plants can detect and respond to light.

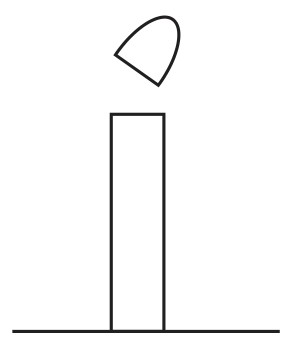

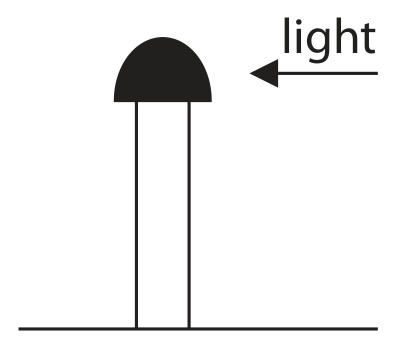

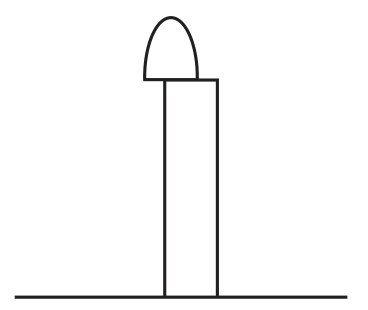

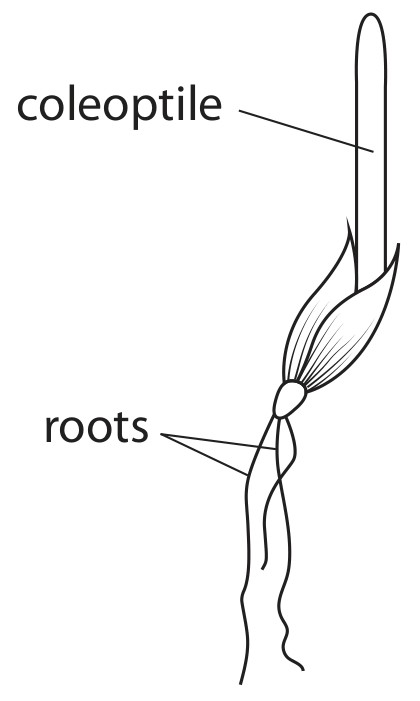

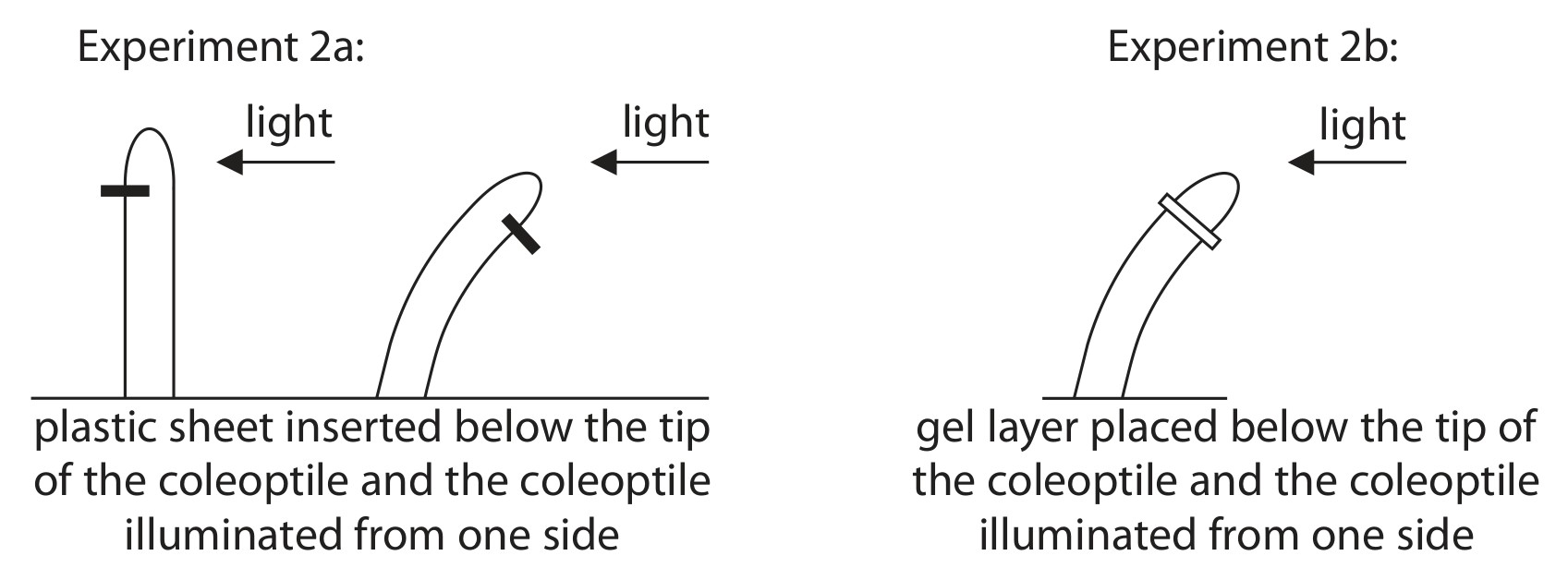

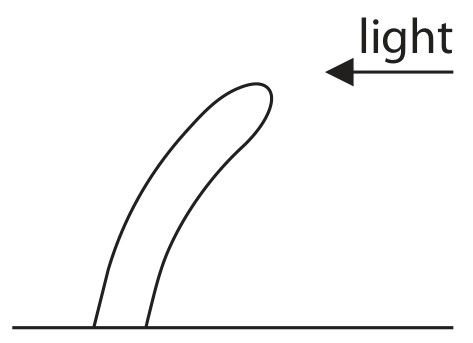

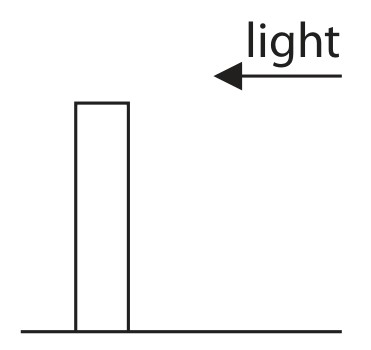

The drawing shows the results of some experiments investigating phototropisms. The diagram shows a coleoptile of a seedling.

Experiment 3:

Scientists concluded that these results suggest a plant growth substance is involved in regulating the phototropic response.

Discuss how the results of these experiments support the role of a plant growth substance in the phototropic response of plants.

Use the information for these experiments and your own knowledge to support your answer.

Due to the expansive nature of the vagus nerve, it has been described as an ideal "early warning system" for foreign invaders as well as for monitoring the body's recovery. Up to 80% of vagal fibers are sensory and innervate nearly all major organs. Parasympathetic ganglia have been found to express receptors for interleukin-1, a key cytokine in the inflammatory immune response. This, in turn, activates the hypothalamic-pituitary-adrenal axis and SNS, leading to the release of glucocorticoids and NE, respectively.

Postural Orthostatic Tachycardia Syndrome (POTS): A Diagnostic Dilemma

POTS is defined as orthostatic intolerance associated with tachycardia exceeding 120 beats per minute or an increase in the heart rate of 30 beats per minute from baseline within 10 minutes of changing the posture from a lying to standing position, in the absence of long-term chronic diseases and medications that affect the autonomic or vascular tone. There is no drop in blood pressure; it may even rise in the upright posture. Patients experience symptoms such as headache, nausea, tremors, sweating, palpitation and near syncope. Symptoms always occur in the upright posture and disappear on lying down. POTS was first described in 1940, and it is considered one of the common conditions in young females. It occurs most commonly between the ages of 12 and 50 years with a male to female ratio of one: five. The underlying pathophysiological mechanism is assumed to be failure of peripheral vascular resistance to increase sufficiently in response to orthostatic stress, and, consequently, venous pooling occurs in the legs resulting in decreased venous return to the heart. This is compensated for by an increase in heart rate and inotropy.

Box 1

Enteric Nervous System

The brain is responsible for processing information and coordinating responses.

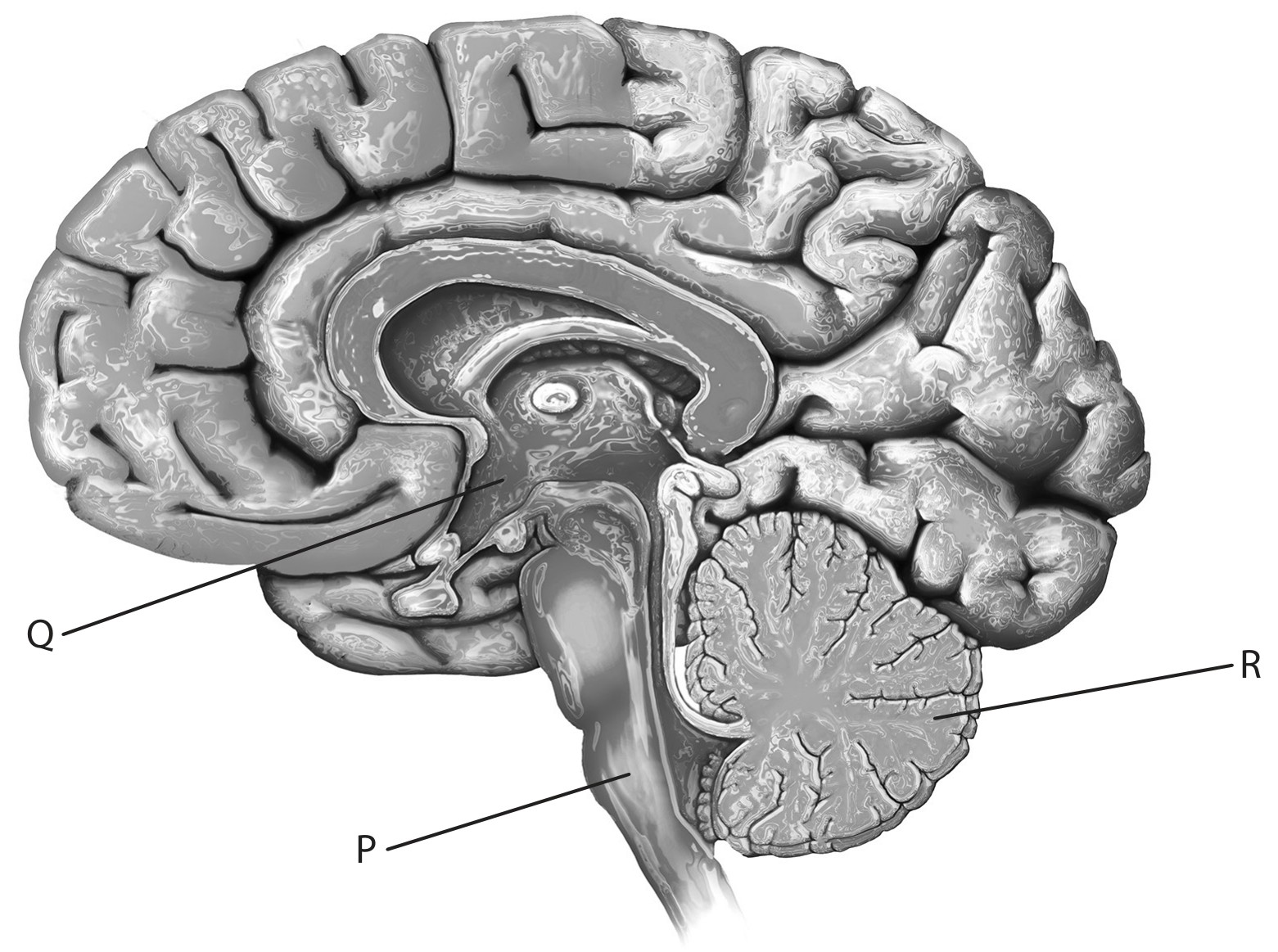

The diagram shows a human brain.

Three regions of the brain have been labelled.

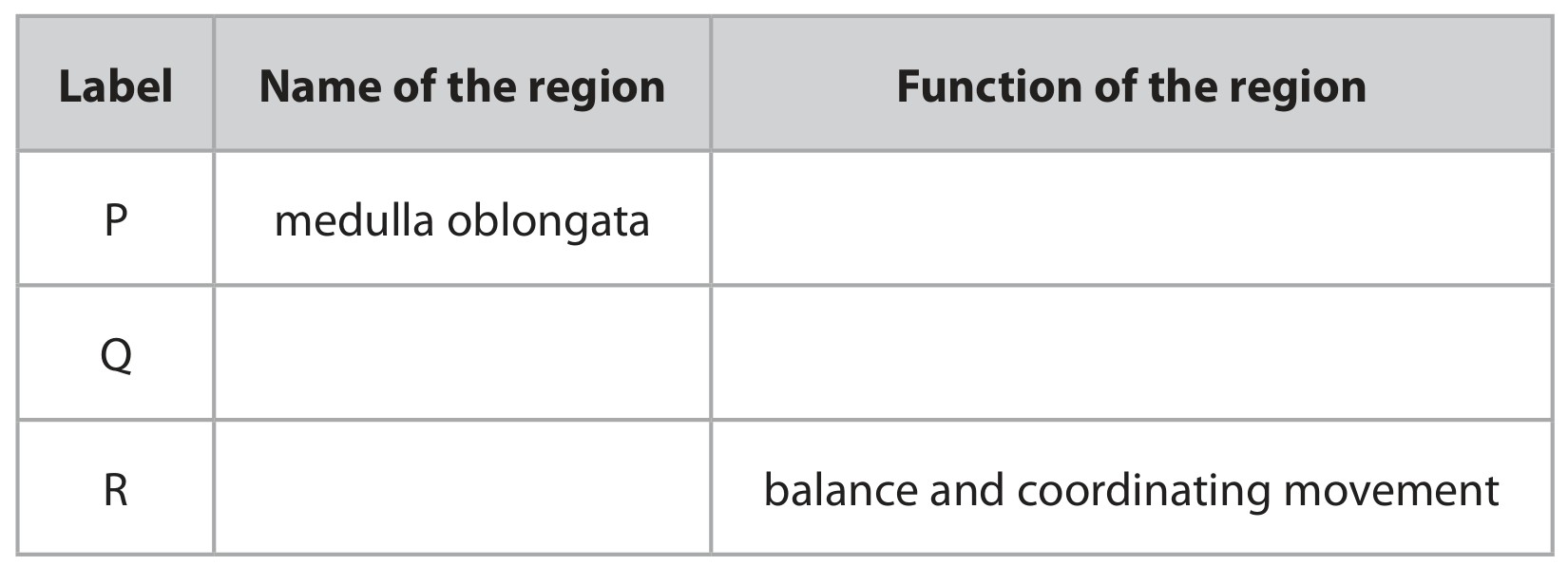

Complete the table with the name and function of each region.

The brain is responsible for processing information and coordinating responses.

Parkinson's disease occurs when dopamine-producing neurones die.

The most obvious motor symptoms of Parkinson's disease include muscle tremors and muscle rigidity.

These motor symptoms are linked to the loss of dopamine-producing neurones in the brain.

Explain why the release of reduced quantities of dopamine by presynaptic neurones could result in motor symptoms.

Small variations in DNA sequences and activation of genes can explain why individuals respond differently to diseases and the drugs used to treat them.

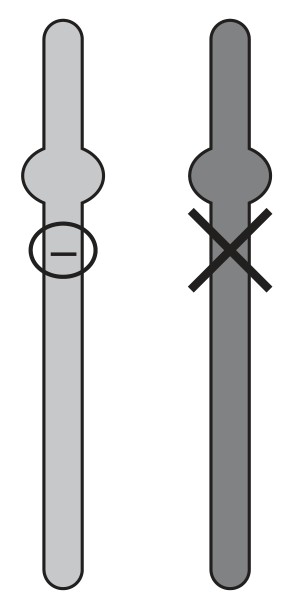

Prader-Willi syndrome is an inherited genetic disorder that involves changes on chromosome 15. The chromosome inherited from the father has genetic deletions. The chromosome inherited from the mother has DNA methylated bases. The diagram shows these chromosomes for an individual with Prader-Willi syndrome. region of DNA methylation

region of genetic deletion

The symptoms of Prader-Willi syndrome can be treated using human growth hormone (HGH). This hormone is a protein produced by the pituitary gland.

Describe how Escherichia coli bacteria can be used to produce human growth hormone.

Gel electrophoresis is used to separate DNA fragments of different lengths.
The rate at which the DNA fragments move through the gel depends on several factors including:
- molecular size of the DNA fragment
- shape of the DNA fragment
- concentration of the gel.

Alpha-1 antitrypsin (AAT) deficiency is an inherited disease that can affect different organ systems.

Alpha-1 antitrypsin (AAT) is a protein produced in the liver.

One potential treatment for AAT deficiency uses adenoviruses to genetically modify cells in an affected person.

Adenoviruses contain double-stranded DNA.
Explain how adenoviruses can be used to treat AAT deficiency in a person.

Small variations in DNA sequences and activation of genes can explain why individuals respond differently to diseases and the drugs used to treat them.

Describe how active genes could be identified.

The scientific document you have studied is adapted from an article in Science Direct: Assessment of food toxicology by Alexander Gosslau.

Use the information from the scientific article and your own knowledge to answer the following questions.

Scientific article for use with Question 8

Assessment of food toxicology by Alexander Gosslau
1. The history of food toxicity might have started as early as Hippocrates made the statement "Let food be thy medicine and medicine thy food" which presaged the modern science by over two millennia ago. With the development of modern biochemistry, molecular biology, cell culture techniques, computer science and bioinformatics, it has been possible to identify and characterize potential toxicants in food.
2. There are two different related areas in the measurement of toxicants and toxicity in food: (1) actual measurements of the effects of toxicants in different models ranging from in vitro biochemical systems, cell-based in vitro systems, animal in vivo models to clinical settings analyzing systemic or organ-specific toxicity and (2) assessment and/or predictions of potential toxicants in food.
3. The mechanisms of toxicant effects are multifactorial interacting intrinsically and extrinsically with key molecules which play major roles in cell integrity, metabolism, signaling pathways, gene expression and translation. For a variety of toxicants their effects appear to converge on the generation of electrophilic species (ES) leading to oxidative stress and chronic inflammation. Oxidative reactions induced by toxicants lead to an accumulation of damaged macromolecules thus harming cells, tissues and organs. Therefore, toxicants may play central roles in cell death, chronic inflammation, aging and degenerative diseases such as Alzheimer's, Parkinson's and Huntington's diseases, as well as multiple sclerosis, myocardial infarction, arteriosclerosis, diabetes, rheumatoid arthritis, sterility, cataracts and many others.
4. For in vitro assessment a variety of biochemical systems have been developed to analyze damaging effects on integrity or activity of key biomolecules. Such molecules are important in cell integrity, metabolism, signaling pathways, as well as gene expression and translation. The list of affected molecules is extensive and includes enzymes, receptors, membrane lipids, nucleic acids and/or factors involved in gene expression. On a cellular level, a variety of viability assays are routinely used to quantify effects of potential food toxicants for extrapolation of a range of dosages used for maximal tolerated concentrations for in vivo animal models and also clinical settings. In vivo rodent models still appear to be the gold standard for toxicity assessment but there are limitations of such traditional testing such as high costs, low throughput readouts, inconsistent responses, ethical issues and concerns of extrapolability to humans.
5. Another refinement in toxicity assessment is the installation of alternative lower hierarchy surrogate animal models such as zebrafish (Danio rerio), fruit flies (Drosophila melanogaster) or nematodes (Caenorhabditis elegans). These models offer an advantage in terms of ethical concerns, high throughput and genetic manipulation over traditional rodent models. The value of using alternative sub-mammalian vertebrate and invertebrate models became evident by the surprising discovery of the high degree of homology of genes between humans and zebrafish, fruit flies or nematodes.
6. Although the mechanisms leading to toxic effects in humans are multifactorial, the majority of toxic effects appear to converge on the generation of free radicals. Different electrophilic species (ES) such as reactive oxygen species (ROS) or reactive nitrogen species (RNS) are capable of oxidizing virtually all biomolecules. Whereas a variety of toxicants generate ES directly, others induce a secondary response leading indirectly to generation of ES by immunocompetent leukocytes which play a key role in the inflammatory cascade. ES are also involved in the modulation of gene expression by interfering with transcription factors and/or DNA which can lead to mutations and carcinogenesis. The accumulation of damage to membrane lipids, cellular proteins, carbohydrates as well as nucleic acids harm the functioning of cells, tissues and organs. These and other observations strengthen the hypothesis that toxicants leading to oxidative stress and chronic inflammation play central roles in cell death, aging and degenerative diseases.
7. The oxidation of lipids, proteins, nucleic acids and carbohydrates generate a variety of damaging breakdown products which thus can lead to the onset of many degenerative diseases. Lipid peroxidation of cell structures containing lipids can lead to the generation of different toxic products including alcohols, ketones, alkanes, aldehydes and ethers which have the potential to contribute to cell damage, necrosis or apoptosis. Nucleic acids are delicate targets of ES leading to mutations. Damage of nucleic acids by ES may result in single and double strand breaks, DNA-DNA, DNA-protein, DNA-lipid adducts or numerous base modifications. Mitochondrial DNA (mtDNA) is particularly susceptible to oxidative damage because of the absence of associated histones, an incomplete mitochondrial DNA repair system and the generation of free radicals through electron leakage from the respiratory chain.
8. Testing whether a chemical can modulate the activity of particular enzyme or binding affinities to a particular receptor or other biomolecule is the most direct way to gain mechanistic insights into action at the molecular level. There are different biochemical in vitro assays which analyze the integrity or mutation of DNA and RNA, membrane lipids, as well as the binding and activity of various receptors, enzymes involved in signaling transduction, drug or neurotransmitter metabolism and many others.
9. The use of cellular models provides a much higher level of complexity than simple biochemical assays. A huge number of human cell lines are available and a variety of different cell-based in vitro assays have been developed for screening of food toxicants.
10. For general assessment of cytotoxicity an indirect measure of cell viability is usually performed and several cellular bioassays are routinely used integrating different cytotoxicity endpoints such as membrane leakage or cellular activity. Whereas the trypan blue, propidium iodide, crystal violet or lactate dehydrogenase assays are analyzing membrane integrity based on exclusion, other viability assays such as the neutral red, alamar blue or MTT assay are metabolic measures of cellular activity. Inhibitory concentrations (IC values) obtained by viability assays are then used for initial dose selection in testing on animals and humans.

In addition to the measurement of dyes, activity analysis of enzymes is also an established technique used to determine membrane integrity. Leakage of intracellular enzymes such as lactate dehydrogenase (LDH) or others into the extracellular medium is thus employed as indicator of cell membrane damage.

Damage of mitochondria is a major contributor to organ toxicity, such as of the liver, kidney, heart, muscle and the central nervous system, and mitochondrial dysfunction is increasingly implicated in a growing list of degenerative diseases.
11. Recently, stem cell-based assays are being discussed as source for various toxicological applications thanks to the Nobel Prize-winning discovery of how to reprogram ordinary somatic cells to behave like embryonic stem cells. Human-induced pluripotent stem cells (iPSCs) allow assays to consider an individual's genetic background and potential epigenetic influences that affect the variability of the toxicity response. Stem cell-based models are also of particular interest for toxicity measurements which either lack extrapolability in rodent models such as for genotoxicity, cardiotoxicity, respiratory toxicity or for different stages of disorders which largely remain unknown such as neurological disorders (depression, anxiety, Alzheimer's and Parkinson's disease), autoimmune diseases (multiple sclerosis, type I diabetes, asthma), systemic infection, cancer and others.
12. While complex cell culture systems can provide unique insights into in vivo toxicology, they will never completely model the higher level interactions present in an intact organism. Therefore, the gold standard for toxicity assessment has been in vivo toxicology, where a particular molecule or complex food ingredients are given to animals to evaluate acute, subacute and chronic effects.
13. The majority of animals used are rodents and to derive statistically significant results the numbers of animals needed for testing are enormous with an estimation of 7000 animals and tens of millions of dollars for each test compound in the pharmaceutical industry. Although the numbers of animals involved in food toxicity screening are decreasing, the numbers of compounds or food ingredients to be tested as well as the costs of the current in vivo assessment systems are exploding.
14. More recently, the zebrafish D. rerio has been used as a vertebrate model organism for a wide variety of research including drug discovery and toxicology. The increased usage of zebrafish as in vivo model system reflects the striking similiar toxicity profile between humans and zebrafish due to substantial physiological, anatomic and genetic homology. The zebrafish model is also amenable to gene manipulation, is low in cost, has a short generation time and is particularly well suited for high-throughput screening as well as microarray and proteomic studies. Since zebrafish larvae are transparent they are ideal for studies on organ morphology by in vivo imaging techniques in addition to more detailed studies by immunohistochemistry or in situ hybridization.
15. Toxicity assessment in humans involves different fields such as clinical, forensic, environmental and regulatory toxicology. A systemic determination of toxicants in body tissues is usually obtained by biopsy or by analyzing body fluids such as blood and urine.
16. A great deal of knowledge on toxicity in humans has been obtained by post mortem molecular and anatomic analysis of cells, tissues and organs. Forensic toxicology is very related to toxicologic pathology but focusing more on the application to the purposes of the law. By virtue of advances in nanotechnology and its application in food industry, the newly created discipline of nanotoxicology investigates safety or potential hazards of nanoparticles. Another dimension refers to genetically modified organisms (GMO) or genetically modified food (GMF) as potential sources of toxicity. All the different disciplines of toxicity assessment in humans are not mutually exclusive but rather highly interconnected. The goal is to identify and understand the molecular mechanisms of toxicants causing adverse effects in order to ultimately prevent their intake thus increasing food safety.

Explain how scientists could determine the high degree of homology of genes between humans and zebrafish (paragraph 5).

Insulin is a peptide hormone produced by the pancreas. Insulin plays a crucial role in regulating blood glucose levels and maintaining homeostasis in the body.

Diabetes is a disease that affects millions of people across the world. Human insulin is a small molecule that consists of two polypeptide chains linked by disulfide bridges. Insulin from animals can be used to treat diabetes. Human insulin can now be synthesised using genetically modified bacteria.

Suggest two advantages of producing human insulin using genetically modified bacteria compared with insulin produced from animals.
