Edexcel IGCSE Physics 6.4 Magnetic field lines
Practise drawing and interpreting magnetic field lines around bar magnets, including arrow direction, spacing and field strength near poles.
- Syllabus
- First assessment 2019
- Course
- Physics 4PH1
Exam points
- draw field-line loops around a bar magnet with arrows running from north to south
- use line spacing on a magnetic field diagram to explain where the field is strongest
6.4 Magnetic field lines question 1
The region of space around a magnet is known as a magnetic field.

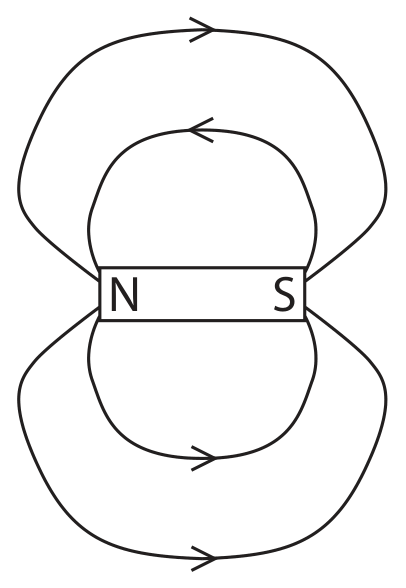

Which of these diagrams correctly represents the magnetic field around a bar magnet?
A
B
C
D
