IB Physics HL E.1.5 Photon energy Question Bank

Practise IB Physics SL/HL E.1.5 by applying photon energy concepts to exam-style physics questions.

Exam points

identify the relevant physical quantity, model or diagram
apply the correct equation and units to the evidence
justify the result using conservation laws, fields or energy relationships

[Maximum number: 2]

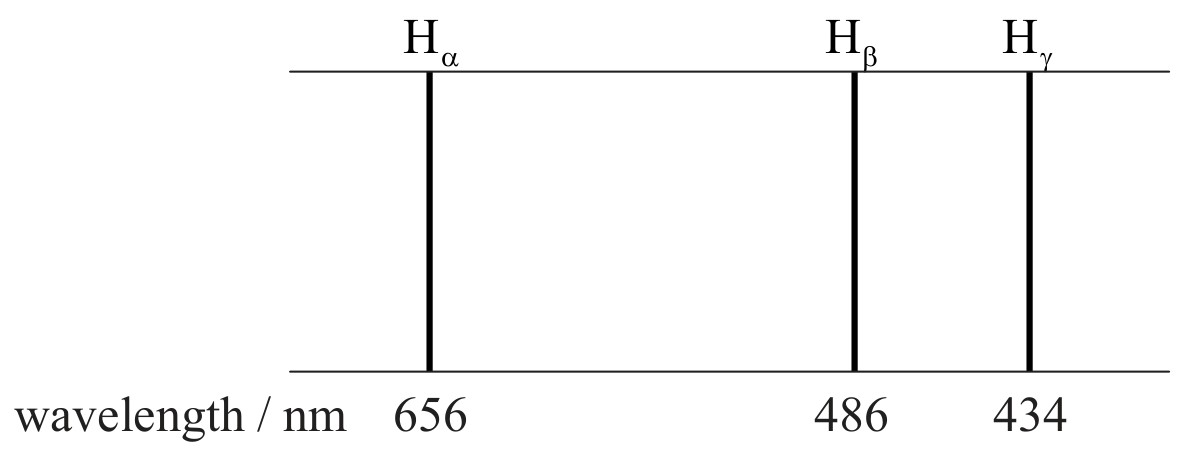

The diagram represents the three principal spectral lines in the visible region of the spectrum of atomic hydrogen.

Figure for Question E.1.5—Photon energy question 1 — IB Physics HL

The electron in the hydrogen atom can only occupy certain allowed energy levels.

Determine the difference in energy between the two levels from which electron transitions give rise to the $\mathrm{H}_{\alpha}$ and $\mathrm{H}_{\gamma}$ spectral lines respectively.

difference in energy $=hc\left[\frac{1}{\lambda_{\gamma}}-\frac{1}{\lambda_{\alpha}}\right]$ ;
$=6.6 \times 10^{-34} \times 3 \times 10^{8} \times 10^{7} \times 0.0780=1.54 \times 10^{-19} \mathrm{~J}$ ;

or

$E_{\alpha}=\frac{hc}{\lambda_{\alpha}}=3.02 \times 10^{-19} \mathrm{~J}$ or $1.89 \mathrm{~eV}$ ;
$E_{\gamma}=\frac{hc}{\lambda_{\gamma}}=4.56 \times 10^{-19} \mathrm{~J}$ or $2.85 \mathrm{~eV}$ ;
difference in energy $=1.54 \times 10^{-19} \mathrm{~J}$ or $0.963 \mathrm{~eV}$ ;

All question bank results loaded

E.1.5—Photon energy question 1
