D2.3 Water potential
Water potential explains osmosis, solute effects, plant tissue changes, cell swelling, plasmolysis and isotonic medical conditions in living systems and cells.
- Syllabus
- First assessment 2025
- Topic
- D2.3
- Level
- SL
Water potential explains osmosis, solute effects, plant tissue changes, cell swelling, plasmolysis and isotonic medical conditions in living systems and cells.

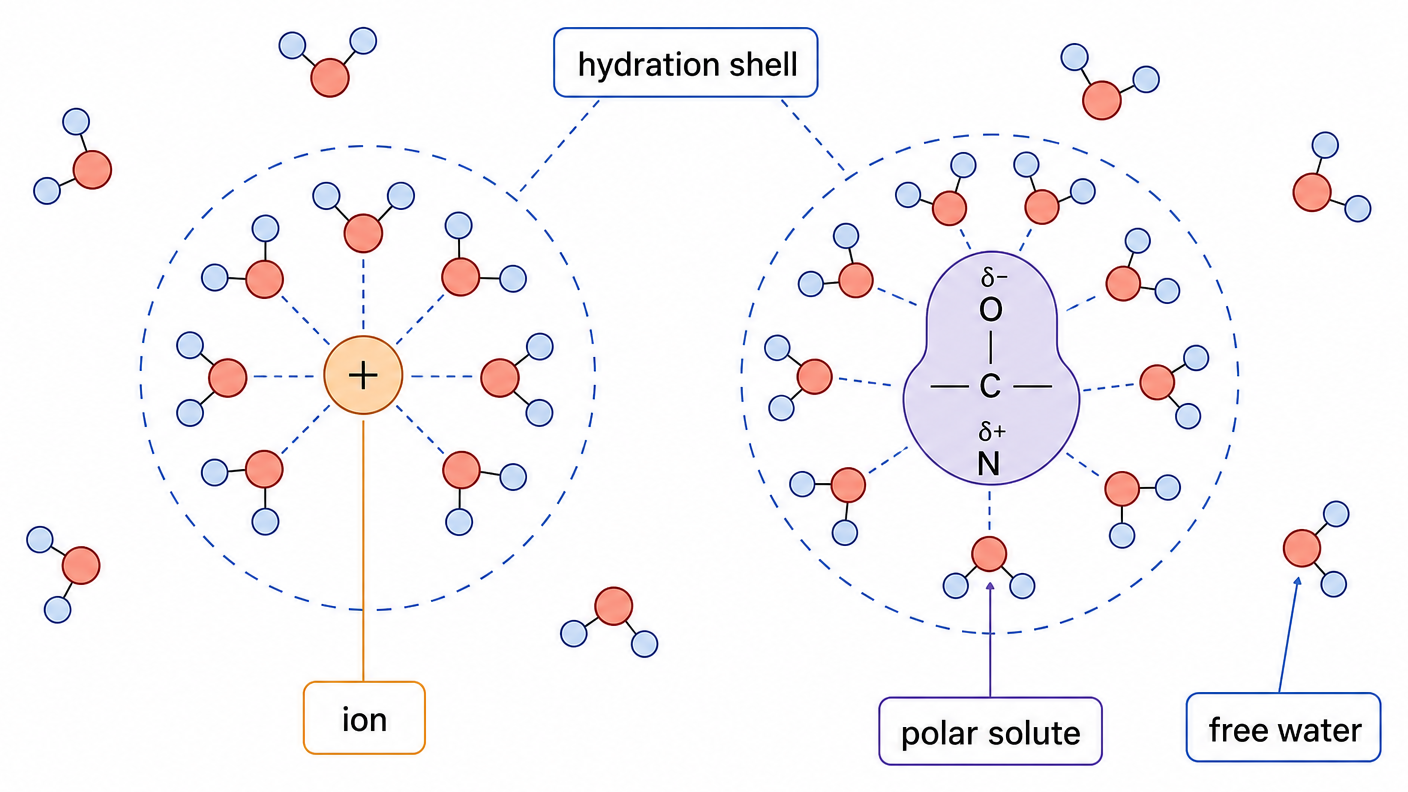

Solvation occurs when polar water molecules surround and interact with dissolved ions or polar solute molecules.
Water's partially negative oxygen is attracted to positive ions, while its partially positive hydrogens are attracted to negative ions. Polar solutes can also form hydrogen bonds with water.
These attractions form hydration shells, separate solute particles and keep them dispersed. Water molecules engaged around solutes have less freedom of movement than in pure water.
When sodium chloride dissolves, oxygen ends of water face Na⁺ and hydrogen ends face Cl⁻, producing oriented hydration shells.
Water does not form hydrogen bonds with every solute: ion–dipole attraction hydrates ions, while hydrogen bonding requires suitable polar groups.

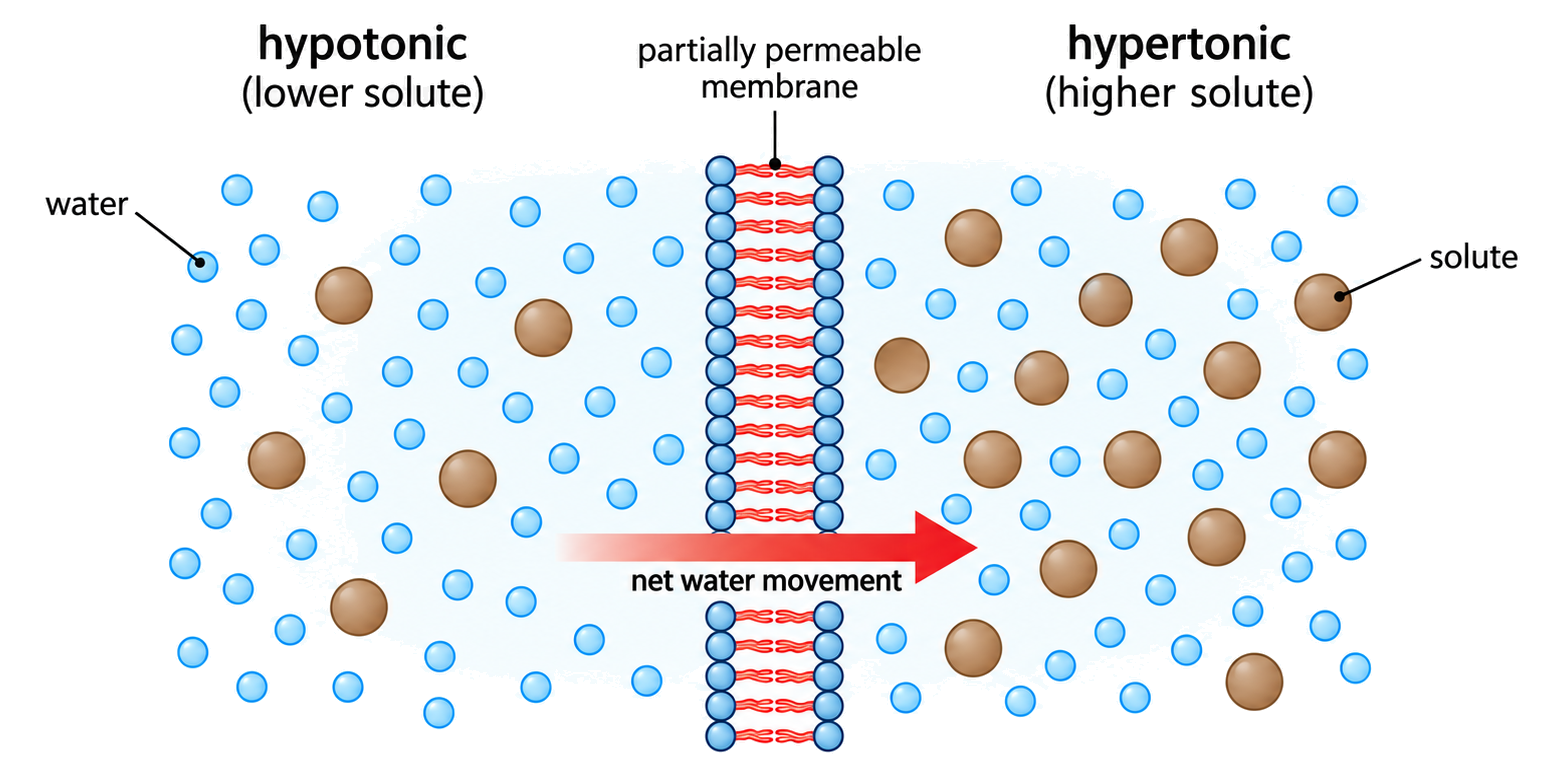

Across a partially permeable membrane, net water movement is from the less concentrated solution toward the more concentrated solution.
| Comparison term | Solute concentration relative to the other solution | Expected net water movement |
|---|---|---|
| Hypotonic | Lower | Away from this solution |
| Hypertonic | Higher | Toward this solution |
| Isotonic | Equal effective concentration | No net movement |
If solution A is 0.10 mol dm⁻³ sucrose and solution B is 0.40 mol dm⁻³, A is hypotonic to B and net water movement is from A to B if water can cross but sucrose cannot.
At SL, express the comparison using solute concentration—not 'high water concentration'. Tonicity is relative and depends on solutes that do not freely cross the membrane.
This objective is assessed through structured response, multiple choice, commonly using Explain / Outline.
Explain / Outline
Build the answer around this relationship: Osmosis requires a partially permeable membrane.
Saying solute moves by osmosis instead of water.
Representative question
Outline the conditions necessary for osmosis to occur.
| a | partially/semi permeable/selective membrane (to water); |
| b | solute molecules/ions cannot pass through membrane; |
| c | different solute/water concentrations/concentration gradients/osmolarity; |
| d | suitable temperature (for osmosis to occur); |
Osmosis is the net movement of water across a partially permeable membrane, and the cell's environment determines its direction.
| External environment | Relative external solute concentration | Net water movement |
|---|---|---|
| Hypotonic | Lower than inside | Into the cell |
| Hypertonic | Higher than inside | Out of the cell |
| Isotonic | Equal effective concentration | No net movement |
In an isotonic environment, water molecules continue crossing in both directions at equal rates. This is dynamic equilibrium, not an absence of molecular movement.
A cell placed in hypertonic solution loses water and decreases in volume because more water leaves than enters.
Always state the solution relative to the cell. 'Hypotonic' or 'hypertonic' without a comparison has incomplete meaning.
This objective is assessed through structured response, commonly using Explain.
Explain
Build the answer around this relationship: Hypotonic external solutions cause net water entry into cells.
Representative question
Explain the reason that animal cells and tissues under investigation must be maintained in solutions with the same osmolarity.
| a | to prevent osmosis; |
| b | cells placed in the incorrect osmolarity might swell/burst/shrink; |
| c | hypotonic solution would cause water to enter cells/tissues; |
| d | hypertonic solutions would cause water to leave cells/tissues; |
| e | water loss would hinder (metabolic) reactions in cell cytoplasm OR distort appearance of the cells (for the investigation); |

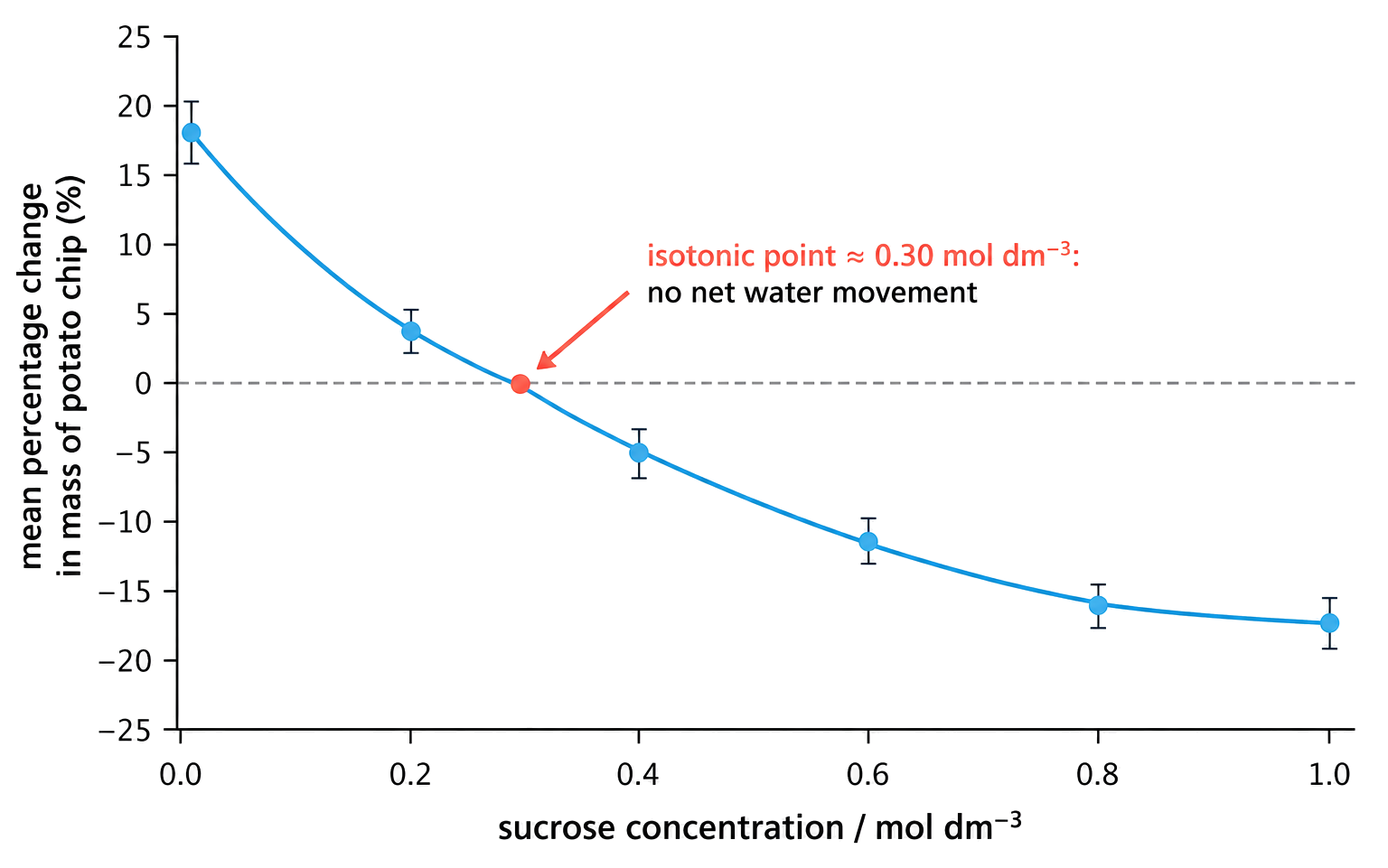

Changes in plant-tissue mass or length across a series of sucrose concentrations can be used to estimate the isotonic concentration.
Prepare equal tissue pieces, record initial mass or length, incubate them for the same time in known sucrose solutions, blot consistently, record final values and calculate change.
%\text{ change}=\frac{\text{final value}-\text{initial value}}{\text{initial value}}\times100
Plot mean percentage change against sucrose concentration. The x-intercept, where change is 0%, estimates the isotonic concentration. Replicates allow standard deviation to compare spread and standard error/error bars to compare uncertainty in means.
Positive mass change at 0.20 mol dm⁻³ and negative change at 0.30 mol dm⁻³ place the isotonic estimate between those concentrations; interpolate from the fitted graph rather than choosing the nearest raw point.
Zero mean change estimates isotonic conditions; it does not mean water molecules stopped moving. Consistent blotting, initial size and incubation time are needed for a fair comparison.
This objective is assessed through experimental design, commonly using Identify / Describe / Explain.
Identify / Describe / Explain / Suggest / Evaluate / Outline
Build the answer around this relationship: Percentage change in mass shows relative water gain or loss.
Using raw mass change instead of percentage change when initial masses differ.
Representative question
Student osmosis experiments often involve putting plant tissue such as potato cylinders in several salt solutions of different concentrations and measuring the mass before and after immersion. Outline how data collected from such an experiment could be used to estimate the osmolarity of the plant tissues.
a. (percentage) change in mass can be used;
b. plot concentration of solution on x-axis AND (percentage) change in mass on y-axis
OR
gain in mass means hypotonic (solution)/vice versa;
c. point where data line intercepts zero (\%) change in mass is osmolarity/osmotic concentration (of tissue)
OR
no change in mass means isotonic (solution);
Answer must refer to mass of (cylinders/tissue).
a. Accept increase/decrease.
b. Both axes needed for [1]
Accept sketch of graph correctly drawn and annotated e.g.
2 max

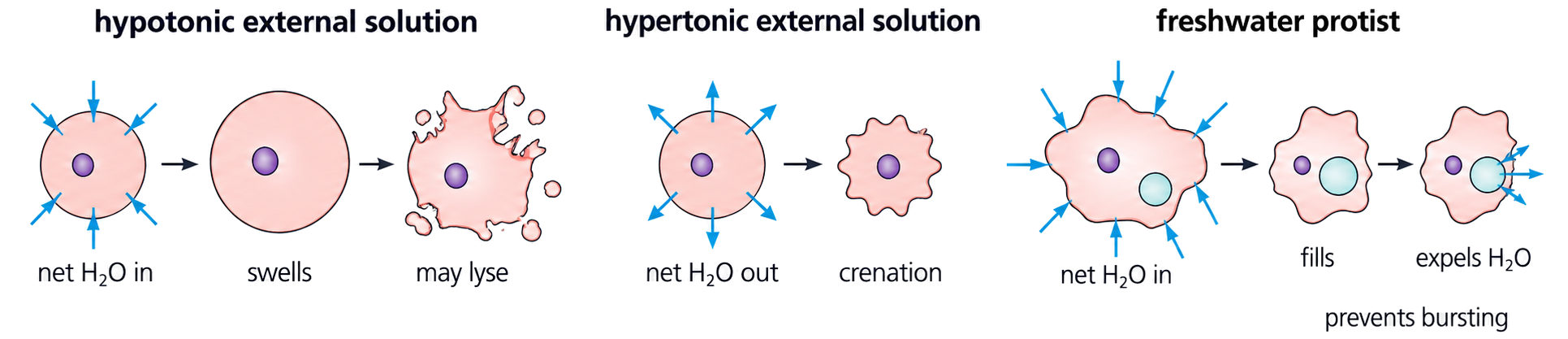

Cells without a wall can burst in hypotonic solution or shrink in hypertonic solution because their plasma membrane cannot resist large volume changes.
| Environment | Net water movement | Wall-less cell response |
|---|---|---|
| Hypotonic | Into cell | Swelling; excessive entry may cause lysis or haemolysis |
| Hypertonic | Out of cell | Shrinkage; animal cells such as red blood cells become crenated |
| Isotonic | Balanced | Stable average volume |
Freshwater unicellular organisms continually gain water from their hypotonic environment, so contractile vacuoles collect and expel excess water. Multicellular animals instead maintain near-isotonic tissue fluid around cells.
A plasma membrane can deform but does not provide the rigid mechanical restraint of a cell wall; active water removal is an adaptation, not a reversal of osmosis.
This objective is assessed through structured response, multiple choice, commonly using Deduce / Outline / Predict.
Deduce / Outline / Predict / Explain / Describe / Suggest
Build the answer around this relationship: Hypotonic solutions can cause animal cells to swell or lyse.
Calling crenated animal cells turgid, a term that applies to walled plant cells.
Representative question
Explain the effect of placing red blood cells in distilled water (0.000 M NaCl).
| a | red blood cells are hypertonic/more concentrated/have lower water potential/higher solute concentration (than distilled water)/vice versa; |
| b | water moves into cells by osmosis; |
| c | water moves from an area of higher water potential/concentration/ solution (in water) to lower water potential/concentration (in cell) OR water moves from a more dilute solution to a more concentrated solution OR water moves from hypotonic to hypertonic solution; |
| d | through a (selectively) permeable membrane; |
| e | cells swell and (eventually) burst/ complete/100\% hemolysis; |

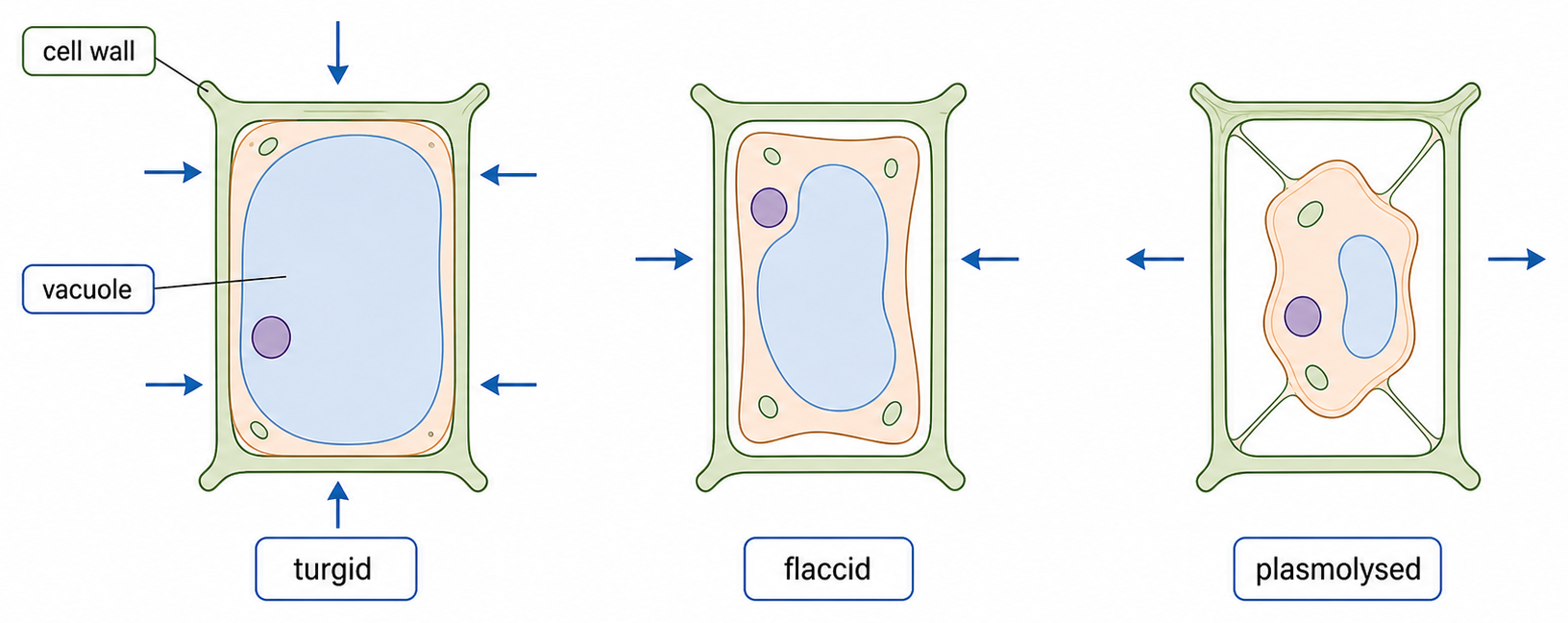

A cell wall resists expansion when water enters, converting osmotic water uptake into turgor pressure.
The wall’s rigidity balances the inward tendency of water. If water leaves, pressure falls and the membrane can pull away from the wall, producing plasmolysis.
Distinguish wall restraint from membrane transport: water direction first, then pressure and shape.
A plant cell in dilute solution becomes turgid rather than bursting because the wall pushes back as the vacuole expands.
A wall prevents unlimited swelling but does not stop osmosis or guarantee that a severely dehydrated cell survives.
This objective is assessed through structured response, commonly using Outline / State / Explain.
Outline / State / Explain
Build the answer around this relationship: Water entry can make plant cells turgid.
Saying plant cells burst in hypotonic solution ignores the protective cell wall.
Representative question
Explain the process of osmosis with reference to its effects on plant cells.
a. osmosis is water moving through a partially/semi permeable membrane/cell membrane/aquaporins;
b. osmosis is a form of simple diffusion
OR
water travels down the (water) concentration gradient
OR
osmosis is passive;
c. the solute concentration determines the direction of net movement of water;
d. plant cells in hypotonic solutions will take in water;
e. they will swell/are turgid/develop turgor pressure (in hypotonic solutions);
f. cell wall prevents the plant cells from bursting due to water pressure (in hypotonic solutions);
g. plant cells in hypertonic solutions will lose water;
h. they will shrink/get smaller/flaccid (in hypertonic solutions);
i. the cell membrane will pull away from the cell wall/plasmolysis (in hypertonic solutions);
j. isotonic solutions are the same concentration as inside the plant cells/cytoplasm/cell sap;
k. plant cells will have no net change (in isotonic solutions)/water moves equally in and out of the cell/dynamic equilibrium;
7
Marking guidance:
max

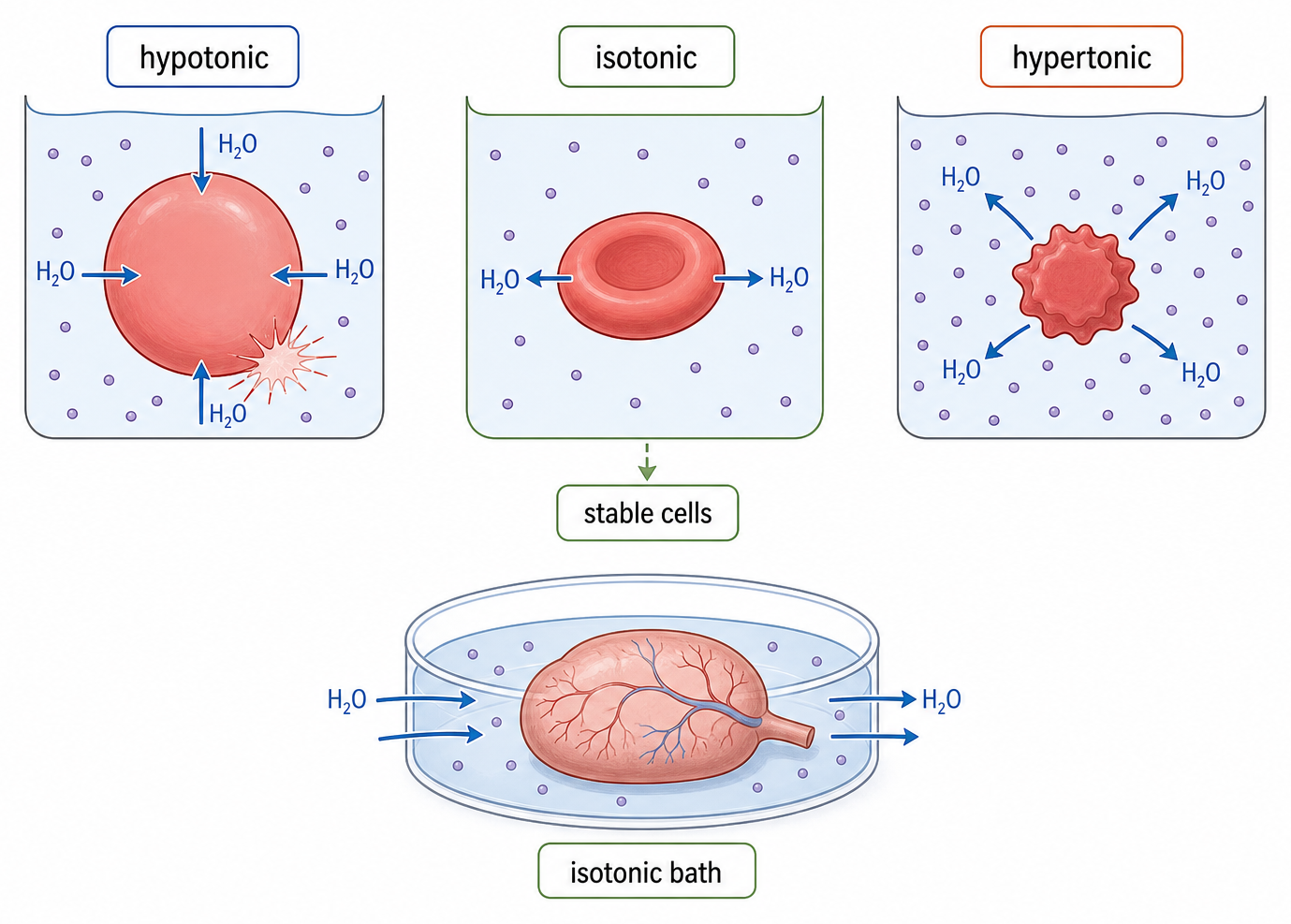

Medical fluids are made isotonic with body tissues to avoid harmful net water gain or loss by cells.
| Application | Why isotonic conditions matter |
|---|---|
| Intravenous fluid | Prevents red blood cells and other body cells swelling, lysing, shrinking or crenating while fluid/solutes are delivered |
| Organ awaiting transplantation | An isotonic bathing solution limits osmotic damage to the organ's cells before implantation |
An isotonic saline infusion replaces extracellular fluid without causing appreciable net movement of water into or out of red blood cells.
Isotonic means matched effective osmotic concentration relative to the tissue; it does not mean the solution has the same chemical composition as cytoplasm.
This objective is assessed through structured response, multiple choice, commonly using Explain.
Explain
Build the answer around this relationship: Isotonic fluids prevent net water movement into or out of body cells.
Representative question
Explain the need for isotonic conditions in human blood plasma and tissue fluid.
a. isotonic is same water potential/solute potential/osmotic potential/solute concentration;
b. (isotonic conditions) prevent (net) movement of water by osmosis;
c. hypotonic plasma/tissue fluid causes water entry to blood/body cells;
d. swelling/bursting of cells in (hypotonic plasma/tissue fluid);
e. hypertonic plasma/tissue fluid causes water to exit cells;
f. shrinkage/crenation/loss of volume/OWTTE;
g. blood cells bathed in plasma;
h. tissue fluid released by capillaries and then reabsorbed/flows between cells in tissues;
In mark point c and mark point e
Marking guidance:
accept 'higher/less negative
water potential' instead of
hypotonic and accept
'lower/more negative water
potential’ instead of hypertonic.
4
max
Water forms hydration shells around ions and polar solutes; hydrogen bonding and charge attraction reduce free water movement. Water moves by osmosis across partially permeable membranes from hypotonic/lower solute solutions toward hypertonic/higher solute solutions. Osmosis direction depends on internal and external solute concentration; isotonic conditions have dynamic water movement but no net osmosis. Plant tissue changes mass or length in sucrose solutions; percentage change graphs estimate isotonic or osmotic concentration. Animal cells can lyse in hypotonic solutions and crenate in hypertonic solutions; freshwater protists use contractile vacuoles to expel excess water. Plant cells become turgid in hypotonic solutions as vacuoles swell; hypertonic solutions cause flaccidity and plasmolysis from water loss. Isotonic saline prevents harmful water gain or loss in body cells; IV fluids and transplant organ baths must match tissue osmotic concentration.
