D2.1 Cell and nuclear division

Cell and nuclear division coordinate DNA replication, chromosome movement, cytokinesis, meiosis, cell-cycle control and proliferation to produce new cells in organisms.

Learning objectives

D2.1.1Generation of new cells• All cells arise from pre-existing parent cells by cell division• Division produces daughter cells for growth, replacement, repair, or reproduction D2.1.2Cytokinesis• Cytokinesis splits cytoplasm after nuclear division• Animal cells use a contractile ring; plant cells form a vesicle-derived cell plate D2.1.3Equal and unequal cytokinesis• Equal cytokinesis gives daughter cells similar amounts of cytoplasm• Unequal cytokinesis occurs in oogenesis and yeast budding D2.1.4Roles of mitosis and meiosis• Mitosis maintains chromosome number for growth, repair, and asexual reproduction• Meiosis halves chromosome number for gametes and generates genetic diversity D2.1.5DNA replication prerequisite• DNA replication in interphase produces chromosomes with sister chromatids• Sister chromatids remain joined at centromeres until separation D2.1.6Shared features• Mitosis and meiosis both condense chromatin into movable chromosomes• Histones, nucleosomes, spindle microtubules, and motor proteins organize movement D2.1.7Phases of mitosis• Prophase condenses chromosomes; metaphase aligns them at the equator• Anaphase separates chromatids; telophase reforms nuclei, producing identical nuclei D2.1.8Identification of mitosis phases• Mitosis phases are identified in diagrams, micrographs, and root-tip squashes• Chromosome condensation, equator alignment, separation, and nuclear membranes are cues D2.1.9Meiosis as reduction division• Meiosis has two nuclear divisions after one round of DNA replication• Homologous chromosomes separate in meiosis I, producing haploid nuclei D2.1.10Down syndrome• Non-disjunction is failed separation of homologues or sister chromatids in meiosis• Down syndrome usually results from trisomy 21 after non-disjunction D2.1.11Meiosis generates variation• Crossing over at chiasmata exchanges DNA between non-sister chromatids• Random orientation of bivalents and fertilization create new allele combinations

Every new cell arises when a pre-existing parent cell divides. The daughter cells inherit cellular material and DNA from that lineage; they are not assembled from non-living parts.

Cell division supplies new cells for:

growth of a multicellular organism
replacement of worn or damaged cells
tissue repair after injury
reproduction in unicellular organisms and some multicellular organisms

Cell division increases cell number. Growth of an individual cell increases cell size; organisms often require both processes.

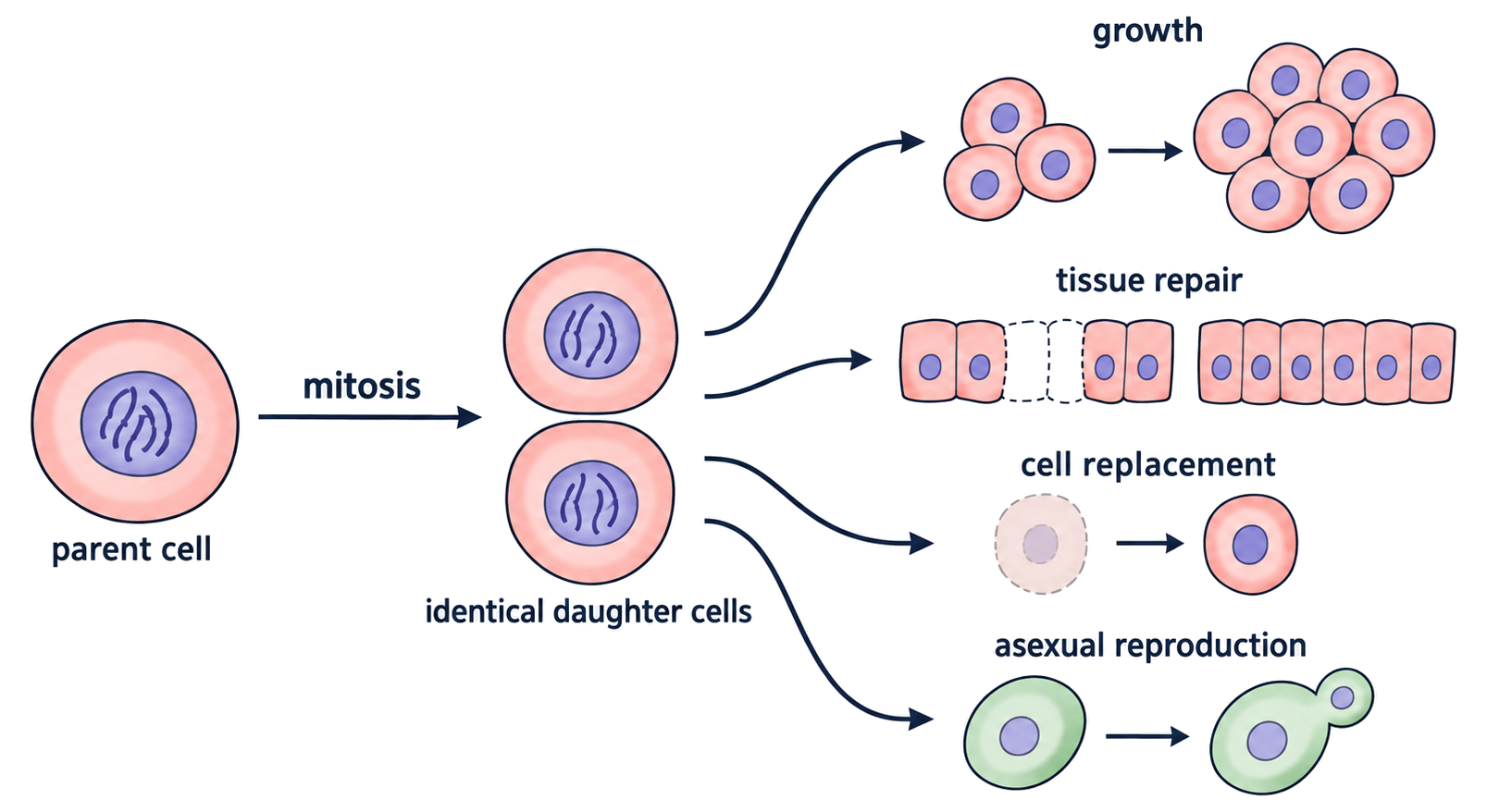

One parent cell divides by mitosis into daughter cells that contribute to growth, tissue repair, cell replacement or asexual reproduction.

Cytokinesis partitions the cytoplasm after nuclear division so the daughter nuclei become separate cells.

Feature	Animal cell	Plant cell
starting constraint	flexible plasma membrane	rigid existing cell wall
mechanism	actin–myosin contractile ring tightens a cleavage furrow	Golgi-derived vesicles fuse at the equator
result	membrane pinches inward	cell plate becomes new membranes and wall between daughters

Both mechanisms divide one cytoplasm around two daughter nuclei, but they solve the mechanical problem in opposite directions: inward constriction versus construction from the centre outward.

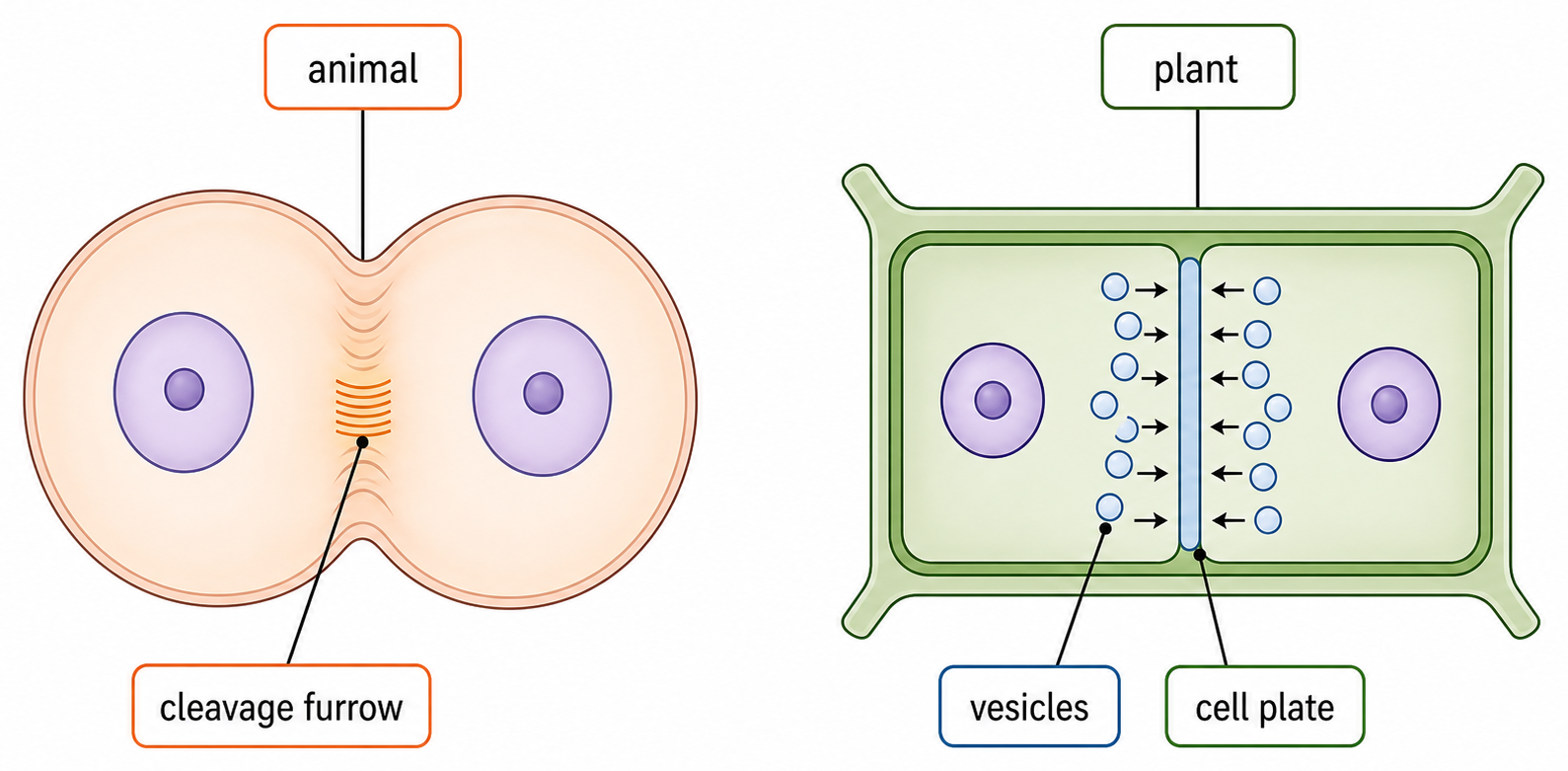

Animal-cell cytokinesis uses a cleavage furrow, whereas plant-cell cytokinesis joins vesicles into a central cell plate.

Cytokinesis often gives daughter cells similar cytoplasmic volumes, but the partition can be unequal when the daughters have different immediate functions.

Oogenesis: one cell retains most cytoplasm, organelles and stored nutrients to become the ovum; small polar bodies mainly remove extra chromosome sets.
Yeast budding: a smaller bud grows from the parent and separates after receiving a nucleus and essential cell components.

Unequal cytokinesis refers to cytoplasmic allocation, not deliberately unequal chromosome inheritance. Normal daughter nuclei still require the appropriate chromosome set.

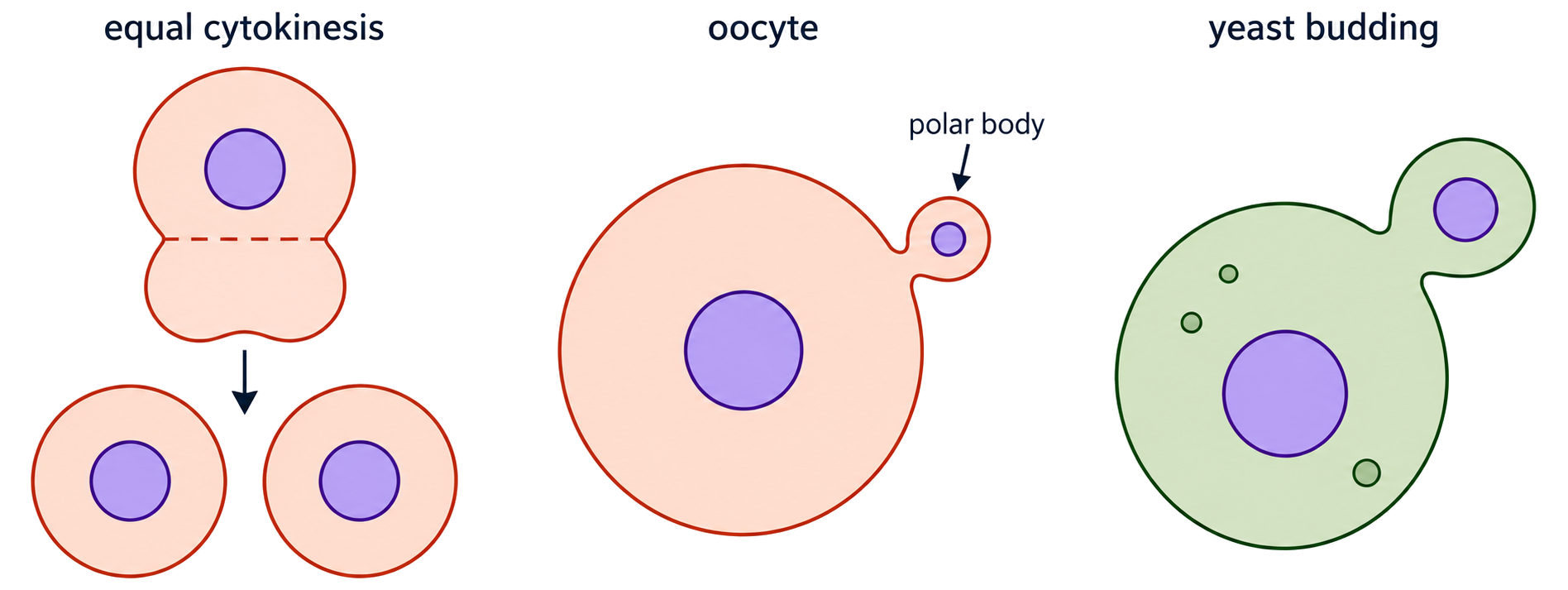

Equal cytokinesis is contrasted with a large oocyte and polar body and with a small yeast bud on a larger parent cell.

Dimension	Mitosis	Meiosis
nuclear divisions	one	two after one DNA replication
usual nuclei produced	two	four
chromosome number	maintained	halved
genetic relationship	normally identical to parent and each other	varied combinations
main roles	growth, replacement, repair, asexual reproduction	production of cells that develop into gametes

Diploid (2n) nuclei contain two homologous sets of chromosomes. Haploid (n) nuclei contain one set.

Mitosis and meiosis are nuclear divisions. Cytokinesis is the separate division of cytoplasm that usually follows.

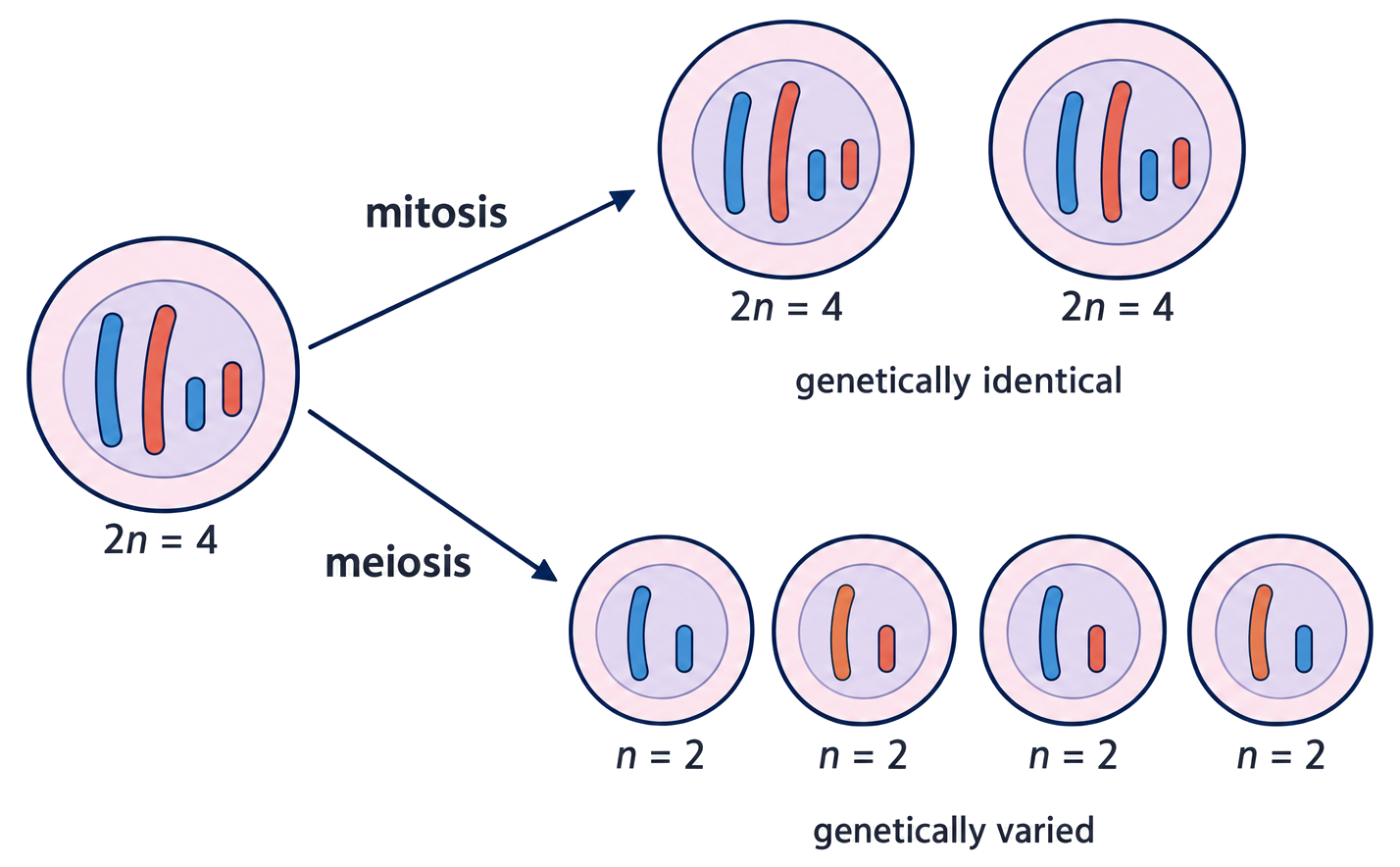

A diploid parent produces two genetically similar diploid nuclei by mitosis or four genetically varied haploid nuclei by meiosis.

Before S phase, one chromosome contains one DNA molecule. During S phase that DNA is replicated.

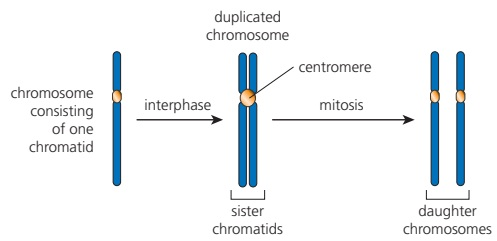

An unreplicated chromosome becomes two sister chromatids joined at a centromere and later separates into daughter chromosomes.

After replication, the chromosome consists of two nearly identical sister chromatids joined at a centromere. The chromosome count has not doubled, but the DNA amount has.

When the sister chromatids separate, each becomes an individual daughter chromosome. Sending one copy to each future nucleus preserves a complete genome.

Do not count chromatids as separate chromosomes while they remain joined at one centromere.

Each chromosome is one very long DNA molecule. Accurate division requires it to be packaged into a compact unit and attached to machinery that can position and separate it.

Mitosis and meiosis share three mechanical features:

DNA wrapped around histones and nucleosomes condenses into chromosomes.
Spindle microtubules attach through centromere-associated structures.
Microtubule dynamics and motor proteins position and move chromosomes.

Condensation does not copy DNA. It changes packaging so long molecules can move with less tangling or breakage.

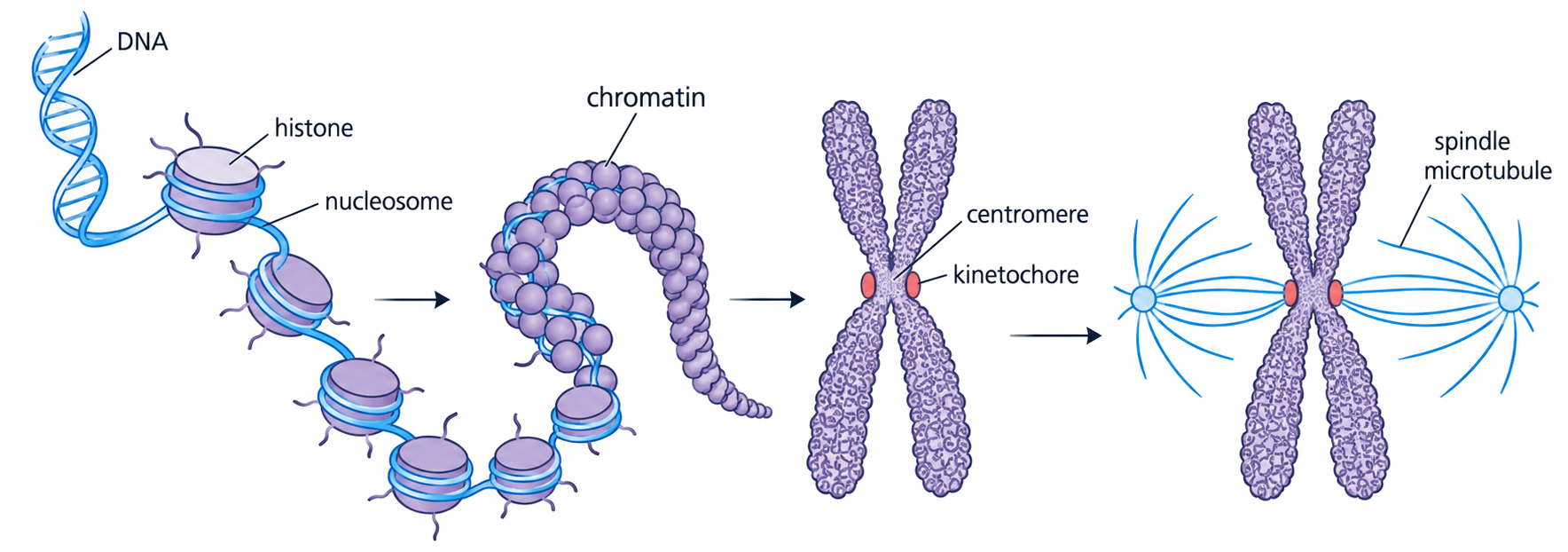

DNA wraps around histones into chromatin, condenses into a duplicated chromosome and attaches at the centromere region to spindle microtubules.

Prophase: chromatin condenses into visible duplicated chromosomes; the nucleolus disappears, the nuclear envelope breaks down, and the spindle forms.

Metaphase: spindle microtubules attach to the centromere region from opposite poles and position chromosome centromeres at the cell equator.

Identification cues:

condensed chromosomes still scattered or nuclear boundary disappearing → prophase
duplicated chromosomes arranged along one central plane → metaphase

Mitosis is continuous; phase names label dominant visible events rather than pauses between separate processes.

Anaphase: centromere linkage is released and sister chromatids move to opposite poles. Once separated, each chromatid is a daughter chromosome.

Telophase: chromosomes reach the poles and decondense; nuclear envelopes and nucleoli re-form around the two chromosome sets.

Identification cues:

two separating groups, often V-shaped as centromeres lead → anaphase
two groups at opposite ends with new nuclear boundaries → telophase

Because sister chromatids were replicated copies and one moves to each pole, the two daughter nuclei normally contain identical chromosome sets.

Use a fixed observation sequence:

Are individual condensed chromosomes visible?
Are they scattered, aligned at one equator, separating, or already at opposite poles?
Is one nuclear envelope present, absent, or re-forming as two?

Dominant observation	Best stage identification
chromatin diffuse inside an intact nucleus	interphase, not mitosis
condensed chromosomes not yet aligned	prophase
chromosomes aligned at one equator	metaphase
daughter chromosomes moving apart	anaphase
two chromosome groups with re-forming nuclei	telophase

A stained root-tip squash contains many cells in different stages because division is not synchronized. Count only cells whose chromosome evidence is sufficiently clear.

A single still image may lie near a phase boundary. Record the visible cue and acknowledge uncertainty rather than forcing a label from cell outline alone.

DNA replication creates joined sister chromatids → chromosomes condense and attach to the spindle → metaphase alignment checks bipolar attachment → sister chromatids separate → two nuclei re-form → cytokinesis partitions the cytoplasm

Continuity requirement	What supplies it
complete genome in each nucleus	replication followed by equal chromatid separation
controlled chromosome movement	condensation, spindle microtubules and motor proteins
two separate cells	animal cleavage furrow or plant cell plate
suitable daughter-cell contents	equal or functionally unequal cytoplasmic partition

To identify a stage, prioritize chromosome position and nuclear-envelope state. To explain the outcome, connect those observations to what is being separated.

Before meiosis, S phase replicates every chromosome into two sister chromatids. The nucleus is still diploid because both homologues of each pair remain present.

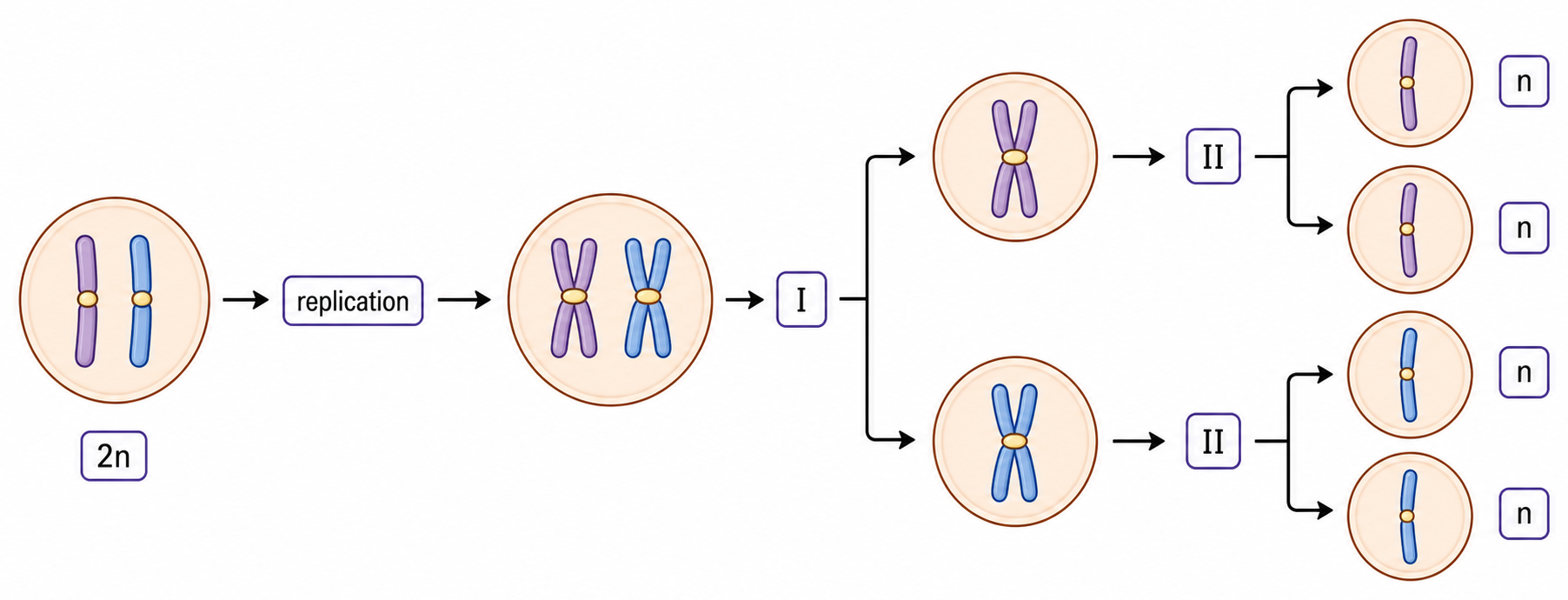

A diploid cell replicates DNA once, separates homologous chromosomes in meiosis I and separates chromatids in meiosis II to form four haploid nuclei.

In meiosis I, homologous maternal and paternal chromosomes separate into different nuclei. Chromosome number is reduced from diploid to haploid, although each chromosome still has two chromatids.

There is no second DNA replication. In meiosis II, sister chromatids separate, producing four haploid nuclei with one chromosome from each homologous pair.

Reduction prevents chromosome number doubling in every generation: haploid gametes fuse at fertilization to restore the diploid number.

A bivalent is a paired set of duplicated homologous chromosomes: one maternal homologue and one paternal homologue, each made of two sister chromatids.

Question	Meiosis I	Meiosis II
what aligns?	bivalents	individual duplicated chromosomes
what separates?	homologous chromosomes	sister chromatids
do centromeres divide?	no	yes
chromosome-number effect	diploid → haploid	remains haploid

Use the object being separated in explanations: homologues move apart in anaphase I; sister chromatids move apart in anaphase II.

Calling both events 'chromosomes separating' hides the reason meiosis I is the reduction division.

A homologous pair can fail to separate in meiosis I, or sister chromatids can fail to separate in meiosis II. This failure is non-disjunction.

Both copies move to one pole while the opposite pole receives none. Later division therefore cannot give every gamete the standard chromosome number.

The affected meiosis produces gametes with an extra chromosome (n + 1) and/or a missing chromosome (n − 1), depending on when the error occurred.

After fusion with a normal haploid gamete, an n + 1 gamete can produce a trisomic zygote; an n − 1 gamete can produce a monosomic zygote.

Non-disjunction can create too many or too few chromosomes. It is not defined only by an extra chromosome.

chromosome 21 non-disjunction during gamete formation → gamete receives two copies of chromosome 21 → fertilization by a normal gamete adds one more copy → zygote has three copies of chromosome 21

The resulting trisomy 21 gives the zygote 47 chromosomes rather than the usual 46 and can cause Down syndrome.

The developmental effects vary among individuals because an extra chromosome changes the dosage of many genes, not just one gene.

Down syndrome is a chromosome-number condition. It is not caused by a point mutation within chromosome 21.

During prophase I, duplicated homologous chromosomes pair closely as a bivalent. Corresponding gene loci align.

Non-sister chromatids break at corresponding positions and rejoin to the other homologue. The visible connection is a chiasma.

Equivalent DNA segments are exchanged, producing recombinant chromatids with new combinations of maternal and paternal alleles.

Crossing over is between non-sister chromatids of homologous chromosomes. It rearranges existing alleles; it does not necessarily create new alleles.

At metaphase I, each bivalent can face either pole independently of the others. The maternal or paternal homologue that enters a gamete is therefore random for each pair.

$2^n$

For humans, $n=23$ , so random orientation alone can produce $2^{23}$ —more than 8 million—chromosome combinations before crossing over is counted.

Random fusion of one genetically varied sperm with one genetically varied egg multiplies the possible allele combinations again.

Crossing over changes allele combinations within chromosomes; random orientation changes which whole maternal and paternal homologues travel together.

Event	What changes	Main consequence
replication before meiosis	each chromosome gains a sister chromatid	DNA prepared for two divisions
meiosis I	homologous chromosomes separate	chromosome number is halved
meiosis II	sister chromatids separate	four haploid products can form
non-disjunction	one required separation fails	aneuploid gametes may form

Variation is layered: crossing over recombines alleles within chromosomes, random orientation assort homologues independently, and random fertilization combines two independently produced gametes.

When explaining any meiotic outcome, name the stage, the chromosome object that should separate, the chromosome number before and after, and whether the result changes number, allele combination or both.

1 mark

Which process contributes to growth of a multicellular body?

8 marks

Compare and contrast the processes of mitosis and cytokinesis in animal and plant cells.

1 mark

Daughter cells usually receive equal amounts of cytoplasm as parent cells undergo cytokinesis. Which of the following is an exception?

5 marks

Distinguish between the processes of meiosis and mitosis.

1 mark

Distinguish between the quantity of DNA of the cell at G1 and G2.

1 mark

What occurs in cell division during both mitosis and meiosis?

9 marks

Describe the events that occur during mitosis.

1 mark

The following shows a micrograph.

How many cells are in metaphase?

5 marks

Outline what occurs in cells in the first division of meiosis.

4 marks

Describe how non-disjunction can cause Down syndrome.

7 marks

Explain the stages and processes of meiosis leading to genetic variation.
