CAIE A-Level Biology AS 7.2.5 Xerophytic Adaptations Questions
Explain xerophytic adaptations that reduce water loss using evidence from each question and mark scheme.
- Syllabus
- 2028–2030
- Course
- Biology 9700
- Level
- AS
Explain xerophytic adaptations that reduce water loss using evidence from each question and mark scheme.

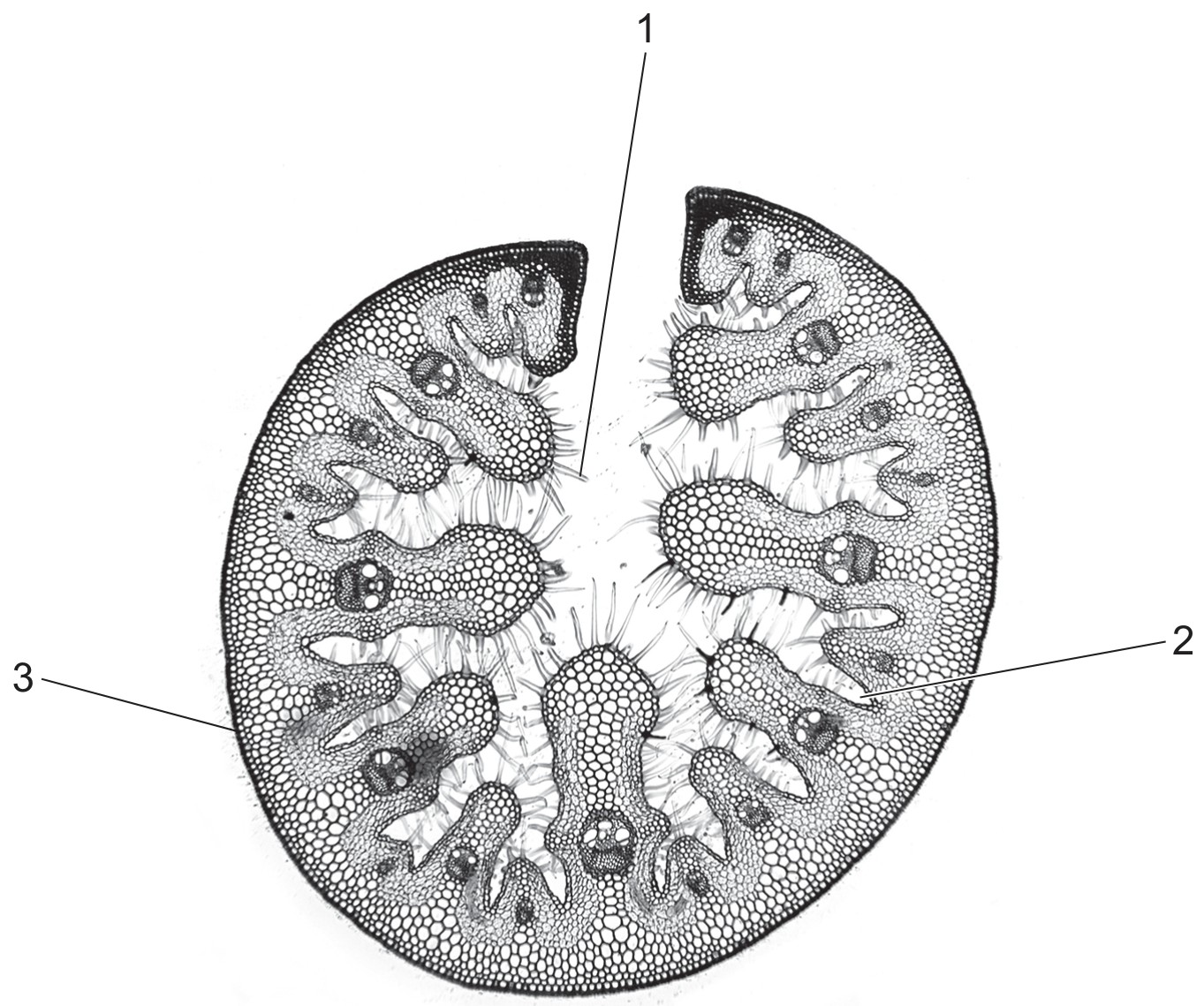

Nerium oleander is a xerophytic plant. A photomicrograph of a section through the leaf of N. oleander is shown in Fig. 3.1.
Fig. 3.1
The leaf shown in Fig. 3.1 has a number of adaptations to reduce water loss by transpiration. Two of these adaptations are:
- a multilayered epidermis
- stomata only found in depressions, known as stomatal crypts, on the lower surface of the leaf.
Explain how a multilayered epidermis and stomatal crypts will help to reduce water loss in N. oleander.
multilayered epidermis
stomatal crypts
Sucrose, amino acids and other assimilates synthesised in palisade mesophyll cells of N. oleander pass to the vein, where they can be transported within specialised cells from the source to the sink.
Three from:
Multilayered epidermis:
- reduces cuticular transpiration / loss of water vapour through cuticle ;
- increases distance for diffusion of water vapour to cuticle ;
- protects from heat from sunlight and reduces evaporation from spongy mesophyll cells ;
Stomatal crypts:
- creates area of moist air ;
- minimises effect of external air currents / wind ;
- reduces / makes less steep the water potential gradient between intercellular air space and external environment ;
- only on lower surface / shaded, reducing evaporation from spongy mesophyll cells ;
Max 2 if only one section attempted.
Ignore "traps water".
Accept water vapour potential gradient.
Accept diffusion gradient if referenced to water vapour.
Accept lower temperature reduces rate of diffusion of water vapour out via stomata.
