CAIE A-Level Biology A2 15.1.8 Refractory Period Questions
Explain the refractory period of a neurone using evidence from each question and mark scheme.
- Syllabus
- 2028–2030
- Course
- Biology 9700
- Level
- A2
Explain the refractory period of a neurone using evidence from each question and mark scheme.

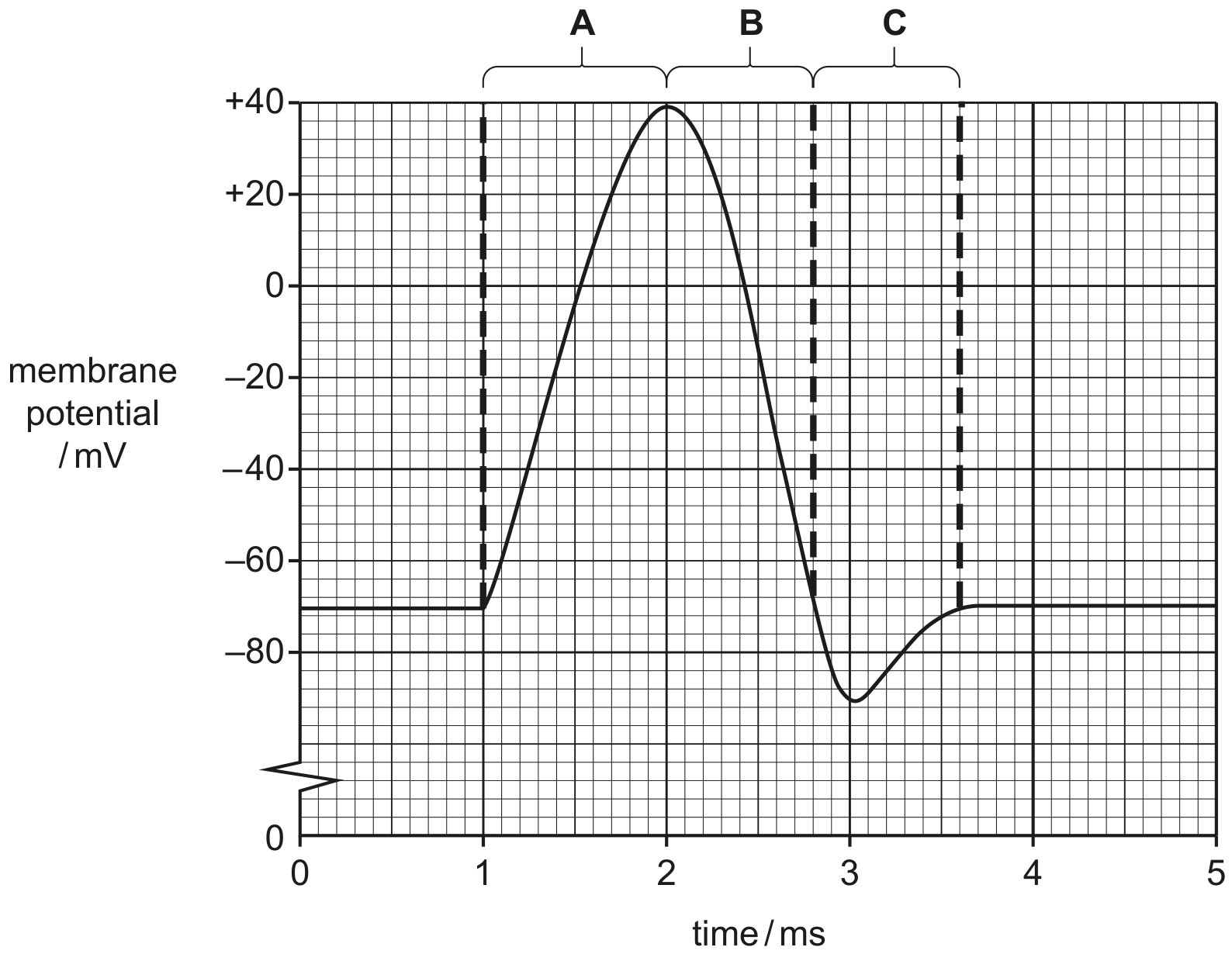

Fig. 10.1 is a graph of an action potential in a mammalian neurone.
Fig. 10.1
With reference to Fig. 10.1 suggest why:
- no further action potential can occur during A and B
- it is difficult for a further action potential to occur during C.
any three from:
A - any one reason from:
1 Na / sodium, channels already open OR
Na+has already entered neurone OR
no more Na+channels to open OR
less Na+outside to diffuse in OR
less steep Na+concentration gradient ;
B - any one reason from:
2 sodium channels are, inactive / unresponsive OR potassium channels are open OR
membrane is, impermeable / less permeable, to Na+OR
membrane is more permeable to K+;
C - any one reason from:
3 harder to reach threshold OR
potassium channels are (still) open OR sodium-potassium pumps need to restore the resting potential ;
4 hyperpolarisation at C ;
