Question 3(a)(i)
[Maximum number: 1]

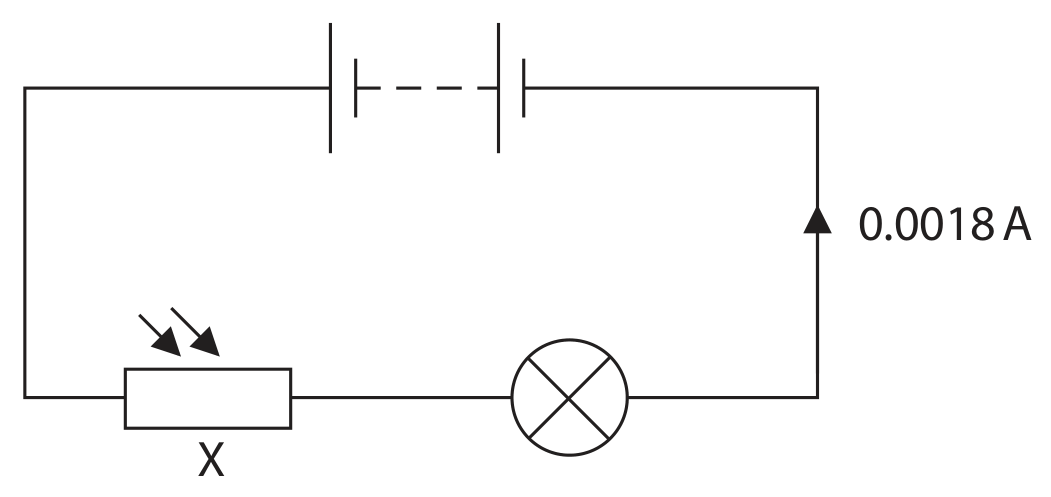

The diagram shows an electric circuit containing component X and a lamp connected in series.
Add another component to the diagram to measure the voltage of component X.
Edexcel IGCSE Physics Recognise Circuit Symbols
Practise Edexcel IGCSE Physics recognising and using standard circuit symbols by adding meters, LEDs and LDRs to circuit diagrams.
How this is tested
- Add an ammeter in series or a voltmeter in parallel to measure current or voltage.
- Recognise component symbols such as LEDs and light dependent resistors in circuit diagrams.
- Draw an LED in the correct branch and orientation so it indicates current in a resistor.
