Edexcel IGCSE Physics Investigation Planning Methods
Practise Edexcel IGCSE Physics investigation planning by choosing safe procedures and suitable apparatus for measurements in practical contexts.
- Syllabus
- Issue 4 (2024)
- Course
- Physics 4PH1
Exam points
- State a suitable safety precaution for handling hazardous materials in a practical setup.
- Select appropriate measuring apparatus, such as a balance for measuring mass.
Covered syllabus points
Investigation planning and methods question 1
A student investigates how the strength of the magnetic field from a solenoid changes with distance from the end of the solenoid.

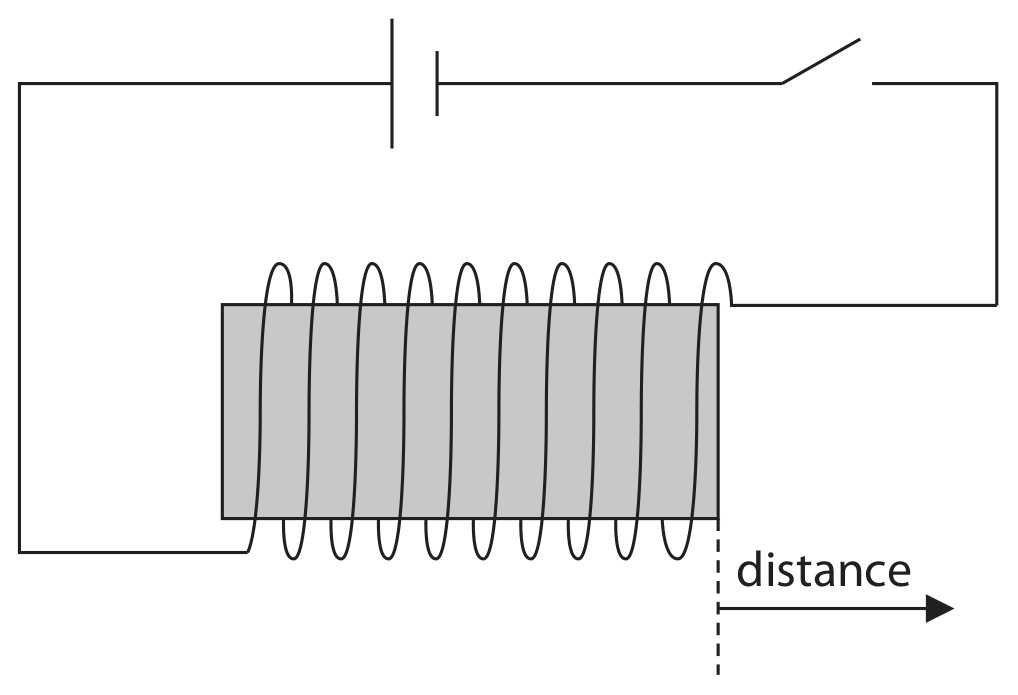

The diagram shows the solenoid connected to a power supply.
The student uses a device called a Hall probe, which can be placed anywhere in the magnetic field to measure its strength at that point.
Design a suitable method for the investigation.
Your answer should include
- any extra measuring equipment needed
- details of the independent variable, dependent variable and any control variables
You may include a diagram to help your answer.
Investigation planning and methods question 2
This question is about liquid nitrogen.
Question (a)
(a)
A teacher uses this method to find the density of liquid nitrogen.
- measure the mass of a container
- pour liquid nitrogen into the container
- measure the total mass of the container and the liquid nitrogen
- read the volume of the liquid nitrogen from the scale on the side of the container
[ 2 ]
Question (i)
(i)
Give a safety precaution the teacher should take when pouring the liquid nitrogen.
[ 1 ]
Question (ii)
(ii)
State the name of the apparatus that the teacher should use to measure the mass of the container.
[ 1 ]
