Edexcel IGCSE Biology H Transport Questions

The diagram shows a section through a leaf with different parts labelled P to U .

Plant roots absorb water from soil.
This water is transported to the leaves and then moves into the air.

Read the passage below. Use the information in the passage and your own knowledge to answer the questions that follow.

Antitranspirants

Antitranspirants are substances applied to plants to reduce water loss. There are three types of antitranspirant, film-forming compounds, stomatal regulators and reflective compounds.

The first type of antitranspirant contains film-forming compounds. These compounds are oils or waxes that are mixed with water to form an emulsion. This emulsion is then sprayed onto the leaves of plants. The emulsion forms a physical barrier that covers the stomata. The film is designed to prevent water loss but allow gas exchange. Scientists have found that the film-forming antitranspirant is effective in increasing yield and increasing photosynthesis in drought conditions. The increased leaf turgor in plants sprayed with film, compared to control plants, shows that the film decreases water loss and maintains turgor in drought conditions.

Film-forming antitranspirants are used in horticulture to reduce water stress. This can occur during storage, transport and planting of container grown plants. Application of the antitranspirant before transplanting, helps the plant survive until the root system is established. The film-forming compounds are used to reduce drying out in rolled turf and in transporting flowering plants and trees with root balls.

The second type of antitranspirants are stomatal regulators that reduce the size of the stomatal pore. Stomatal pores affect diffusion as well as transpiration. Therefore, photosynthesis and growth may change when stomatal regulators are applied to leaf surfaces. If the stomatal pores close completely this will stop photosynthesis. However, if stomatal openings are only reduced in size, transpiration will be reduced but some photosynthesis will continue.

The third type of antitranspirants are reflective compounds. These work by adding a white coating to leaves. This changes the amount of light that is reflected by the leaf surface. The coating is only applied to the upper surface of leaves so does not block the stomatal pores. Coating a leaf with a reflective chemical can reduce leaf temperature, transpiration rate and also increase the efficiency of water use. Experiments show that transpiration rate can be reduced by up to 30% and leaf temperature reduced from $40^{\circ} \mathrm{C}$ to $30^{\circ} \mathrm{C}$ after a coating of reflective compound is applied to leaf surfaces.

Crops depend on photosynthesis for growth and final yield. Therefore, it is unlikely that currently available antitranspirants would increase the yield of a crop unless the crop suffers from a low water supply or very high rates of evaporation. Spraying film-forming or stomata regulating antitranspirants on a field-grown cereal crop under drought conditions, produced a grain yield increase of 17%. Experiments also show that any effect that antitranspirants have on the minerals supplied to the leaves has little effect on plant growth.

Plant roots absorb water from soil.
This water is transported to the leaves and then moves into the air.

Name the tissue that transports water to the leaves.

Read the passage below. Use the information in the passage and your own knowledge to answer the questions that follow.

Antitranspirants

Antitranspirants are substances applied to plants to reduce water loss. There are three types of antitranspirant, film-forming compounds, stomatal regulators and reflective compounds.

The first type of antitranspirant contains film-forming compounds. These compounds are oils or waxes that are mixed with water to form an emulsion. This emulsion is then sprayed onto the leaves of plants. The emulsion forms a physical barrier that covers the stomata. The film is designed to prevent water loss but allow gas exchange. Scientists have found that the film-forming antitranspirant is effective in increasing yield and increasing photosynthesis in drought conditions. The increased leaf turgor in plants sprayed with film, compared to control plants, shows that the film decreases water loss and maintains turgor in drought conditions.

Film-forming antitranspirants are used in horticulture to reduce water stress. This can occur during storage, transport and planting of container grown plants. Application of the antitranspirant before transplanting, helps the plant survive until the root system is established. The film-forming compounds are used to reduce drying out in rolled turf and in transporting flowering plants and trees with root balls.

The second type of antitranspirants are stomatal regulators that reduce the size of the stomatal pore. Stomatal pores affect diffusion as well as transpiration. Therefore, photosynthesis and growth may change when stomatal regulators are applied to leaf surfaces. If the stomatal pores close completely this will stop photosynthesis. However, if stomatal openings are only reduced in size, transpiration will be reduced but some photosynthesis will continue.

The third type of antitranspirants are reflective compounds. These work by adding a white coating to leaves. This changes the amount of light that is reflected by the leaf surface. The coating is only applied to the upper surface of leaves so does not block the stomatal pores. Coating a leaf with a reflective chemical can reduce leaf temperature, transpiration rate and also increase the efficiency of water use. Experiments show that transpiration rate can be reduced by up to 30% and leaf temperature reduced from $40^{\circ} \mathrm{C}$ to $30^{\circ} \mathrm{C}$ after a coating of reflective compound is applied to leaf surfaces.

Crops depend on photosynthesis for growth and final yield. Therefore, it is unlikely that currently available antitranspirants would increase the yield of a crop unless the crop suffers from a low water supply or very high rates of evaporation. Spraying film-forming or stomata regulating antitranspirants on a field-grown cereal crop under drought conditions, produced a grain yield increase of 17%. Experiments also show that any effect that antitranspirants have on the minerals supplied to the leaves has little effect on plant growth.

Explain why plants that have been dug up and transported are at most risk of drying out (Lines 13 to 18).

Read the passage below. Use the information in the passage and your own knowledge to answer the questions that follow.

Plants to the rescue

Since the early 20th century, the concentration of carbon dioxide in the atmosphere has increased rapidly. This has further increased in recent years due to more cars and the increased demand for electricity for homes and industry.

Scientists have found that plants play a critical part in removing this excess carbon dioxide from the atmosphere. Using computer models, the scientists concluded that photosynthesis has increased by 30 per cent.

The scientists measured carbonyl sulfide found in ice cores and air samples. In addition to carbon dioxide, plants take in carbonyl sulfide gas during their natural carbon cycle, and this is frequently used as a measure of photosynthesis on a global scale. Terrestrial plants are removing about 29 per cent of carbon dioxide emissions that would otherwise contribute to an increase in the atmospheric carbon dioxide concentration.

A carbon sink is an ecosystem, such as a forest, that absorbs more carbon dioxide than it releases. The size of the carbon sink depends on the rate of photosynthesis but also on the levels of deforestation and respiration. The model the scientists used showed that the role of photosynthesis in producing a carbon sink in land plants is larger than estimated in most other models.

Other scientists are less confident about using carbonyl sulfide as a measure of photosynthesis. Plant absorption of carbonyl sulfide can vary depending upon the amount of light the plants receive. Therefore, the measure of global photosynthesis could be overestimated.

Regardless of the rate at which photosynthesis has increased, scientists agree that excess carbon dioxide is boosting the growth of plants. Trees are becoming leafier, and there is more wood. The wood is where most of the carbon is stored in the plant.

In experimental research, scientists exposed plants to double the normal concentration of carbon dioxide found in the atmosphere. Under these increased carbon dioxide conditions, the composition of the leaf tissues changed. This made the leaves tougher for herbivores to eat and made it harder for insect larvae to grow.

Scientists have also observed that when plants are exposed to increasing levels of carbon dioxide, the size of the stomatal pores on a leaf increases.

Stomata also have a role in water transport in the plant.

Explain the role of stomata in water transport.

Read the passage below. Use the information in the passage and your own knowledge to answer the questions that follow.

Antitranspirants

Antitranspirants are substances applied to plants to reduce water loss. There are three types of antitranspirant, film-forming compounds, stomatal regulators and reflective compounds.

The first type of antitranspirant contains film-forming compounds. These compounds are oils or waxes that are mixed with water to form an emulsion. This emulsion is then sprayed onto the leaves of plants. The emulsion forms a physical barrier that covers the stomata. The film is designed to prevent water loss but allow gas exchange. Scientists have found that the film-forming antitranspirant is effective in increasing yield and increasing photosynthesis in drought conditions. The increased leaf turgor in plants sprayed with film, compared to control plants, shows that the film decreases water loss and maintains turgor in drought conditions.

Film-forming antitranspirants are used in horticulture to reduce water stress. This can occur during storage, transport and planting of container grown plants. Application of the antitranspirant before transplanting, helps the plant survive until the root system is established. The film-forming compounds are used to reduce drying out in rolled turf and in transporting flowering plants and trees with root balls.

The second type of antitranspirants are stomatal regulators that reduce the size of the stomatal pore. Stomatal pores affect diffusion as well as transpiration. Therefore, photosynthesis and growth may change when stomatal regulators are applied to leaf surfaces. If the stomatal pores close completely this will stop photosynthesis. However, if stomatal openings are only reduced in size, transpiration will be reduced but some photosynthesis will continue.

The third type of antitranspirants are reflective compounds. These work by adding a white coating to leaves. This changes the amount of light that is reflected by the leaf surface. The coating is only applied to the upper surface of leaves so does not block the stomatal pores. Coating a leaf with a reflective chemical can reduce leaf temperature, transpiration rate and also increase the efficiency of water use. Experiments show that transpiration rate can be reduced by up to 30% and leaf temperature reduced from $40^{\circ} \mathrm{C}$ to $30^{\circ} \mathrm{C}$ after a coating of reflective compound is applied to leaf surfaces.

Crops depend on photosynthesis for growth and final yield. Therefore, it is unlikely that currently available antitranspirants would increase the yield of a crop unless the crop suffers from a low water supply or very high rates of evaporation. Spraying film-forming or stomata regulating antitranspirants on a field-grown cereal crop under drought conditions, produced a grain yield increase of 17%. Experiments also show that any effect that antitranspirants have on the minerals supplied to the leaves has little effect on plant growth.

Explain why reducing leaf temperature reduces transpiration rate (Lines 28 to 32).

A student investigates the rate of evaporation from a clay pot and the rate of transpiration by a plant. The clay pot is porous and has small holes that allow water to evaporate.

The student keeps the clay pot and the plant in the same conditions next to a closed window. He measures the rates at different times of the day.

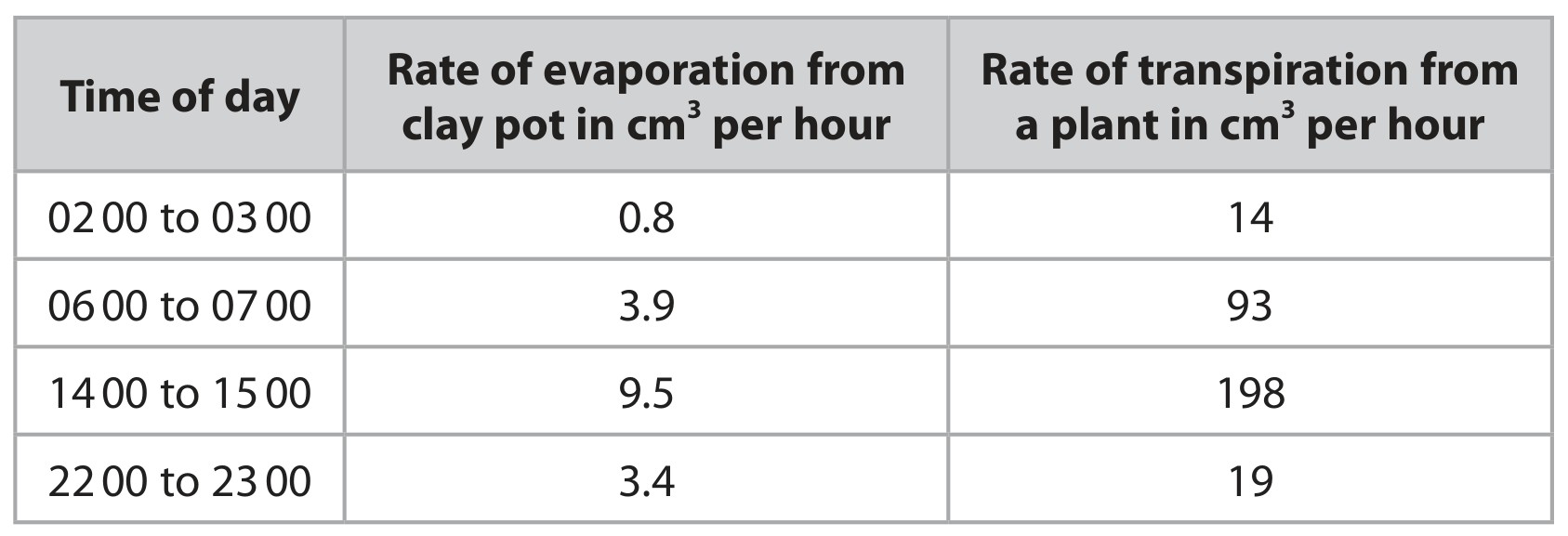

The table shows the student's results.

Draw a labelled diagram of the apparatus the student could use to determine the rate of transpiration by a plant.

Read the passage below. Use the information in the passage and your own knowledge to answer the questions that follow.

Schistosomiasis

Schistosomiasis is an infection caused by a parasitic worm called a schistosome. The immature or larvae of the worm live in rivers and lakes in tropical parts of the world.

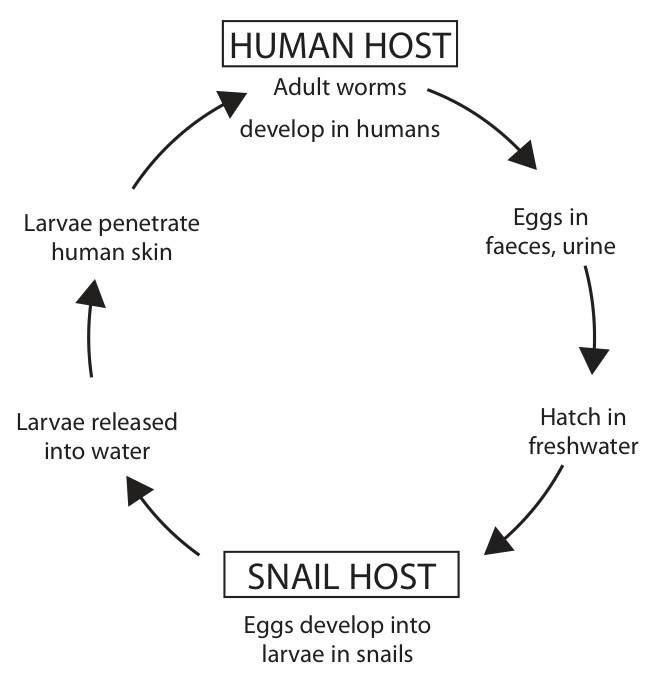

The diagram shows the life cycle of the schistosome worm.

Some people in tropical parts of the world use water from these rivers and lakes for their daily lives. These people risk infection because the larvae burrow into their skin. The larvae are then transported to other parts of the body where they damage organs such as the kidneys, intestines, lungs and brain. The larvae develop into adult worms.

The adult worms lay eggs in the human body. Some of these eggs are destroyed by the immune system, but most eggs survive. These eggs can get into water if faeces or urine from infected people pass into rivers or lakes. In the water, the eggs develop into small larvae which grow inside freshwater snails. Larvae are released from the snails and infect any person they contact. These larvae develop into adult worms inside the human body.

Doctors diagnose schistosomiasis when they find eggs in the faeces or urine of infected people. Infected people also have blood cells in their urine and antibodies for the pathogen in their blood.

At present, the drug praziquantel is used to kill the worms. A dose of 0.040 g per kg of body mass is usually effective. With no treatment, affected organs can be permanently damaged, leading to death. It is estimated that 240 million people (in the world) have schistosomiasis. Every year $8 \times 10^{-4}$ per cent of infected people die from the disease.

A vaccine is being developed using a plasmid. The plasmid has DNA inserted that makes a protein found on the body surface of the adult schistosome worm.

In one investigation, a vaccine made using the DNA plasmid was given to a group of infected people. The results showed a mean number of 21.53 worms per person in this group. In the control group, a mean number of 40.53 worms per person was found.

Name two different blood cells that would be found in the urine of infected people (line 17).

1
2

Read the passage below. Use the information in the passage and your own knowledge to answer the questions that follow.

Making Enough Blood for the World

A blood transfusion is the transfer of blood from a donor into a patient. Blood transfusions are routine medical procedures that save the lives of millions of people every year.

The first successful blood transfusions were performed in the early twentieth century after scientists discovered that there are four main blood groups, A, B, AB and O. The blood groups are due to the presence of proteins, called antigens, on the surface of red blood cells. There are two main protein antigens called A and B. If a patient is given blood with antigens different to their own cells, their immune system will make antibodies against that antigen. The antigens present on the surface of red blood cells for each blood group are shown in the table.

Currently, blood transfusions are carried out with blood that has been donated by healthy people. The World Health Organisation calculates that there are 118.5 million blood donations collected globally every year. Of these donations, 40\% are collected from a small group of high-income countries. This means that there is a shortage of blood in many countries so the hunt is on to find an alternative.

Scientists have found a way to make artificial red blood cells. They made spheres of cell membranes filled with haemoglobin. These artificial cells are then suspended in sodium chloride solution. These artificial red blood cells have no proteins on their surface. Another way of making red blood cells is being developed in the United Kingdom. A research team has used stem cells to produce red blood cells with blood group O. The red blood cells produced are then suspended in sodium chloride solution.

Both methods produce large quantities of safe red blood cells. There may be other advantages as well, artificial blood would always have the same concentration of solutes and will not clot when stored. Critics have pointed out that the artificial blood will only transport oxygen and that blood has many more functions.

Give two substances found in blood plasma that are not present in the artificial blood. (Lines 28 and 29)

1

2

Read the passage below. Use the information in the passage and your own knowledge to answer the questions that follow.

Making Enough Blood for the World

A blood transfusion is the transfer of blood from a donor into a patient. Blood transfusions are routine medical procedures that save the lives of millions of people every year.

The first successful blood transfusions were performed in the early twentieth century after scientists discovered that there are four main blood groups, A, B, AB and O. The blood groups are due to the presence of proteins, called antigens, on the surface of red blood cells. There are two main protein antigens called A and B. If a patient is given blood with antigens different to their own cells, their immune system will make antibodies against that antigen. The antigens present on the surface of red blood cells for each blood group are shown in the table.

Currently, blood transfusions are carried out with blood that has been donated by healthy people. The World Health Organisation calculates that there are 118.5 million blood donations collected globally every year. Of these donations, 40\% are collected from a small group of high-income countries. This means that there is a shortage of blood in many countries so the hunt is on to find an alternative.

Scientists have found a way to make artificial red blood cells. They made spheres of cell membranes filled with haemoglobin. These artificial cells are then suspended in sodium chloride solution. These artificial red blood cells have no proteins on their surface. Another way of making red blood cells is being developed in the United Kingdom. A research team has used stem cells to produce red blood cells with blood group O. The red blood cells produced are then suspended in sodium chloride solution.

Both methods produce large quantities of safe red blood cells. There may be other advantages as well, artificial blood would always have the same concentration of solutes and will not clot when stored. Critics have pointed out that the artificial blood will only transport oxygen and that blood has many more functions.

Some scientists have suggested that spherical artificial red blood cells transport oxygen less efficiently than normal human red blood cells.

Explain why the shape of the artificial red blood cells reduces the efficiency of
oxygen transport compared to normal human red blood cells. (Lines 18 and 19)

Read the passage below. Use the information in the passage and your own knowledge to answer the questions that follow.

Making Enough Blood for the World

A blood transfusion is the transfer of blood from a donor into a patient. Blood transfusions are routine medical procedures that save the lives of millions of people every year.

The first successful blood transfusions were performed in the early twentieth century after scientists discovered that there are four main blood groups, A, B, AB and O. The blood groups are due to the presence of proteins, called antigens, on the surface of red blood cells. There are two main protein antigens called A and B. If a patient is given blood with antigens different to their own cells, their immune system will make antibodies against that antigen. The antigens present on the surface of red blood cells for each blood group are shown in the table.

Currently, blood transfusions are carried out with blood that has been donated by healthy people. The World Health Organisation calculates that there are 118.5 million blood donations collected globally every year. Of these donations, 40\% are collected from a small group of high-income countries. This means that there is a shortage of blood in many countries so the hunt is on to find an alternative.

Scientists have found a way to make artificial red blood cells. They made spheres of cell membranes filled with haemoglobin. These artificial cells are then suspended in sodium chloride solution. These artificial red blood cells have no proteins on their surface. Another way of making red blood cells is being developed in the United Kingdom. A research team has used stem cells to produce red blood cells with blood group O. The red blood cells produced are then suspended in sodium chloride solution.

Both methods produce large quantities of safe red blood cells. There may be other advantages as well, artificial blood would always have the same concentration of solutes and will not clot when stored. Critics have pointed out that the artificial blood will only transport oxygen and that blood has many more functions.

Read the passage below. Use the information in the passage and your own knowledge to answer the questions that follow.

Schistosomiasis

Schistosomiasis is an infection caused by a parasitic worm called a schistosome. The immature or larvae of the worm live in rivers and lakes in tropical parts of the world.

The diagram shows the life cycle of the schistosome worm.

Some people in tropical parts of the world use water from these rivers and lakes for their daily lives. These people risk infection because the larvae burrow into their skin. The larvae are then transported to other parts of the body where they damage organs such as the kidneys, intestines, lungs and brain. The larvae develop into adult worms.

The adult worms lay eggs in the human body. Some of these eggs are destroyed by the immune system, but most eggs survive. These eggs can get into water if faeces or urine from infected people pass into rivers or lakes. In the water, the eggs develop into small larvae which grow inside freshwater snails. Larvae are released from the snails and infect any person they contact. These larvae develop into adult worms inside the human body.

Doctors diagnose schistosomiasis when they find eggs in the faeces or urine of infected people. Infected people also have blood cells in their urine and antibodies for the pathogen in their blood.

At present, the drug praziquantel is used to kill the worms. A dose of 0.040 g per kg of body mass is usually effective. With no treatment, affected organs can be permanently damaged, leading to death. It is estimated that 240 million people (in the world) have schistosomiasis. Every year $8 \times 10^{-4}$ per cent of infected people die from the disease.

A vaccine is being developed using a plasmid. The plasmid has DNA inserted that makes a protein found on the body surface of the adult schistosome worm.

In one investigation, a vaccine made using the DNA plasmid was given to a group of infected people. The results showed a mean number of 21.53 worms per person in this group. In the control group, a mean number of 40.53 worms per person was found.

Explain how a vaccine could protect people from schistosomiasis (lines 24 to 25).

Read the passage below. Use the information in the passage and your own knowledge to answer the questions that follow.

Making Enough Blood for the World

A blood transfusion is the transfer of blood from a donor into a patient. Blood transfusions are routine medical procedures that save the lives of millions of people every year.

The first successful blood transfusions were performed in the early twentieth century after scientists discovered that there are four main blood groups, A, B, AB and O. The blood groups are due to the presence of proteins, called antigens, on the surface of red blood cells. There are two main protein antigens called A and B. If a patient is given blood with antigens different to their own cells, their immune system will make antibodies against that antigen. The antigens present on the surface of red blood cells for each blood group are shown in the table.

Currently, blood transfusions are carried out with blood that has been donated by healthy people. The World Health Organisation calculates that there are 118.5 million blood donations collected globally every year. Of these donations, 40\% are collected from a small group of high-income countries. This means that there is a shortage of blood in many countries so the hunt is on to find an alternative.

Scientists have found a way to make artificial red blood cells. They made spheres of cell membranes filled with haemoglobin. These artificial cells are then suspended in sodium chloride solution. These artificial red blood cells have no proteins on their surface. Another way of making red blood cells is being developed in the United Kingdom. A research team has used stem cells to produce red blood cells with blood group O. The red blood cells produced are then suspended in sodium chloride solution.

Both methods produce large quantities of safe red blood cells. There may be other advantages as well, artificial blood would always have the same concentration of solutes and will not clot when stored. Critics have pointed out that the artificial blood will only transport oxygen and that blood has many more functions.

Suggest why artificial blood does not clot when stored. (Lines 26 and 27)

Aerobic respiration uses oxygen and produces ATP.

Read the passage below. Use the information in the passage and your own knowledge to answer the questions that follow.

Physic Gardens

The photograph shows a physic garden. Physic gardens are places where people grow many types of plants that produce medicinal drugs.

People have grown medicinal plants in physic gardens for thousands of years. It was estimated in 2016 that out of 30000 plant species that are known to be useful to humans, 17000 of these plant species have medicinal uses.

Medicinal plants produce a wide range of types of drugs including alkaloids, glycosides, terpenes and polyphenols.

Alkaloids are bitter-tasting, alkaline chemicals found in many different plant species. Alkaloids are often toxic in high doses so care needs to be taken when using them. Examples of alkaloids are caffeine and quinine. Caffeine, found in tea and coffee, can stimulate the adrenal glands. Quinine from the bark of the cinchona tree has been used for many centuries to kill the parasite that causes malaria.

An example of a glycoside drug is senna. This drug is extracted from the Senna plant and is used to treat constipation. The drug affects muscles in the intestine.

Terpenes are chemicals that often have strong smells. Terpenes are thought to have evolved to prevent herbivore animals from eating certain plants. An example of a plant that produces terpenes is thyme. The terpenes in thyme have an antiseptic effect which means they can be used to sterilise wounds.

Phytoestrogens are molecules found in plants such as angelica and have been used for many years to treat problems with human fertility. Examples of polyphenols are phytoestrogens, taxol and curcumin. Polyphenols have many roles within plants and many are used as medicines. Taxol is a drug extracted from yew trees and is used to prevent cell division in human body cell tumours.

Curcumin is a drug produced by the turmeric plant. Curcumin can help widen the airways to the lungs so can help people with asthma breathe.

Scientists are looking to reproduce many of these drugs artificially. They are developing genetically modified bacteria containing genes that will allow these drugs to be mass produced in fermenters.

Caffeine stimulates the adrenal glands.

Explain how drinking caffeine can lead to a change in heart rate (lines 10 to 11).

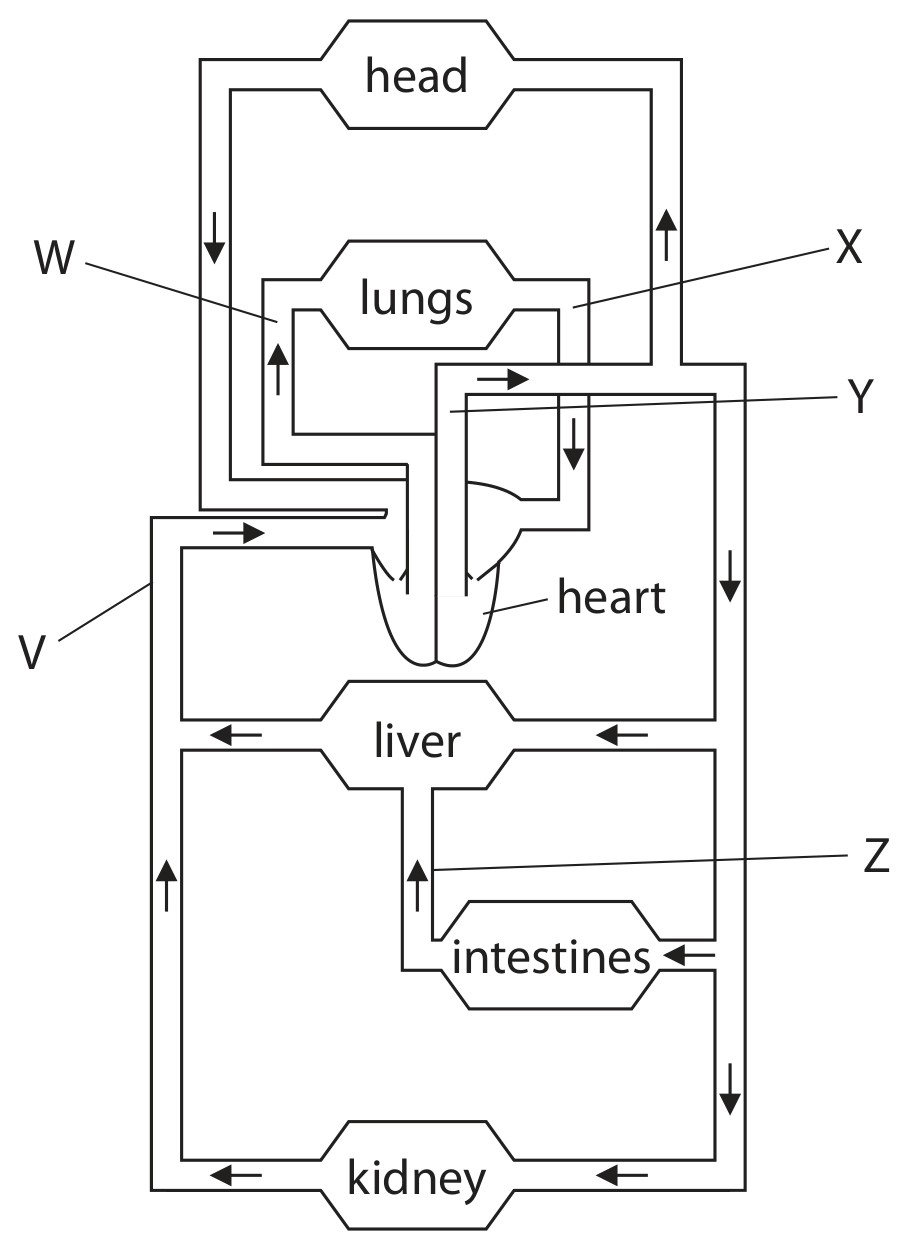

The diagram shows the human blood circulation system.

The diagram shows the human blood circulation system.

Give two differences in the structure of the blood vessel labelled V and the structure of the blood vessel labelled Y.

1

2

Aerobic respiration uses oxygen and produces ATP.

The structure of a frog heart is different from the structure of a human heart.

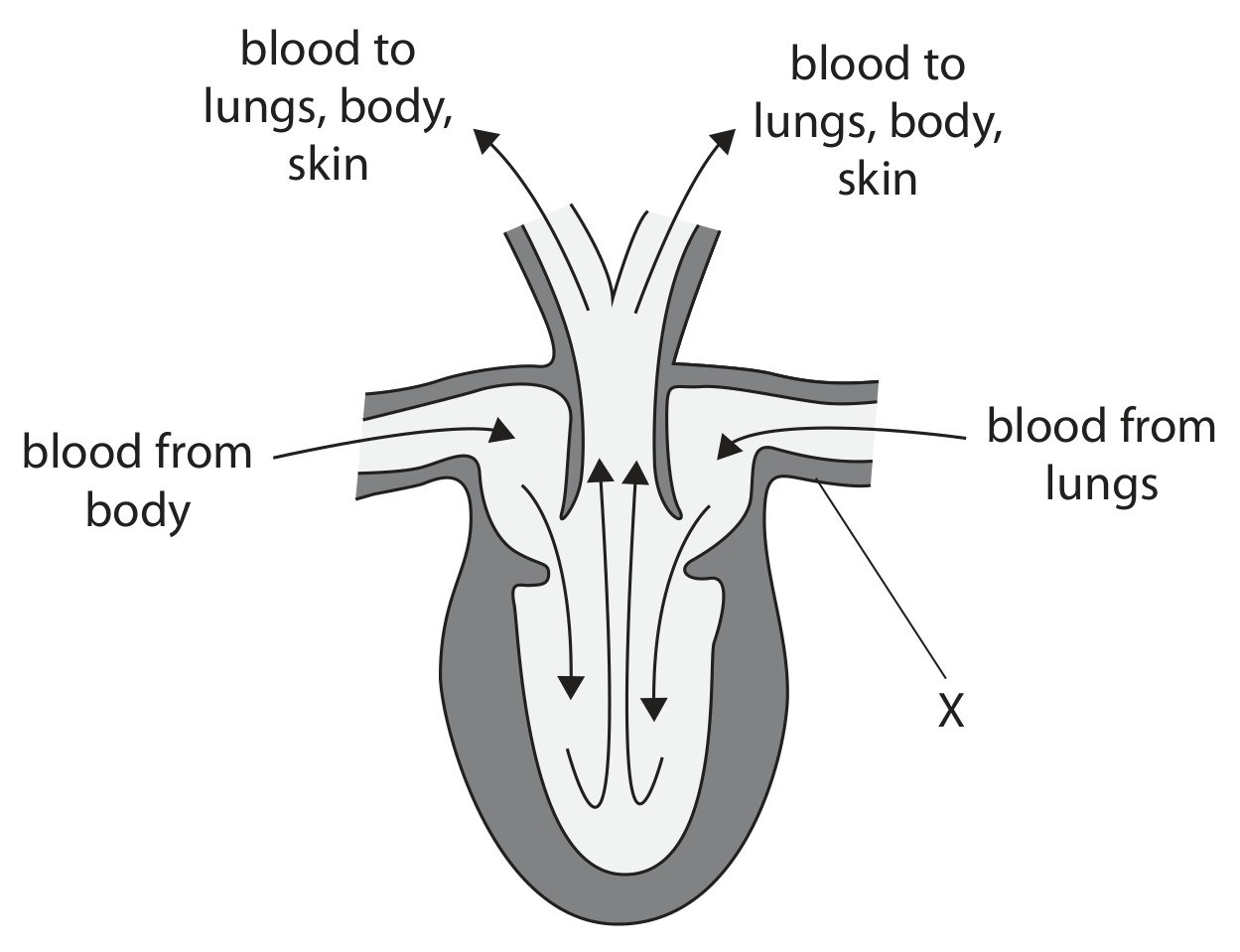

The diagram shows a section of a frog heart with arrows showing the direction of blood flow.

What is the name of the blood vessel labelled X ?
