Practise diffusion, osmosis and active transport through cell examples, practical data, graphs and explanations of concentration gradients and ATP use.
Read the passage below. Use the information in the passage and your own knowledge to answer the questions that follow.
Making Enough Blood for the World
A blood transfusion is the transfer of blood from a donor into a patient. Blood transfusions are routine medical procedures that save the lives of millions of people every year.

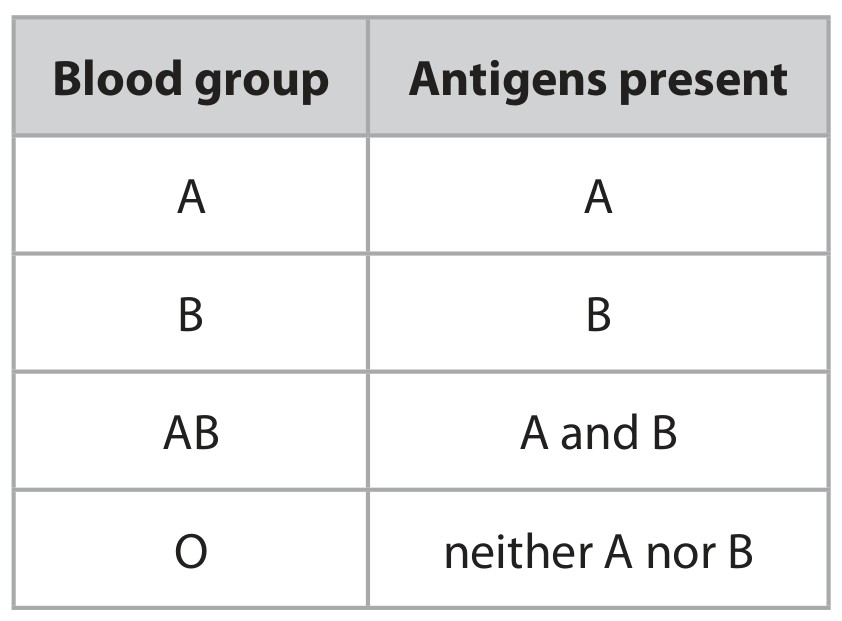

The first successful blood transfusions were performed in the early twentieth century after scientists discovered that there are four main blood groups, A, B, AB and O. The blood groups are due to the presence of proteins, called antigens, on the surface of red blood cells. There are two main protein antigens called A and B. If a patient is given blood with antigens different to their own cells, their immune system will make antibodies against that antigen. The antigens present on the surface of red blood cells for each blood group are shown in the table.
Currently, blood transfusions are carried out with blood that has been donated by healthy people. The World Health Organisation calculates that there are 118.5 million blood donations collected globally every year. Of these donations, 40\% are collected from a small group of high-income countries. This means that there is a shortage of blood in many countries so the hunt is on to find an alternative.
Scientists have found a way to make artificial red blood cells. They made spheres of cell membranes filled with haemoglobin. These artificial cells are then suspended in sodium chloride solution. These artificial red blood cells have no proteins on their surface. Another way of making red blood cells is being developed in the United Kingdom. A research team has used stem cells to produce red blood cells with blood group O. The red blood cells produced are then suspended in sodium chloride solution.
Both methods produce large quantities of safe red blood cells. There may be other advantages as well, artificial blood would always have the same concentration of solutes and will not clot when stored. Critics have pointed out that the artificial blood will only transport oxygen and that blood has many more functions.
Explain why the artificial red blood cells are suspended in sodium chloride solution instead of in water. (Line 20)
Read the passage below. Use the information in the passage and your own knowledge to answer the questions that follow.
Treating Kidney Disease

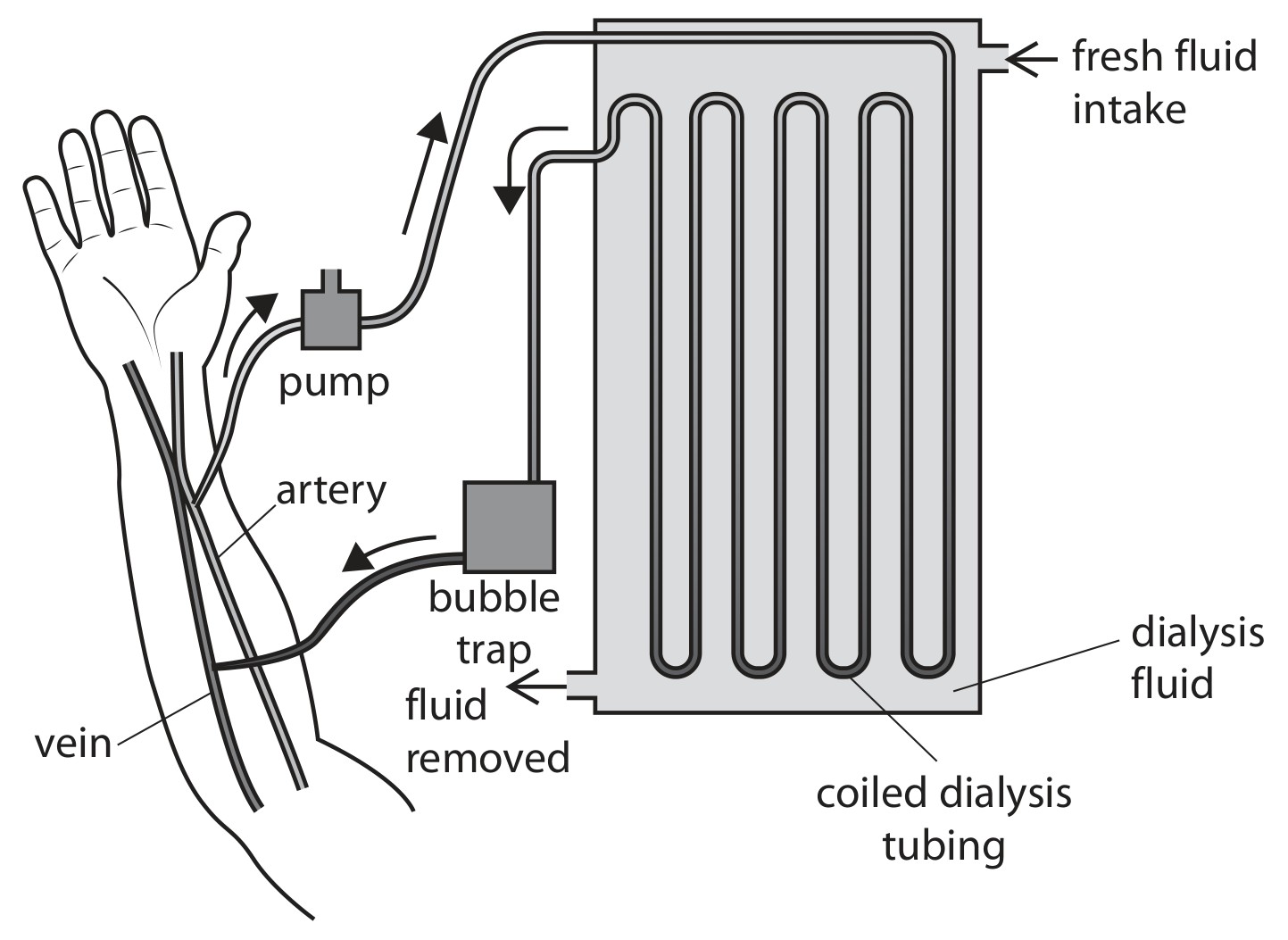

Chronic kidney disease affects approximately 12% of the world's population and many people are unable to obtain treatment. One method of treating chronic kidney disease is by dialysis. The diagram shows how kidney dialysis is done.
During dialysis, blood is taken from an artery in the arm and is pumped through a dialyser. In the dialyser, the blood passes through a long, coiled dialysis tube made of a thin partially permeable membrane. The tube is surrounded by dialysis fluid. The dialysis fluid contains glucose and ions at concentrations normally found in blood plasma, but does not contain urea. The urea passes from the blood into the dialysis fluid. The temperature in the dialyser is kept at . After passing through the dialyser, the blood is returned to a vein in the arm. Kidney dialysis can take up to three hours and must be done three times a week.
Scientists have now designed a new bioartificial kidney. This artificial kidney is a combination of engineering and living cells. This artificial kidney has a haemofilter made from artificial membranes that filter the blood. The substances filtered out of the blood then pass through a device called a bioreactor. This bioreactor absorbs useful substances back into the blood. The bioreactor is made of living nephron cells that are grown from stem cells. These cells are separated from the patient's blood by a silicon membrane to prevent the immune system rejecting them. Bioartificial kidneys are the same size as a human kidney and will be fitted inside the body to replace a kidney. The bioartificial kidney can react to changes in the body in the same way as a normal kidney.
Explain two ways that the dialyser is designed to increase the rate of removal of urea from the blood (Lines 5 to 11).
1
2
The image shows some cells from onion epidermis.
The images show samples of red onion epidermis cells before and after being placed into a 5\% sucrose solution for one hour.
Before
After
Describe how to make of a 5% sucrose solution from a 10% sucrose solution and pure water.
Explain the change in appearance of the onion cells shown in the images after being in the 5% sucrose solution for one hour.
