CAIE IGCSE Physics 4.2.3 Electromotive Force and Potential Difference Topic Practice

CourseCourseConceptConceptDocumentDocument

Covered syllabus points

4.2.3.1—Electromotive force (e.m.f.) as the4.2.3.2—E.m.f. is measured in volts (V)4.2.3.3—Potential difference (p.d.) as the4.2.3.4—P.d. between two points is measured in4.2.3.5—Use of voltmeters (analogue and4.2.3.6—E.m.f.: E = W/Q4.2.3.7—P.d.: V = W/Q

Question 1

[Maximum number: 2]

The electromotive force (e.m.f.) of a battery is 7.5 V .

Define the term electromotive force.

Question 2

[Maximum number: 2]

The unit of the two electrical quantities electromotive force (e.m.f.) and potential difference (p.d.) is the volt (V).

Question (a)

(a)

State one other similarity between e.m.f. and p.d.

[ 1 ]

Question (b)

(b)

State one difference between e.m.f. and p.d.

[ 1 ]

Question 3

[Maximum number: 5]

Question (a)

(a)

Define potential difference (p.d.).

[ 2 ]

Question (b)

(b)

State the equation which defines electromotive force (e.m.f.) E.

[ 1 ]

Question (c)

(c)

The e.m.f. of a battery is 9.0 V . The battery is in a circuit.

Calculate the work done by the battery when it moves a charge of 30 C around a complete circuit.

work done =
[ 2 ]

Question 4

[Maximum number: 1]

The unit of the two electrical quantities electromotive force (e.m.f.) and potential difference (p.d.) is the volt (V).

State one other similarity between e.m.f. and p.d.

Question 5

[Maximum number: 2]

Define potential difference (p.d.).

Question 6

[Maximum number: 1]

What is the unit of potential difference (p.d.)?

A

ampere

B

coulomb

C

coulomb / second

D

volt

Question 7

[Maximum number: 1]

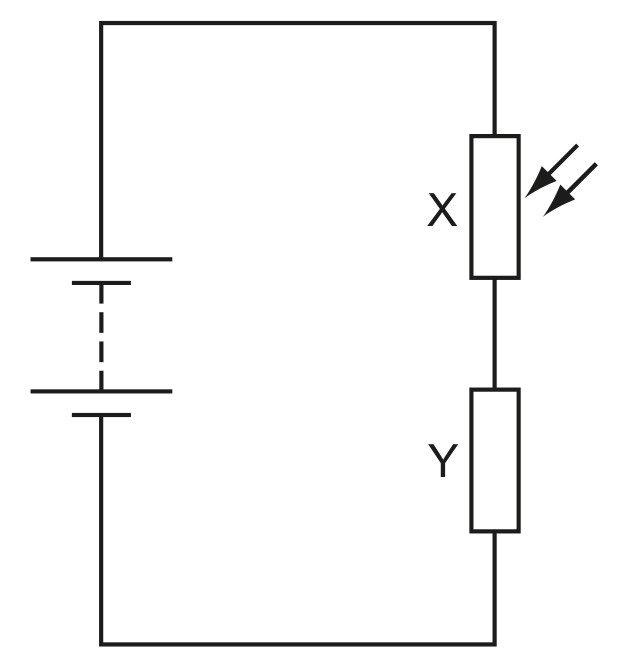

Fig. 8.1 shows a circuit.

Fig. 8.1

Fig. 8.1

The potential difference (p.d.) across component Y is measured with a voltmeter.

On Fig. 8.1, draw the symbol for the voltmeter and its connections to the circuit.

Question 8

[Maximum number: 2]

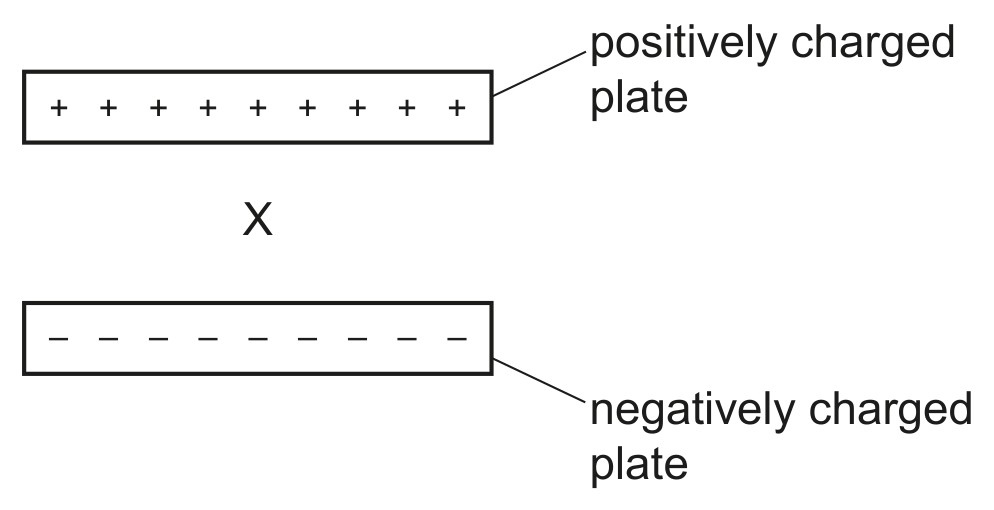

Fig. 7.1 shows two charged metal plates. X marks the position of the centre of the space between the plates.

Fig. 7.1

Fig. 7.1

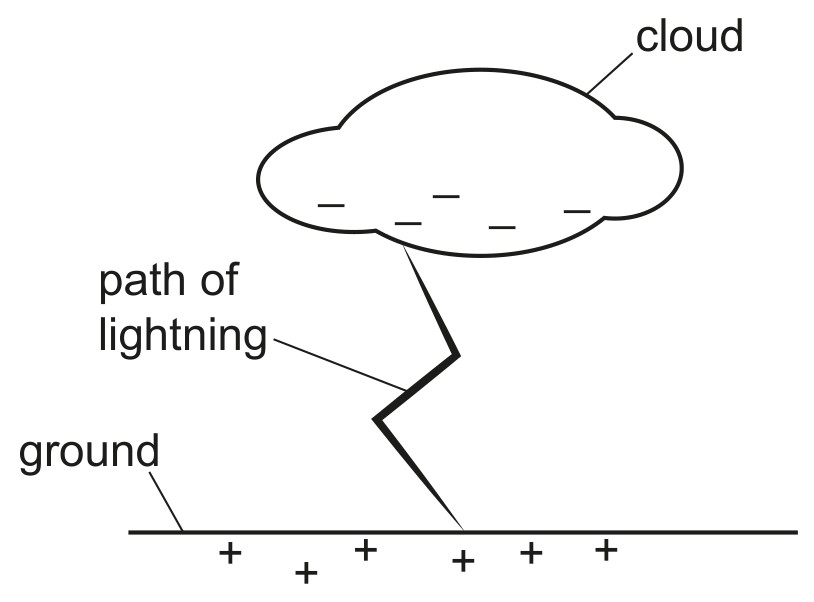

During a thunderstorm, an electric field is set up between a cloud and the ground. Charges on the cloud and on the ground are shown in Fig. 7.2.

Fig. 7.2

Fig. 7.2

The lightning shown in Fig. 7.2 discharges a current of 28000 A for 0.0012 s .

The lightning transfers 1.2×108 J1.2 \times 10^{8} \mathrm{~J} of energy.

Calculate the potential difference between the base of the cloud and the ground.
potential difference =
[Total: 7]
