CAIE IGCSE Physics 4.2.3.5 Use of Voltmeters Analogue and Questions

Practise using analogue and digital voltmeters on suitable ranges to measure p.d. between two points in a circuit, including correct parallel connections.

Syllabus
2026–2028
Course
Physics 0625

Exam points

  • Connect a voltmeter in parallel across the component measured, identify that a voltmeter measures potential difference, and read analogue and digital voltmeter scales with appropriate units.

CAIE IGCSE Physics 4.2.3.5 Use of Voltmeters Analogue and Questions question 1

[Maximum number: 1]

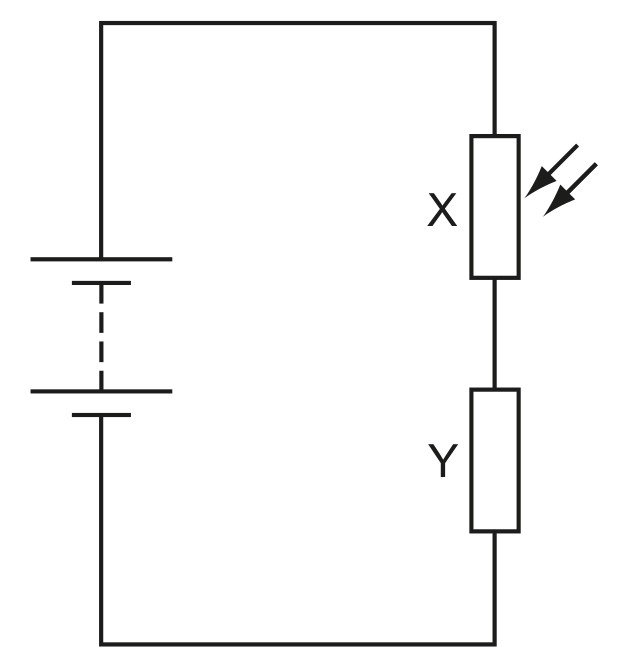

Fig. 8.1 shows a circuit.

Fig. 8.1

Fig. 8.1

The potential difference (p.d.) across component Y is measured with a voltmeter.

On Fig. 8.1, draw the symbol for the voltmeter and its connections to the circuit.
