CAIE A-Level Physics AS 3.1.4 Force As Rate of Change of Momentum Questions

Apply conservation of linear momentum to collisions and explosions in isolated systems.

Syllabus
2028–2030
Course
Physics 9702
Level
AS

Exam points

  • Apply conservation of linear momentum to collisions and explosions in isolated systems.

CAIE A-Level Physics AS 3.1.4 Force As Rate of Change of Momentum Questions question 1

[Maximum number: 1]

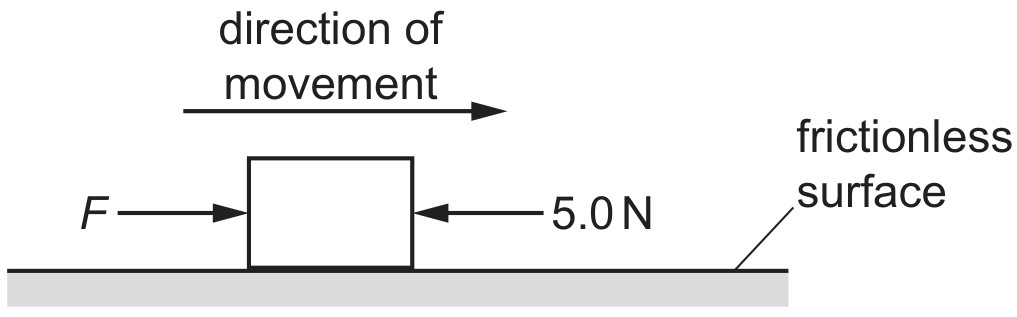

A block is moving along a horizontal frictionless surface. A constant force F and a constant resistive force of 5.0 N act on the block as it is moving in the direction of the force F, as shown.

Figure for Question CAIE A-Level Physics AS 3.1.4 Force As Rate of Change of Momentum Questions question 1 — CAIE A-Level Physics AS

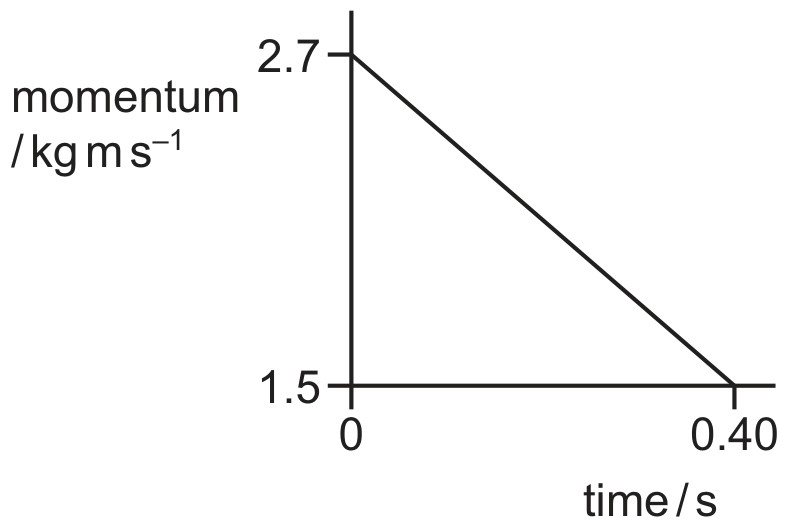

The graph shows the variation with time of the momentum of the block.

Figure for Question CAIE A-Level Physics AS 3.1.4 Force As Rate of Change of Momentum Questions question 1 — CAIE A-Level Physics AS

What is the magnitude of force F ?

A

2.0 N2.0 \mathrm{~N}

B

3.0 N3.0 \mathrm{~N}

C

5.0 N5.0 \mathrm{~N}

D

8.0 N8.0 \mathrm{~N}
