Add vectors graphically and resolve resultant forces or velocities by magnitude and direction.

[Maximum number: 4]

A load is suspended from a thread. The vertical force on the thread due to the load is 0.75 N .

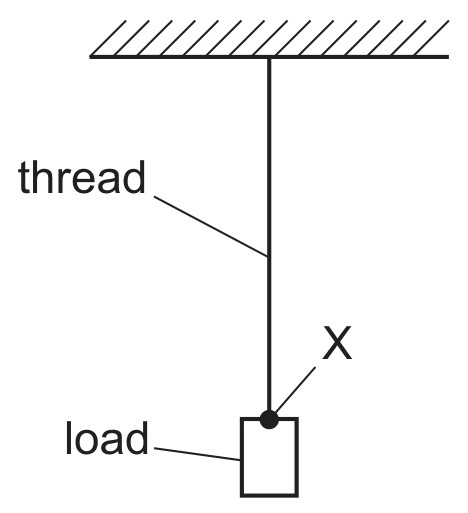

Fig. 1.1 shows the load suspended from the thread.

Fig. 1.1

A wire is attached to the load at point X and pulled horizontally to the right.
The tension in the horizontal wire is 1.2 N .
By drawing a scale diagram or by calculation, determine:
- the magnitude of the resultant of the force at X due to the load and due to the tension in the wire
- the direction of the resultant relative to the vertical direction.

Show your working. N direction of resultant relative to vertical = ${ }^{\circ}$

2 vectors at right angles & OR &
use of Pythagoras' theorem e.g. $a^{2}+b^{2}=c^{2}$

OR (force $=) \sqrt{ }\left(1.2^{2}+0.75^{2}\right)$

\end{tabular}

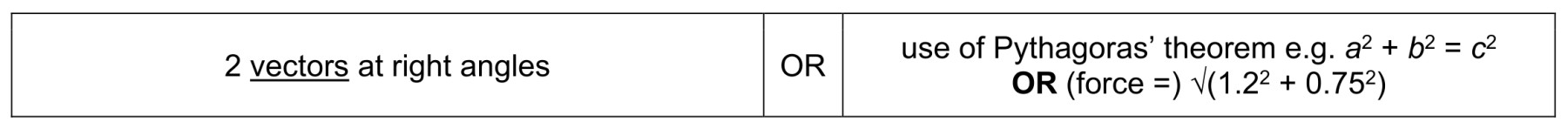

Figure for Answer to Question CAIE IGCSE Physics 1.1.7 Determine By Calculation or Questions question 1 — CAIE IGCSE Physics

1.4 (N)
58( ${}^{\circ}$ )}
resultant force including correct direction of arrow & OR & use of trigonometry to find angle e.g. $\tan \theta=1.2 / 0.75$
