IB Physics SL C.5 Doppler Effect Question Bank
Practise IB Physics SL C.5 by explaining observed-frequency changes when sources, observers or wave media move.
- Syllabus
- First assessment 2025
- Course
- Physics SL
- Level
- SL
Exam points
- Use the Doppler relationship to connect source, observer and wave speeds with observed frequency.
- Predict red or blue shifts from relative motion and explain the sign of the frequency change.
- Interpret sound or light frequency-shift data while stating assumptions about the medium and motion.
Covered syllabus points
C.5 Doppler effect question 1
This question is about the Doppler effect.
Georgia carries out an experiment to measure the speed of mosquitoes. She sets up a microphone to record the sounds of passing mosquitoes.

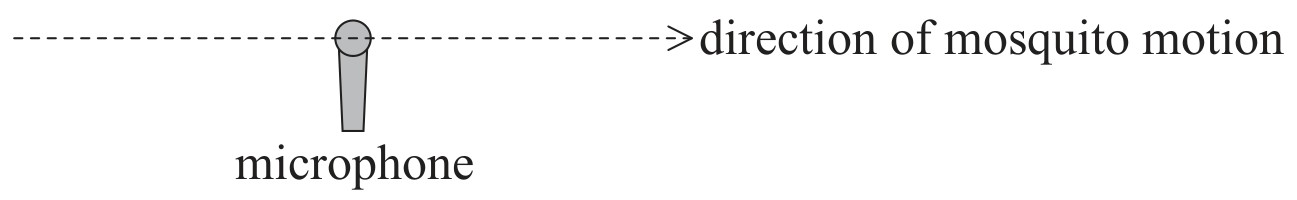

One mosquito is moving in a straight line with constant speed and passes very close to the microphone as seen in the diagram. The mosquito produces a sound of constant frequency. The speed of sound in air is .
The maximum frequency recorded is 751 Hz and the minimum frequency recorded is 749 Hz . Explain this observation.
C.5 Doppler effect question 2
This question is about the Doppler effect.

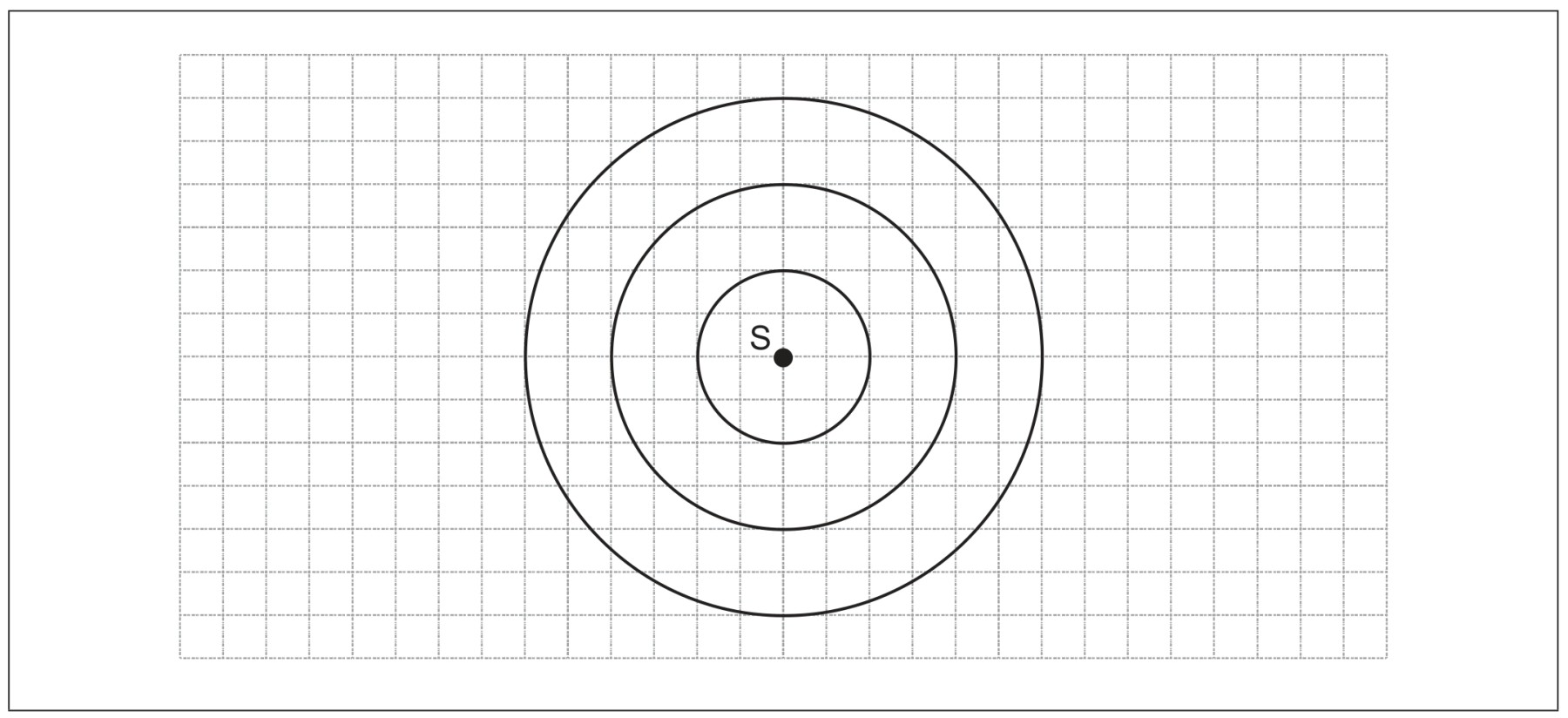

The diagram shows wavefronts in air produced by a stationary source S of sound.
The distance between successive wavefronts is equal to the wavelength of the sound.
The speed of sound is c.

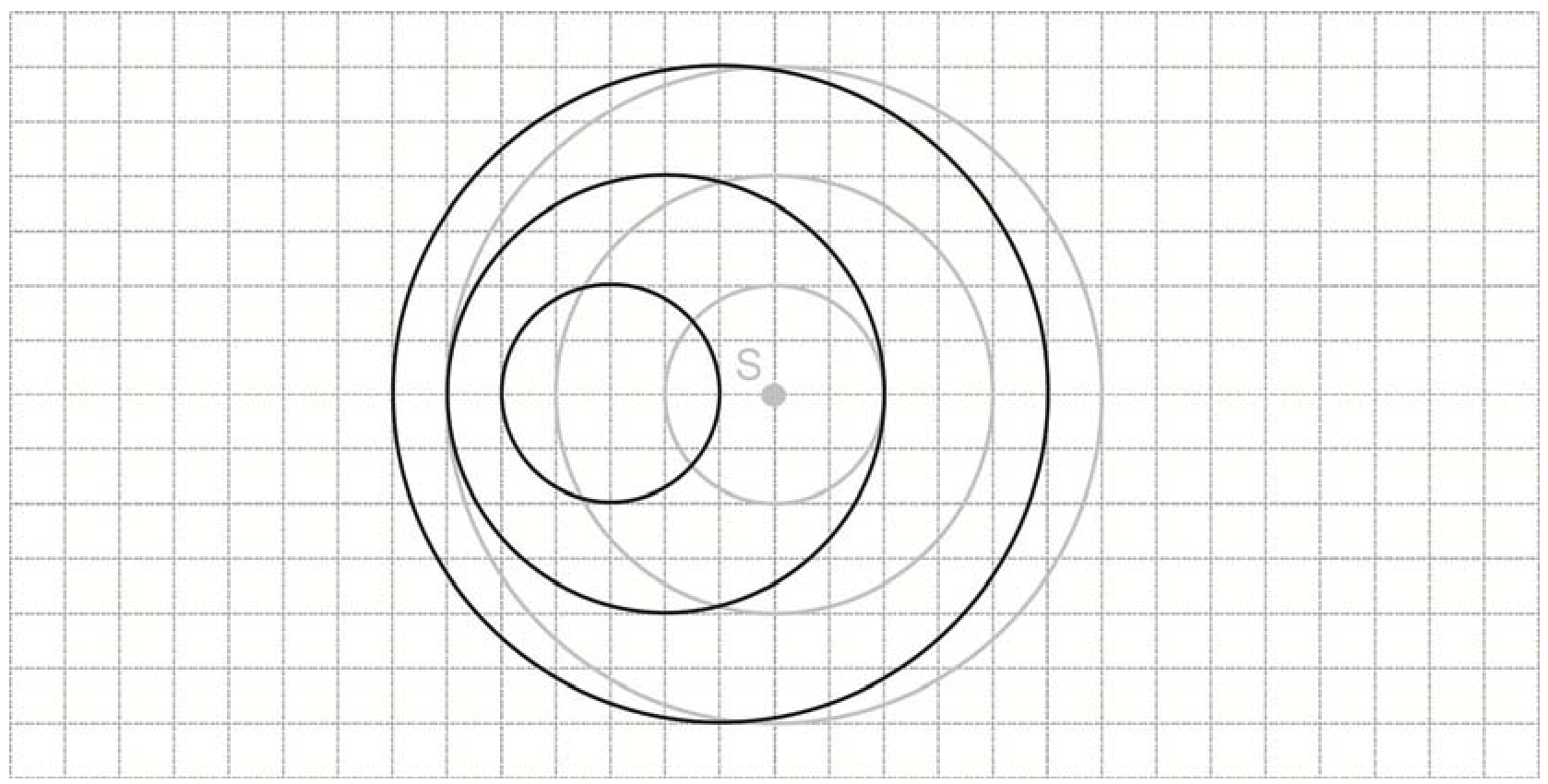

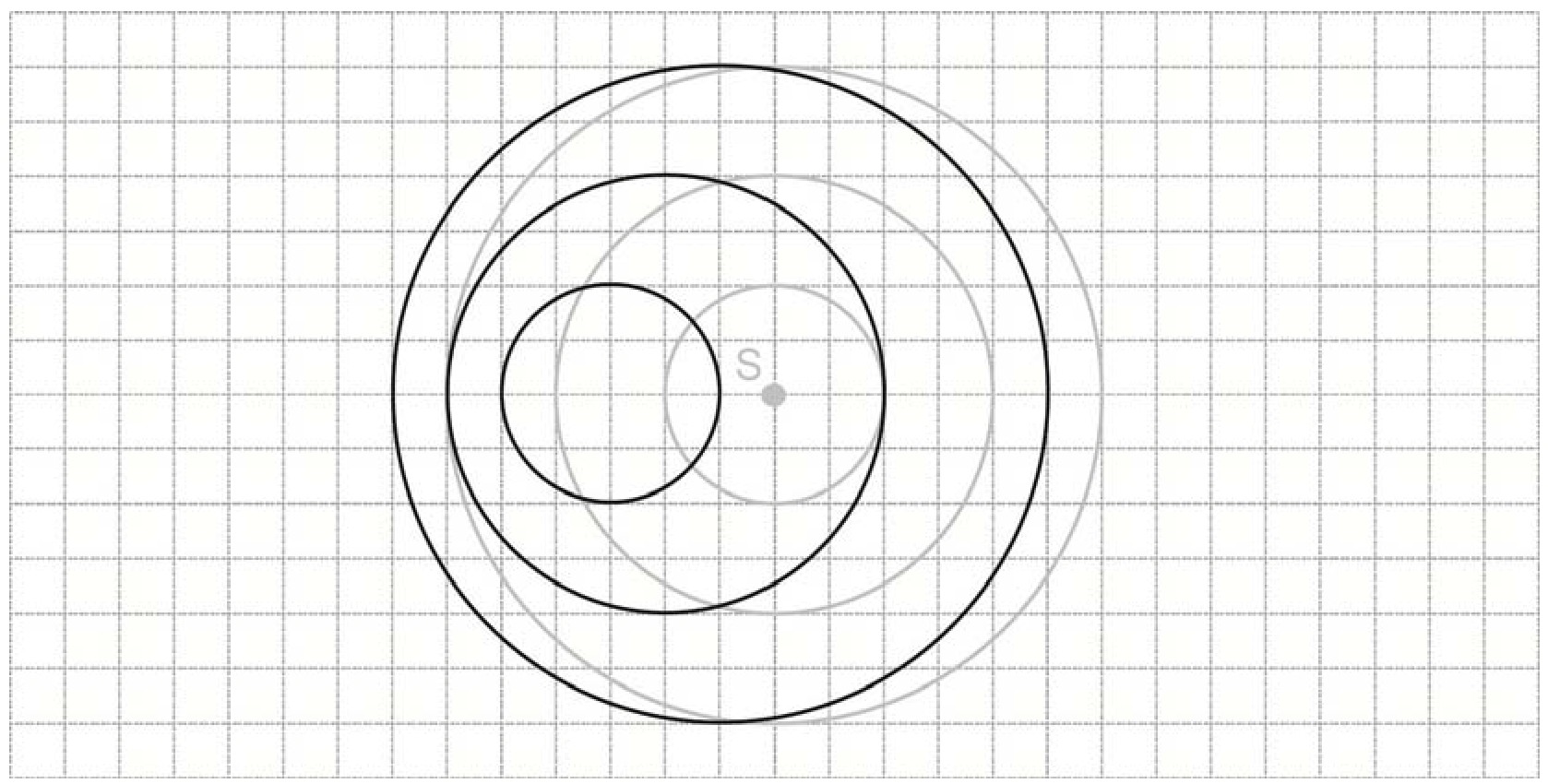

On the diagram, sketch three successive waveforts produced when S is moving to the left at a speed of 0.5 c.
C.5 Doppler effect question 3
Star A is a main sequence star.
The data for Star A and the Sun are given in a table.
Question (a)
(a)
The peak wavelength of the radiation from Star A is measured by an observer on Earth. The observed wavelength is 0.007 % less than the value in (c)(i).
Outline how this difference arises.
[ 2 ]
Question (b)
(b)
Determine the speed, in , of Star A relative to Earth.
[ 2 ]
