IB Physics SL C 2 3 Nature of Sound Waves Questions

Practise IB Physics SL C.2.3 by applying v = fλ and T = 1/f to wave graphs, sound measurements and resonance geometry.

Syllabus
First assessment 2025
Course
Physics SL
Level
SL

Exam points

  • Use v = fλ and T = 1/f to calculate speed, frequency or wavelength.
  • Read wavelength or period from wave graphs and report converted SI units.
  • Apply the wave equation to sound, strings, microwaves or resonance measurements.

Learn this topic

Study C.2.3—Nature of sound waves conceptsOpen the corresponding Concept lesson for explanations, examples and exam connections.

IB Physics SL C 2 3 Nature of Sound Waves Questions question 1

[Maximum number: 1]

This question is in two parts. Part 1 is about a thermistor circuit. Part 2 is about vibrations and waves.
Part 1 Thermistor circuit

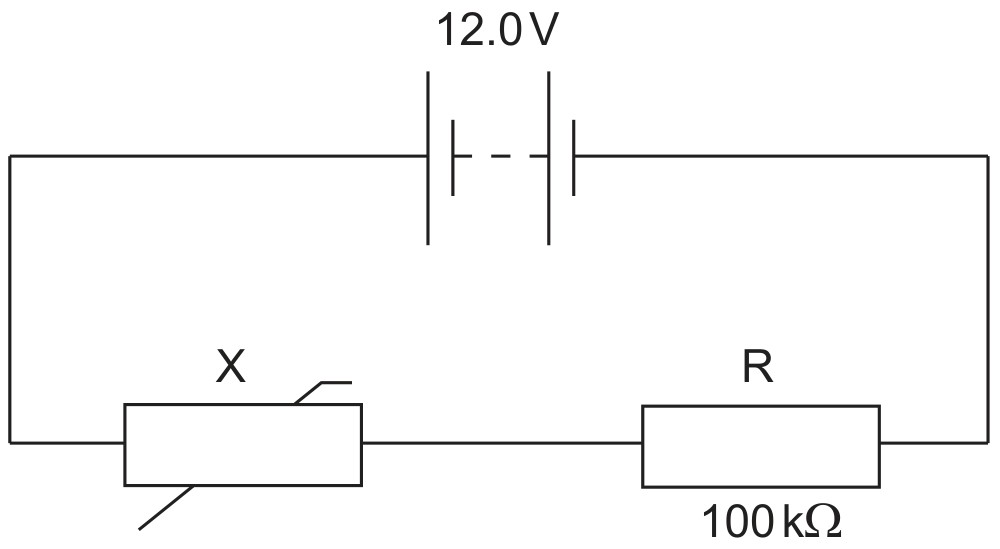

The circuit shows a negative temperature coefficient (NTC) thermistor X and a 100kΩ100 \mathrm{k} \Omega fixed resistor R connected across a battery.

Figure for Question IB Physics SL C 2 3 Nature of Sound Waves Questions question 1 — IB Physics SL

The battery has an electromotive force (emf) of 12.0 V and negligible internal resistance.

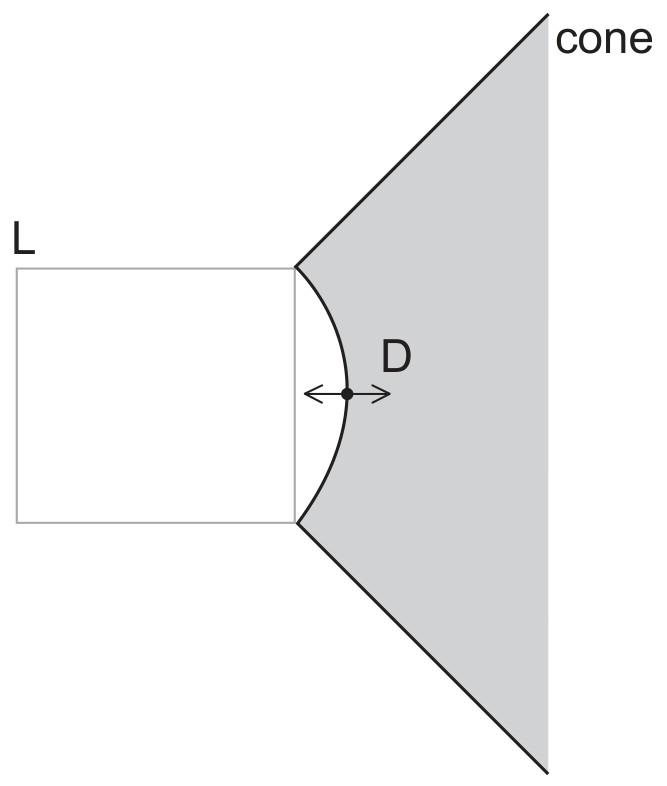

The sound waves from the loudspeaker travel in air with speed 330 m s−1330 \mathrm{~m} \mathrm{~s}^{-1}.

Calculate the wavelength of the sound waves.
