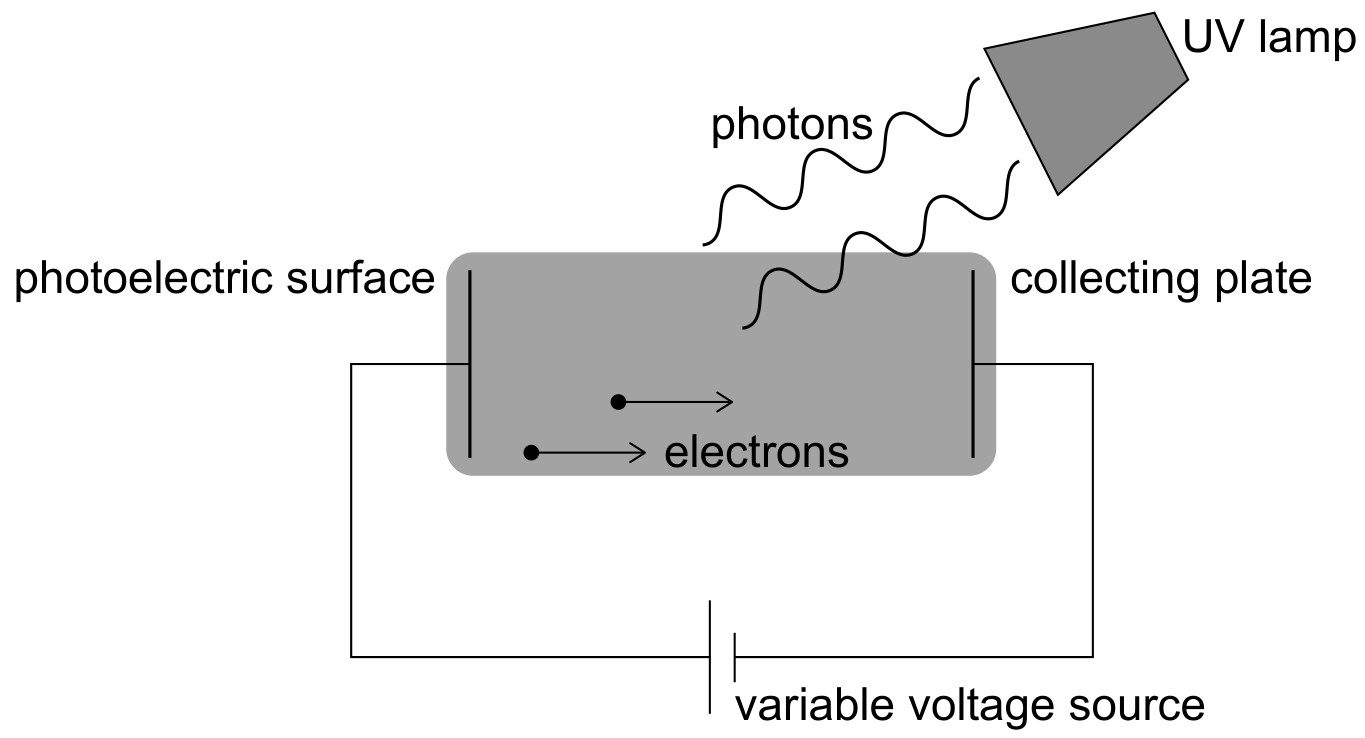

Hydrogen atoms in an ultraviolet (UV) lamp make transitions from the first excited state to the ground state. Photons are emitted and are incident on a photoelectric surface as shown.
The electric potential of the photoelectric surface is 0 V . The variable voltage is adjusted so that the collecting plate is at -1.2 V .

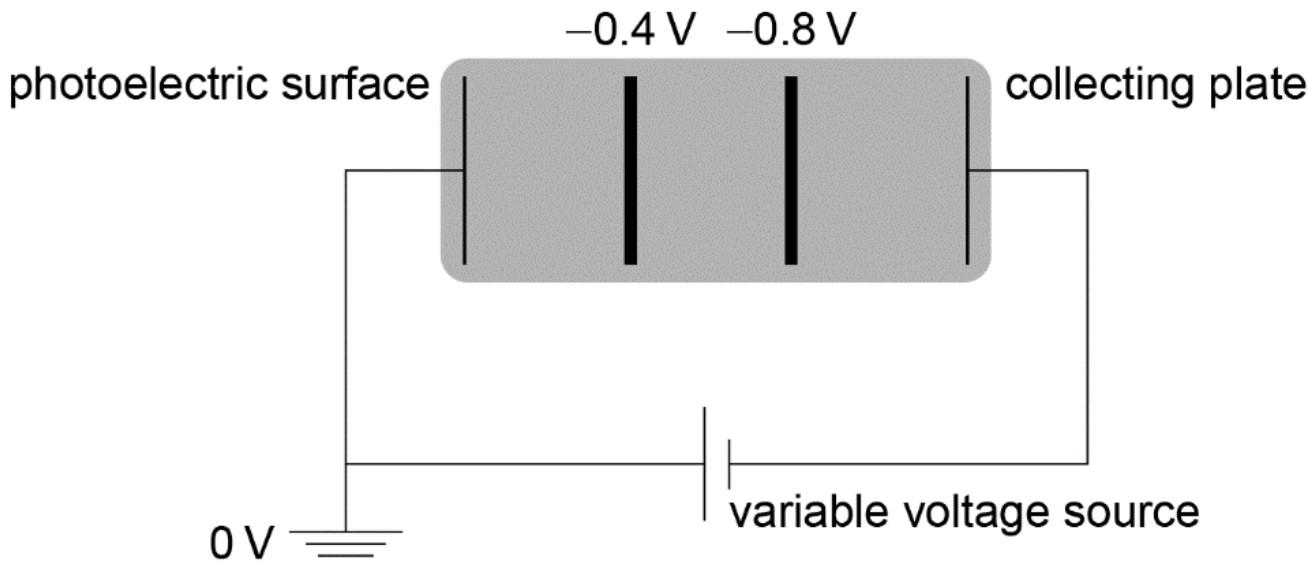

On the diagram, draw and label the equipotential lines at -0.4 V and -0.8 V .
