IB Physics HL A.5.12 Relativity of simultaneity Question Bank

Practise IB Physics HL A.5.12 by applying relativity of simultaneity concepts to exam-style physics questions.

Exam points

identify the relevant physical quantity, model or diagram
apply the correct equation and units to the evidence
justify the result using conservation laws, forces or energy relationships

[Maximum number: 3]

An observer P sitting in a train moving at a speed v measures that his journey takes a time $\Delta t_{\mathrm{p}}$ . An observer Q at rest with respect to the ground measures that the journey takes a time $\Delta t_{\mathrm{Q}}$ .

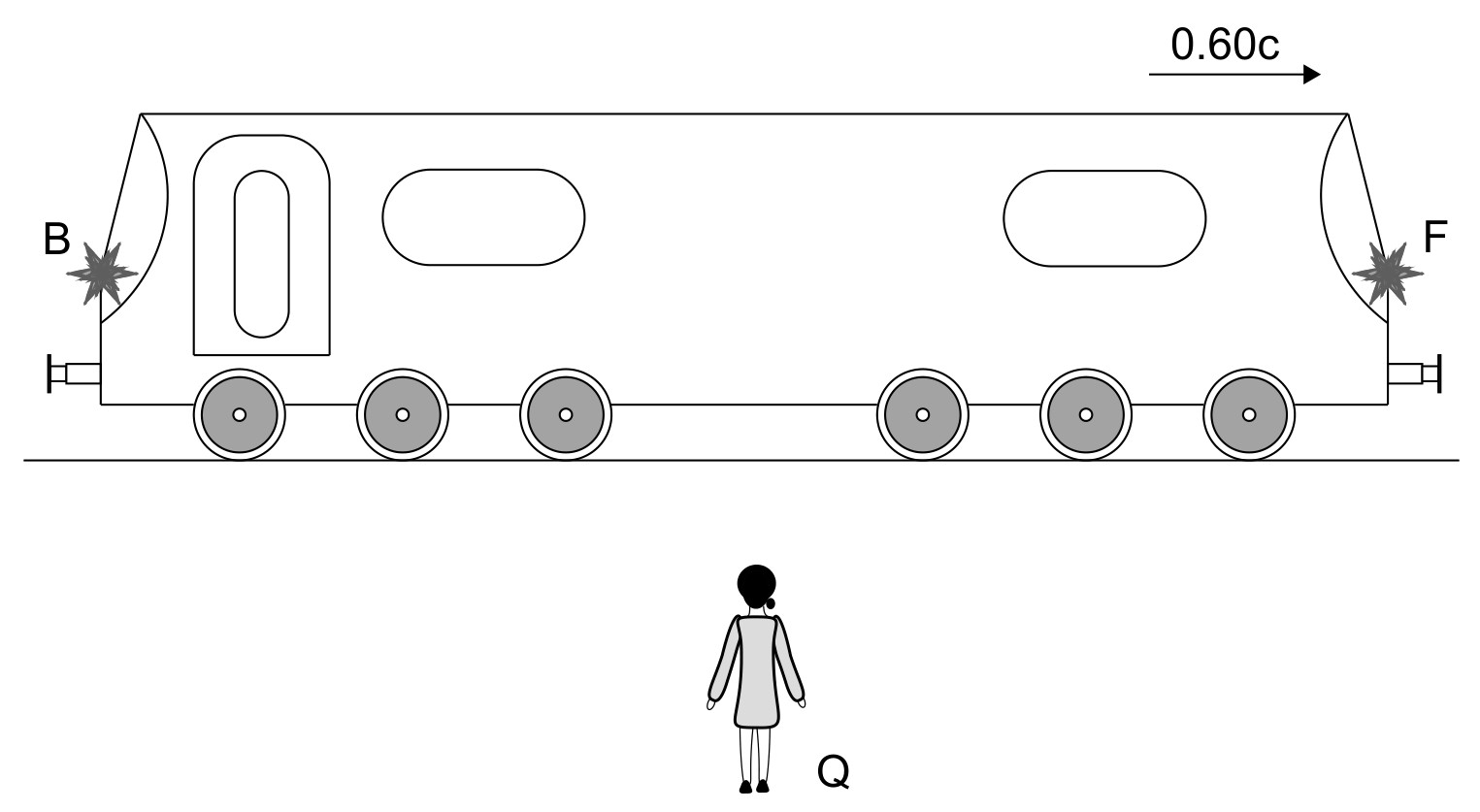

According to Q there is an instant at which the train is completely within the tunnel. At that instant two lights at the front and the back of the train are turned on simultaneously according to Q .

Figure for Question A.5.12 (HL)—Relativity of simultaneity question 1 — IB Physics HL

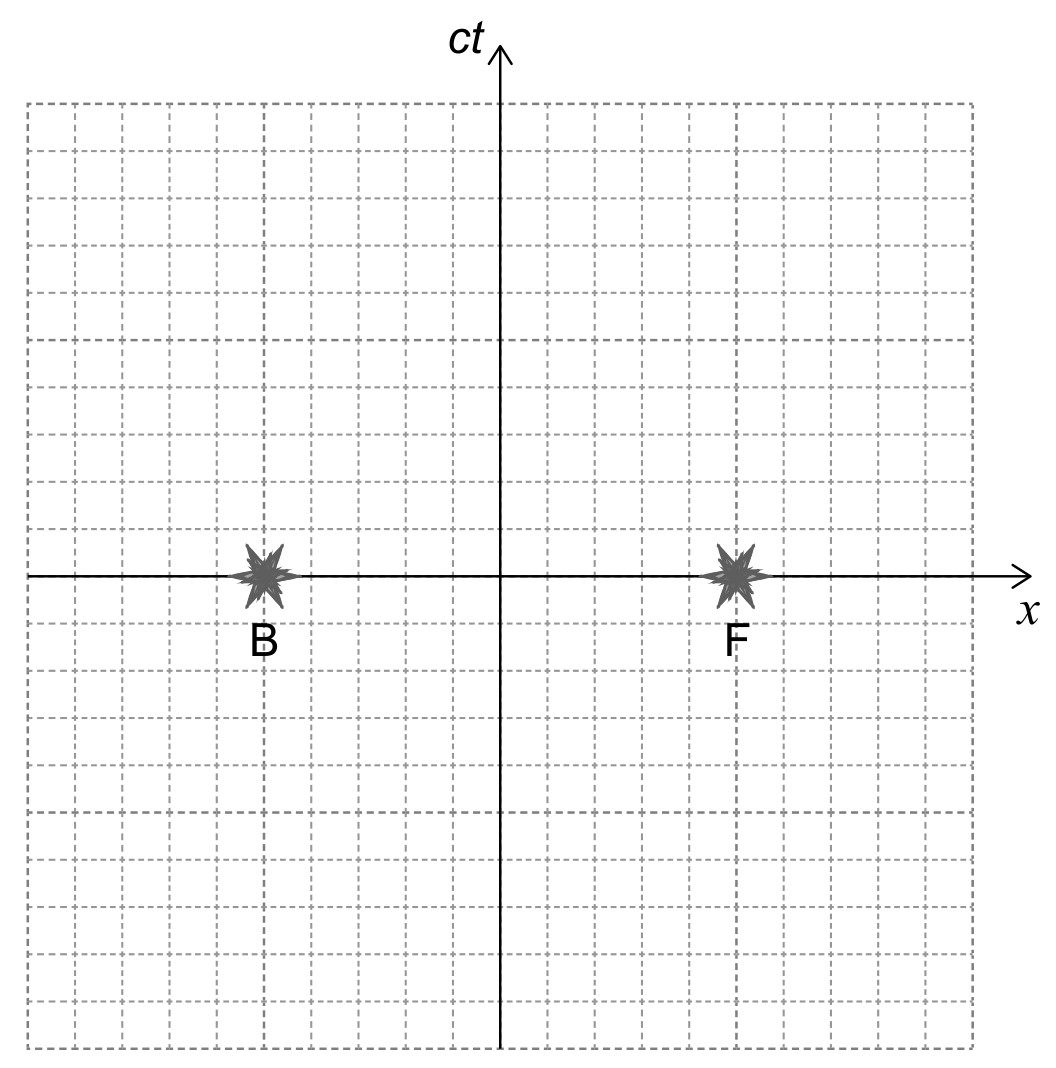

The spacetime diagram according to observer Q shows event B (back light turns on) and event F (front light turns on).

Deduce, using the spacetime diagram, which light was turned on first according to observer P.

lines parallel to the $x^{\prime}$ axis and passing through B and F intersections on the $c t^{\prime}$ axis at $\mathrm{B}^{\prime}$ and $\mathrm{F}^{\prime}$ shown light at the front of the train must have been turned on first

All question bank results loaded

A.5.12 (HL)—Relativity of simultaneity question 1
