IB Physics HL A 2 19 Newtons Second Law Forms Questions

Practise applying Newton’s second law to connected systems, resistive motion, variable-mass momentum flow and radiation pressure.

Exam points

Apply Newton’s second law as F = ma for constant mass and as F = Δp/Δt when mass changes.
Calculate resultant force, acceleration, mass or momentum rate from complete force and motion evidence, stating the system boundary.

[Maximum number: 2]

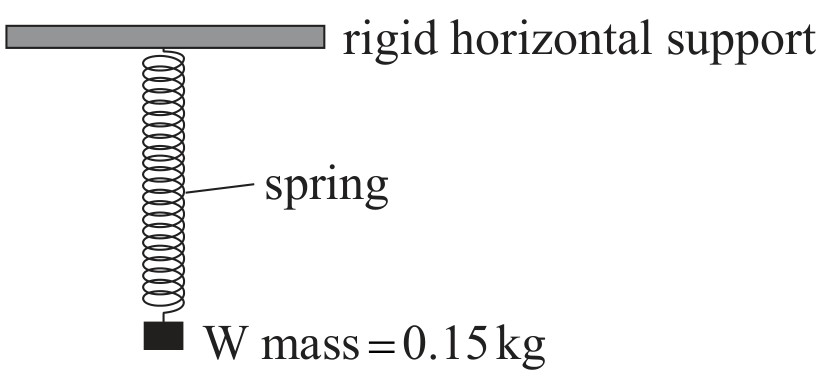

One end of a light spring is attached to a rigid horizontal support.

Figure for Question IB Physics HL A 2 19 Newtons Second Law Forms Questions question 1 — IB Physics HL

An object W of mass 0.15 kg is suspended from the other end of the spring. The extension x of the spring is proportional to the force F causing the extension. The force per unit extension of the spring k is $18 \mathrm{Nm}^{-1}$ .

A student pulls W down such that the extension of the spring increases by 0.040 m . The student releases W and as a result W performs simple harmonic motion (SHM).

Determine the maximum acceleration of W .

$F=(18 \times 0.04=) 0.72 \mathrm{~N}$ ;
acceleration $=\frac{0.72}{0.15}=4.8 \mathrm{~m} \mathrm{~s}^{-2}$ ;
