IB ESS SL 1.2.4 Types of Flows Questions
Practise IB ESS SL 1.2.4 by distinguishing location changes from transformations of matter, state and energy across cycle and ecosystem diagrams.
- Syllabus
- First assessment 2026
- Course
- ESS SL
- Level
- SL
Exam points
- Distinguish transfers as location changes from transformations of chemical nature, state or energy.
- Identify transfer and transformation processes in water, farming, nitrogen and atmospheric cycles.
- Classify energy transfers and matter transformations such as radiation, photosynthesis and respiration.
- Use an energy-flow diagram to connect stores, transfers and transformations through an ecosystem.
- Interpret hydrological diagrams by identifying processes such as fog drip, evapotranspiration and condensation.
Learn this topic
IB ESS SL 1.2.4 Types of Flows Questions question 1

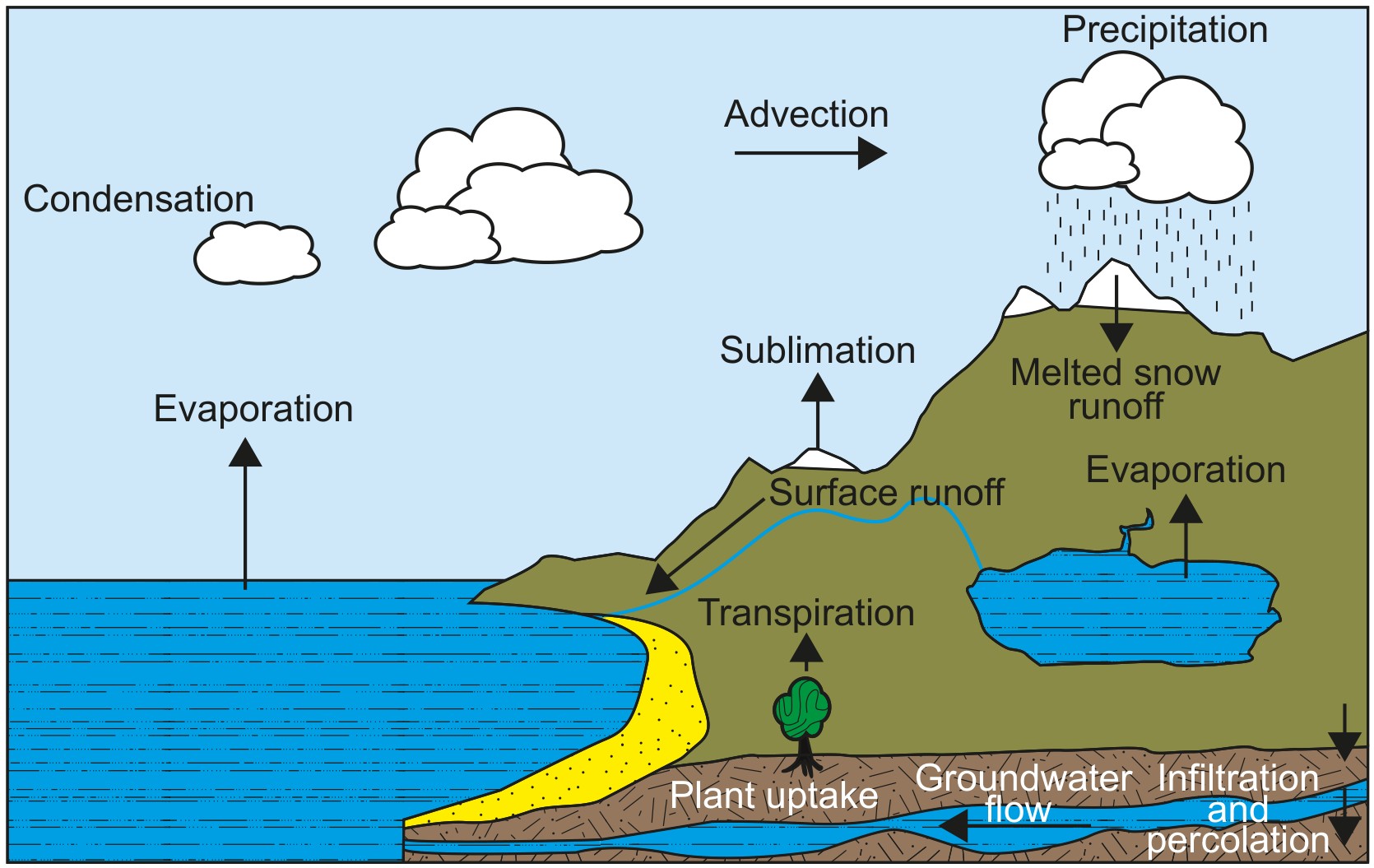

Figure:Representation of the water cycle
Identify one transfer and one transformation process shown in the water-cycle diagram shown above.
Transfer:
Transformation:
