IB Chemistry HL 3.2.9 Hl Infrared Spectroscopy Questions

Use real IR spectra to match absorption bands to bond types, interpret the functional-group region and justify structures from data-booklet ranges.

Exam points

Identify the bond responsible for a supplied IR absorption by matching its wavenumber to the characteristic data-booklet range.
Interpret the functional-group region and absent or present bands to identify hydroxyl, carbonyl, C=C, C–H, N–H, C–O or halogen bonds.
Compare or identify compounds from complete IR spectra by combining multiple absorption bands, the fingerprint region and structural constraints.

Learn this topic

Study 3.2.9 (HL)—Infrared spectroscopy conceptsOpen the corresponding Concept lesson for explanations, examples and exam connections.

[Maximum number: 2]

Urea, $\left(\mathrm{H}_{2} \mathrm{~N}\right)_{2} \mathrm{CO}$ , is excreted by mammals and can be used as a fertilizer.

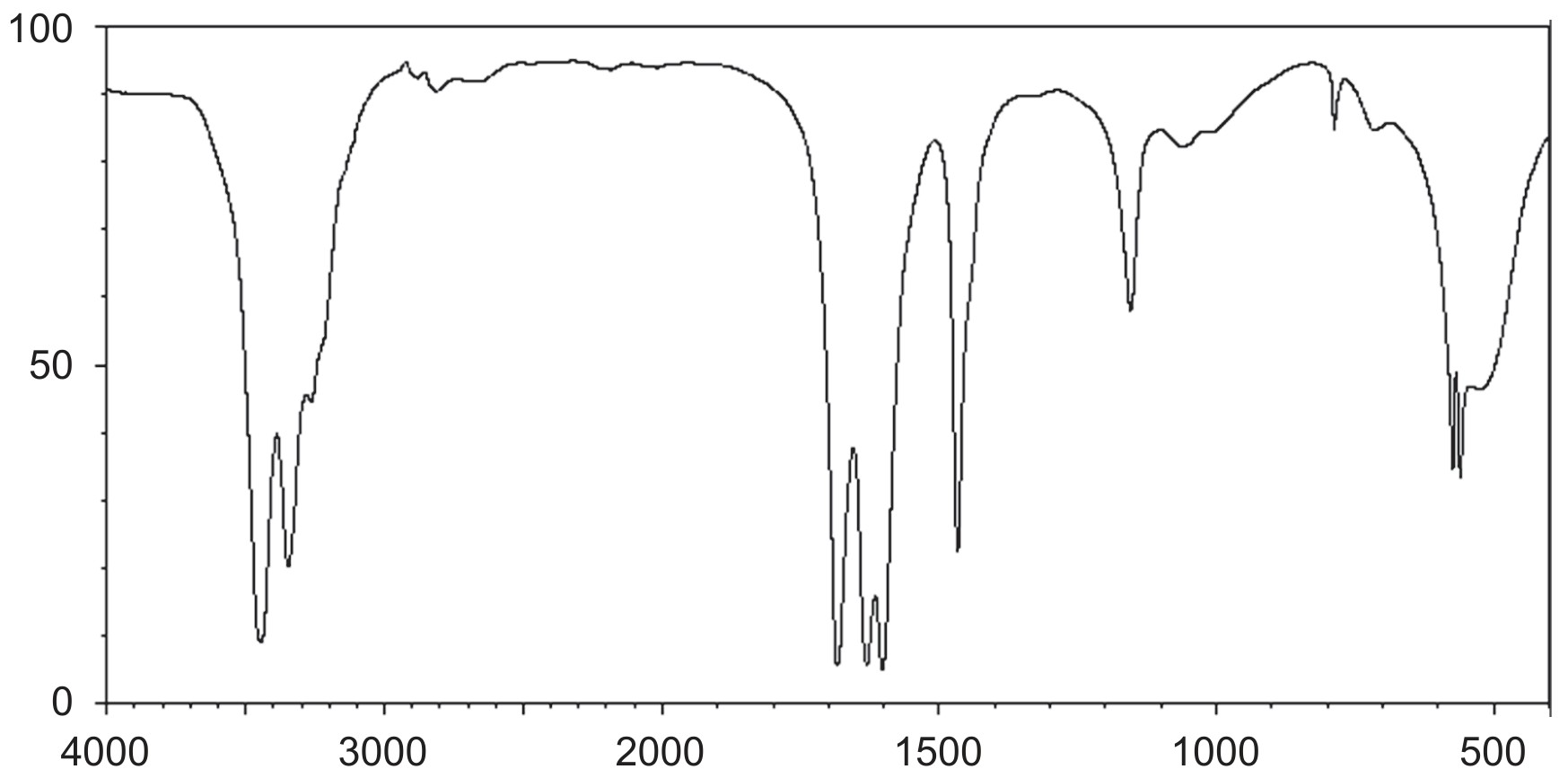

The IR spectrum of urea is shown below.

Figure for Question IB Chemistry HL 3.2.9 Hl Infrared Spectroscopy Questions question 1 — IB Chemistry HL

Identify the bonds causing the absorptions at $3450 \mathrm{~cm}^{-1}$ and $1700 \mathrm{~cm}^{-1}$ using section 26 of the data booklet.

$3450 \mathrm{~cm}^{-1}$ :

$1700 \mathrm{~cm}^{-1}$ :
