[Maximum number: 3]

This question is about carbon and chlorine compounds.

The mass and ${ }^{1} \mathrm{H}$ NMR spectra of product X are shown below. Deduce, giving your reasons, its structural formula and hence the name of the compound.

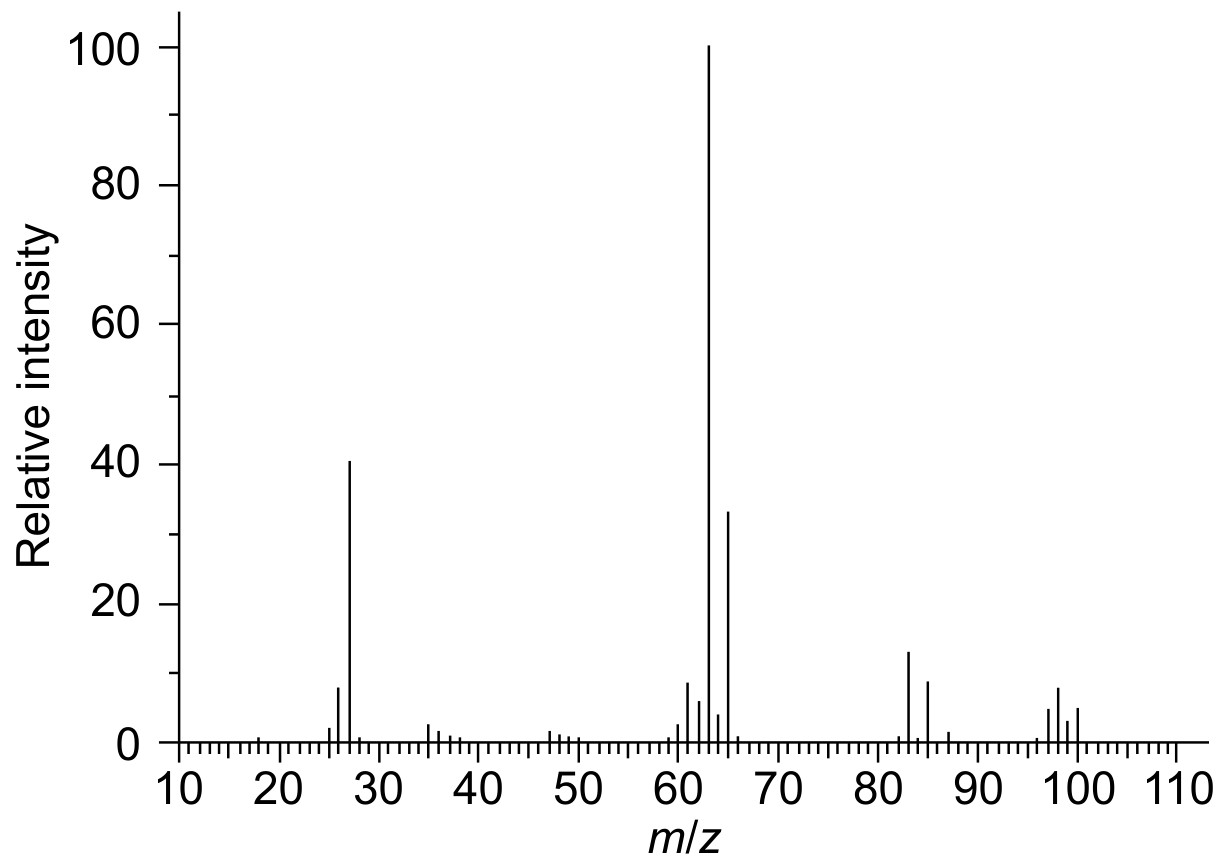

Mass spectrum:

Figure for Question 3.2.12 (HL)—Combined data analysis question 1 — IB Chemistry HL

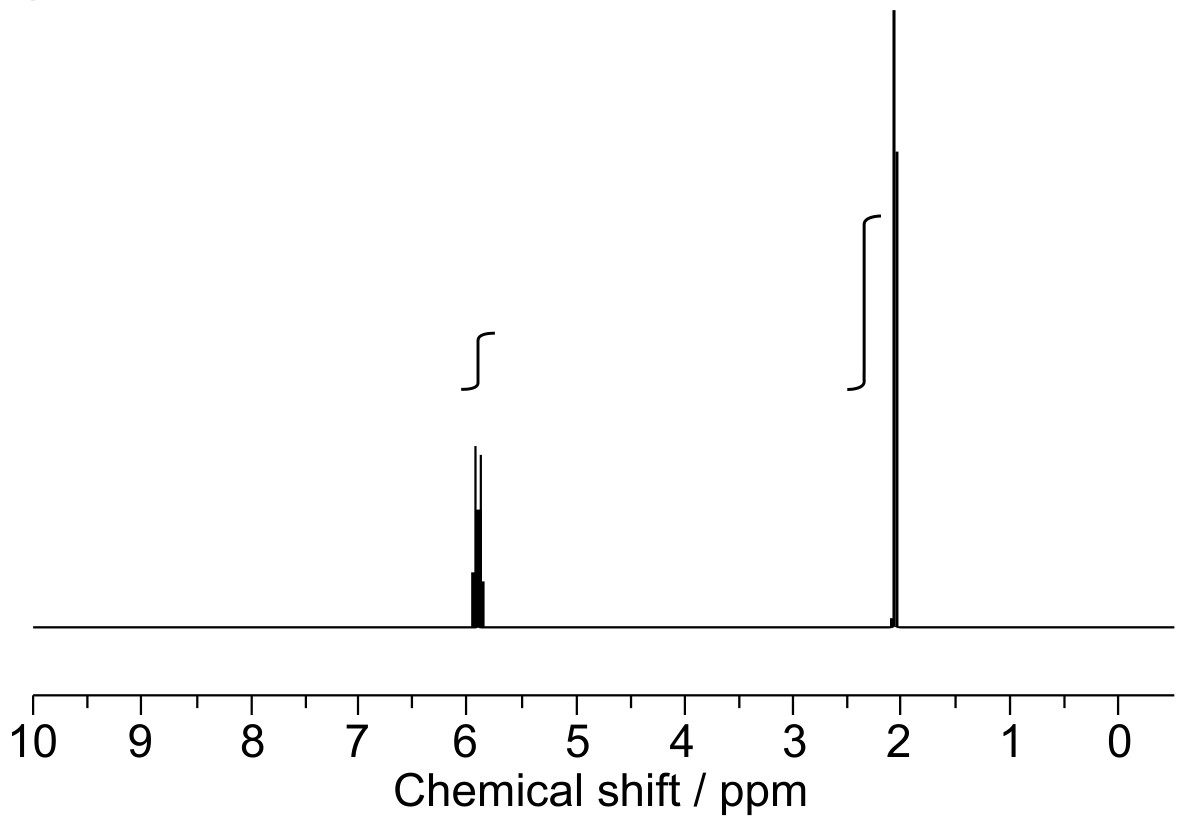

${ }^{1} \mathrm{H}$ NMR spectrum:

molecular ion peak(s) «about» m/z 100 AND «so» $\mathrm{C}_{2} \mathrm{H}_{4} \mathrm{Cl}_{2}$ «isotopes of Cl»

two signals «in ${ }^{1} \mathrm{H}$ NMR spectrum» AND «so» $\mathrm{CH}_{3} \mathrm{CHCl}_{2}$

OR

«signals in» 3:1 ratio «in ${ }^{1} \mathrm{H}$ NMR spectrum» AND «so» $\mathrm{CH}_{3} \mathrm{CHCl}_{2}$

OR

one doublet and one quartet «in ${ }^{1} \mathrm{H}$ NMR spectrum» AND «so» $\mathrm{CH}_{3} \mathrm{CHCl}_{2}$

1,1-dichloroethane

Marking guidance:

Accept "peaks" for "signals".

Allow ECF for M3 if the formula of an incorrect chlorohydrocarbon is identified.
