IB Biology SL Plant Biology: Turgid vs Flaccid Cells and Transport

Revise IB Biology SL plant biology with turgid vs flaccid cells, osmosis, water potential, xylem, phloem, stomata and exam-style transport explanations.

IB Biology SL Plant Biology: Turgid vs Flaccid Cells and Transport

Plant Biology is a high-mark IB Biology topic when you revise it as an answer system rather than a list of labels. The exam rarely rewards naming a structure on its own. It rewards the link between the structure, the process, and the wording that explains why the process works.

Current syllabus map: This article is aligned to the IB Biology first assessment 2025 roadmap, especially B3/C3 organism-level plant structure, transport, interaction and regulation.

This guide turns the source notes into a cleaner revision route. Use it after reading your class notes: first rebuild the core idea, then practise one short answer, then check whether your sentence includes the exact mechanism the markscheme expects.

Use the relevant EduNinja course pages as your base:

Do not open every link at once. Start with the notes or topic page, then move into question practice and use any PDF resource only when it helps clarify the exact idea you are revising.

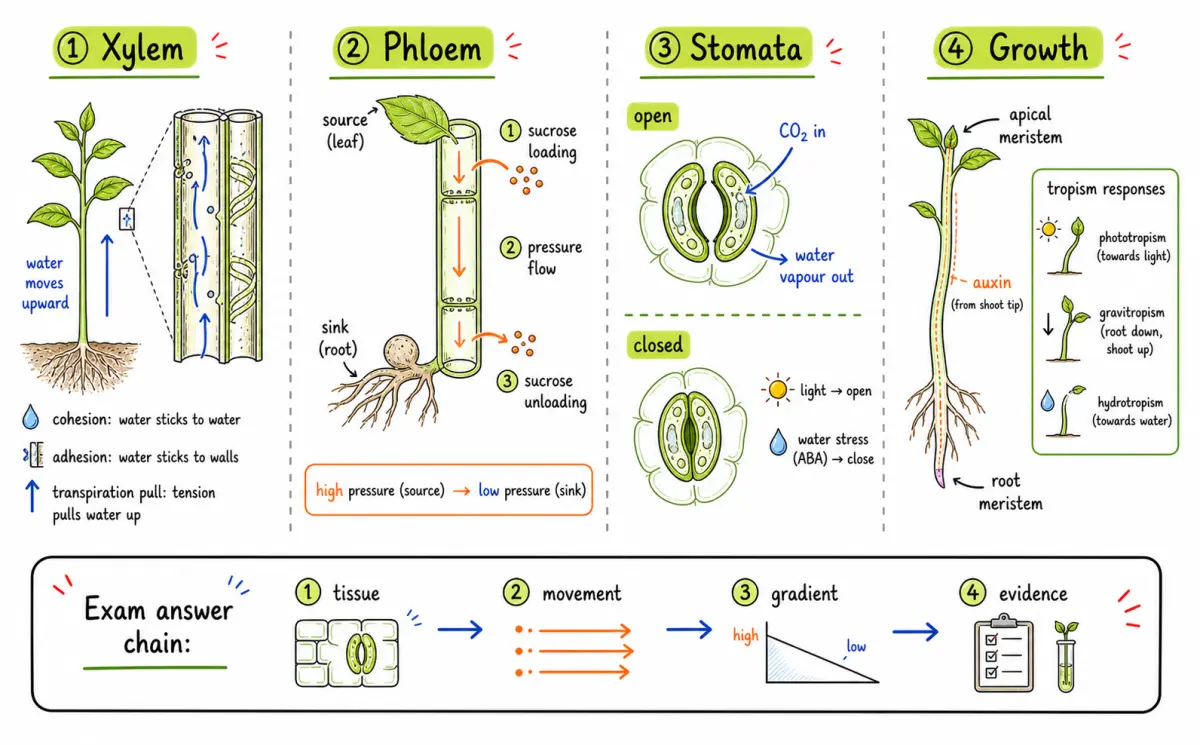

Quick Answer

  • Xylem transports water and mineral ions upward, supported by cohesion, adhesion, and transpiration pull.
  • Phloem transports sugars from sources to sinks through pressure flow.
  • Stomata balance carbon dioxide uptake with water loss.
  • Plant cells become turgid when water enters by osmosis and flaccid when water leaves, reducing turgor pressure.
  • Plant growth answers often involve meristems, auxin, and directional growth responses.

The useful rule is simple: define the term, identify the structure or process, then explain the biological consequence.

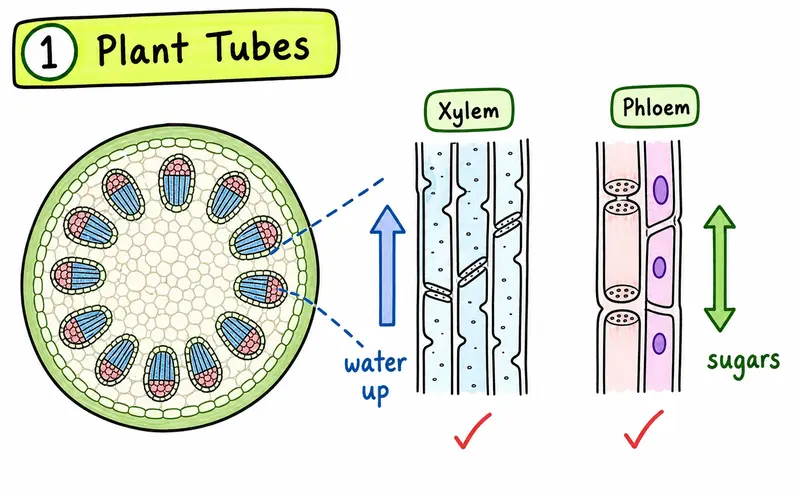

IB Biology SL plant biology hand-drawn xylem phloem transport guide

Core Concept That Gets Marks

The core concept in Plant Biology is not memorisation. It is the ability to turn a diagram or keyword into a cause-and-effect explanation.

Idea What to check How to turn it into marks
Xylem Water transport and support Explain transpiration pull and cohesion between water molecules.
Phloem Sucrose transport Use source, sink, loading, pressure, and flow.
Stomata Gas exchange and water regulation Link guard cell state to CO2 entry and water loss.
Auxin Growth response Explain unequal distribution and cell elongation.

When a question says "explain", do not stop at the label. Add the mechanism and the consequence.

Turgid vs Flaccid Plant Cells

A plant cell is turgid when water has entered by osmosis, the vacuole is full, and the cell membrane presses against the cell wall. Turgid cells help support soft plant tissue because turgor pressure keeps cells firm.

A plant cell is flaccid when water has left by osmosis and turgor pressure has fallen. The cell becomes less firm because the vacuole contains less water and the cell contents no longer press as strongly against the cell wall.

Term What happens Exam-safe wording
Turgid Water enters the plant cell by osmosis Turgor pressure increases as the cell contents press against the cell wall
Flaccid Water leaves the plant cell by osmosis Turgor pressure decreases and the cell becomes less firm
Plasmolysed The membrane pulls away from the cell wall Severe water loss causes the protoplast to shrink away from the wall

Why this matters in plant biology

Flaccid and turgid are not just vocabulary words. They connect osmosis, water potential, membrane transport, stomatal control and plant support. In an answer, name the water movement first, then explain the effect on turgor pressure.

Practise nearby ideas with IB Biology membrane transport questions, water potential questions, and plant transport questions.

Weak Answer vs Mark-Worthy Answer

Topic point Weak answer Mark-worthy answer
Xylem Names the idea but does not explain the tested relationship. Explain transpiration pull and cohesion between water molecules.
Phloem Names the idea but does not explain the tested relationship. Use source, sink, loading, pressure, and flow.
Stomata Names the idea but does not explain the tested relationship. Link guard cell state to CO2 entry and water loss.

Weak answers usually sound correct because they contain the topic word. Strong answers show the relationship that the examiner is testing.

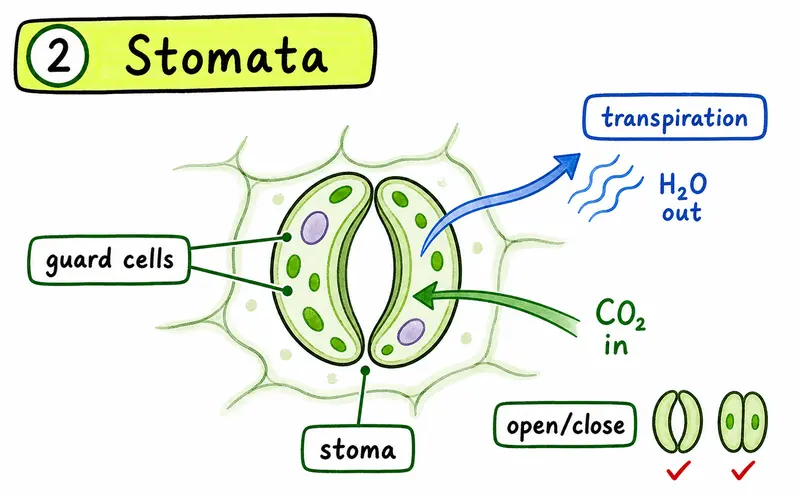

IB Biology SL plant biology hand-drawn stomata guard cells transpiration guide

Worked Example 1

Question: Explain how transpiration pull moves water upward.

Markscheme-style answer: Water evaporates from leaf surfaces, lowering pressure in the xylem. Cohesion between water molecules helps maintain a continuous column, and adhesion to xylem walls supports upward movement from roots to leaves.

Why this scores: It links a named structure or process to the reason it matters. That connection is where most explanation marks sit.

Worked Example 2

Question: Explain source-to-sink movement in phloem.

Markscheme-style answer: Sucrose is loaded into phloem at a source, lowering water potential and causing water to enter. This increases pressure, driving sap toward a sink where sucrose is unloaded and used or stored.

Why this scores: It gives the answer in a sequence. IB Biology answers often lose marks when the order is wrong, even if the vocabulary is familiar.

Question-Type Breakdown

Question type First move What the marker is looking for
Define or state Write the exact term before adding detail Precise vocabulary with no extra confusion
Label a diagram Identify the system and direction of movement Correct labels and arrows, not guessed parts
Explain Use because, therefore, or so that A visible cause-and-effect chain
Compare Pair points in the same sentence or row Both sides of the comparison
Interpret data Describe the trend before explaining it Evidence plus biological reason

Worked Example: Turgid vs Flaccid Cells

Question: A plant cell is placed in a solution with lower water potential than the cell sap. Explain what happens.

Markscheme-style answer: Water moves out of the plant cell by osmosis down a water potential gradient. The vacuole loses water, turgor pressure decreases, and the cell becomes flaccid. If water loss is severe, the membrane may pull away from the cell wall and the cell becomes plasmolysed.

Why this scores: The answer names osmosis, direction of water movement, water potential and the effect on turgor pressure.

Topic-Specific Revision Route

  1. Redraw the simplest version of the topic from memory.
  2. Add the three terms you most often confuse.
  3. Write one structure-function sentence for each key part.
  4. Answer one short exam-style question without notes.
  5. Mark the missing wording and turn it into a flashcard.

Do this before rereading a whole PDF. Rereading feels calm, but retrieval shows whether the idea is actually available under exam pressure.

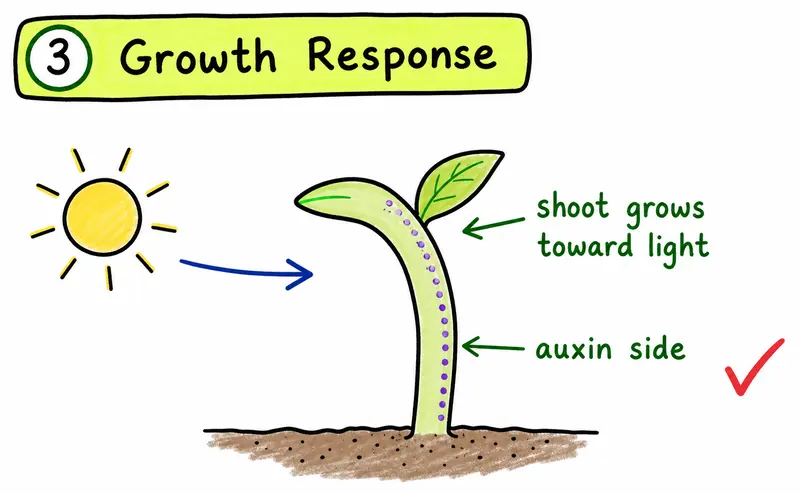

IB Biology SL plant biology hand-drawn shoot growth light auxin guide

Common Mistakes That Cost Marks

  • Saying xylem transports sugar.
  • Ignoring water potential in phloem pressure-flow answers.
  • Treating stomata as always open.
  • Describing tropism without mentioning unequal growth.

The fix is to write corrections as exact sentences, not vague reminders. "Revise more" is not useful. "Mention concentration gradient before diffusion" is useful.

Exam-Ready Mini Checklist

  • Did I define the main term accurately?
  • Did I identify the structure, process, or direction of movement?
  • Did I explain the mechanism rather than just name it?
  • Did I include units, ratios, probabilities, arrows, or labels where the question needed them?
  • Did I avoid mixing this topic with a similar process?

How EduNinja Helps

Use EduNinja as the active practice loop. Start with the notes page to rebuild the concept, move into the question bank to test it, then use flashcards or your error log to keep the correction alive.

The best next step is small: one topic, one question set, one correction list. That beats opening five resources and leaving with no marked work.

FAQ

What does flaccid mean in biology?

Flaccid means a plant cell has lost water by osmosis and has reduced turgor pressure. The cell becomes less firm because the contents press less strongly against the cell wall.

What is the difference between turgid and flaccid?

A turgid plant cell has gained water and has high turgor pressure. A flaccid plant cell has lost water and has low turgor pressure.

How should I revise Plant Biology for IB Biology SL?

Start with the core definitions, then practise one diagram or short explanation question. Mark whether your answer included the mechanism, not just the vocabulary.

Are notes enough for this topic?

Notes are useful for rebuilding understanding, but they are not enough for exam readiness. You need questions to test whether you can retrieve the idea and apply it to unfamiliar wording.

What should I do if I keep losing marks?

Look at the missing sentence in your answer. Most repeated errors come from a missing direction, missing mechanism, missing comparison, or unclear use of a technical term.

Related Study Links

Closing

Plant Biology becomes easier when every note is converted into an answer move. Name the idea, explain the mechanism, and make the mark-worthy link visible.
