A-Level Physics Electricity: Circuits, Resistance, and Power

Electricity is easy to over-revise and still get wrong, because the formulas are short but the circuit context changes everything. Current, voltage, resistance, energy, and power each answer a different question.

Use this guide to slow the problem down: identify the circuit arrangement, choose the right quantity, and then calculate with units that make physical sense.

Quick Answer

For A-Level Physics electricity, start with the circuit:

• Decide whether components are in series, parallel, or a mixed arrangement.
• Write current, potential difference, resistance, energy, and power with units.
• Use V = IR, P = IV, or energy equations only after identifying the quantity asked for.
• In series circuits, current is the same; in parallel circuits, potential difference is shared across branches.
• Explain trends with proportional reasoning, not just formula names.

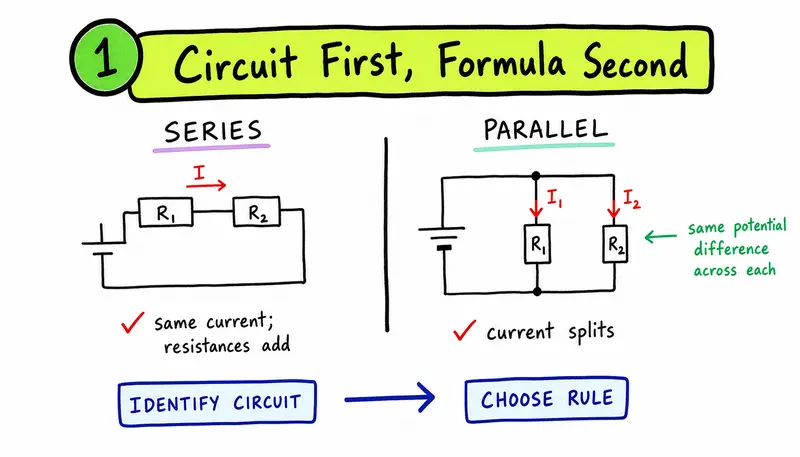

Build the Circuit Before Choosing a Formula

For A-Level electricity, the first mark is often hidden in the setup. Before using any equation, decide what the circuit is doing.

This step stops the common mistake of grabbing V = IR before deciding whether the voltage is across one component or the whole circuit.

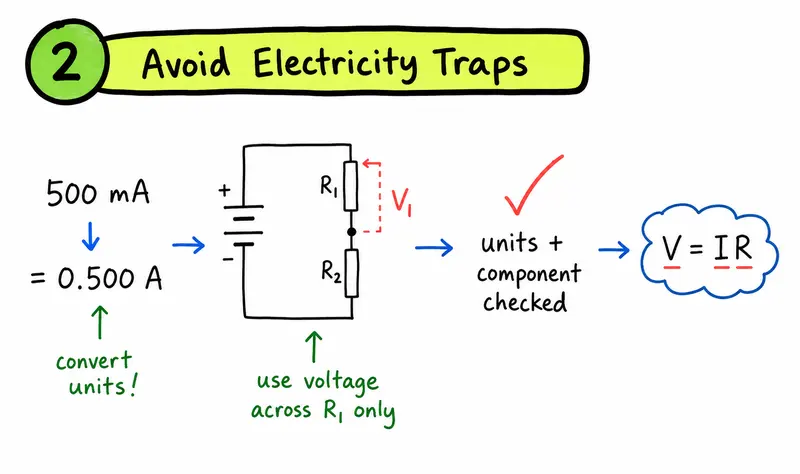

Calculation Traps in A-Level Electricity

The most common A-Level mistakes are small but expensive:

• using milliamps as amps without converting;
• treating a parallel circuit as though all resistors simply add;
• rounding too early and losing precision;
• forgetting that power can be calculated in more than one valid way;
• using the supply voltage when the question asks about one component.

When you mark your work, do not only check the final number. Check whether the chosen equation matches the part of the circuit named in the question.

A-Level Practice Routine

Use a three-question practice block:

1. One series/parallel resistance question.
2. One power or energy-transfer question.
3. One I-V graph or component-behaviour question.

After marking, write one correction beside each question: wrong circuit model, wrong unit, wrong equation, or wrong explanation. That gives your next revision session a real target.

A-Level Electricity: Calculation First, Explanation Second

For A-Level electricity, many marks come from selecting the correct equation and keeping the circuit arrangement straight. Treat each question like a small model-building task:

• If the question gives charge and time, think current as rate of charge flow.
• If it gives energy and charge, think potential difference.
• If it gives voltage and current, think resistance or power depending on the wording.
• If components are in series, add resistance before using the supply voltage.
• If components are in parallel, check branch voltage before calculating branch current.

A useful exam habit is to write a one-line circuit decision before substituting values. For example: series circuit, same current, total resistance first. That note prevents the common error of using a single component's resistance as though it were the whole circuit.

What Makes This Topic Different

Electricity questions punish unit drift. Students often know the formula but mix up current, charge, energy, power, and potential difference. The safest first move is to write the equation in symbols, then write every value with a unit before substituting.

For circuits, decide whether the question is about a component, a whole branch, or the total circuit. That single choice changes whether resistance adds, current splits, or potential difference is shared.

Worked Examples

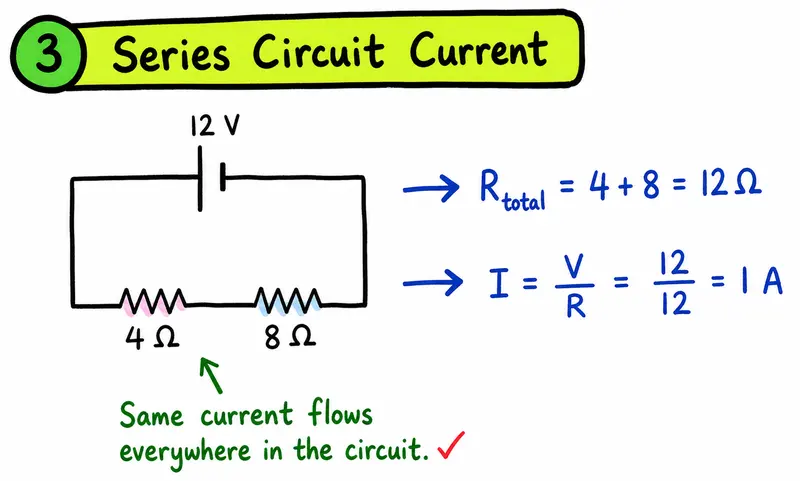

Worked Example 1: Series Circuit Current

Question: A 12 V supply is connected to two resistors of 4 ohms and 8 ohms in series. Find the current.

Worked answer: In series, resistances add: total resistance = 4 + 8 = 12 ohms. Use I = V / R, so I = 12 / 12 = 1 A. The current is the same through both resistors because there is only one path.

Markscheme-style answer:

• Total resistance in series is 12 ohms.
• Uses I = V / R.
• Current = 1 A.
• States or implies current is the same in series components.

Worked Example 2: Power in a Resistor

Question: A resistor has current 0.50 A and potential difference 6.0 V. Calculate the power dissipated.

Worked answer: Use P = IV. Power = 0.50 x 6.0 = 3.0 W. A common error is to use resistance without needing it.

Markscheme-style answer:

• Selects P = IV.
• Substitutes current and potential difference correctly.
• Gives 3.0 W with a correct unit.

Editorial Review

This guide was prepared by the EduNinja Editorial Team and reviewed for syllabus alignment, study usefulness, and answer quality. It is designed as independent revision support and should be checked against your current school or exam-board specification when a course has changed.

Start From the Matching EduNinja Notes

This article is meant to sit next to the EduNinja Notes page, not replace it. Start with the most relevant note, then come back here for the worked examples and markscheme-style answer checks.

• A-Level Physics Notes

A good study loop is:

1. Open A-Level Physics Notes and rebuild the key definition, diagram, or method.
2. Return to this article and try the worked examples without looking.
3. Mark your answer for exact wording, units, and missing steps.
4. Move from notes into question practice only after the concept is clear.

FAQ

How should I revise Electricity for A-Level Physics?

Start with a short note review, then answer exam-style questions as quickly as possible. The topic only becomes secure when you can retrieve the idea without notes and apply it to unfamiliar wording.

Are notes enough for this topic?

Notes are enough to learn the structure, but not enough to check exam readiness. Use notes to rebuild the concept, then use question practice to test whether your answer includes the exact wording, units, sequence, or explanation the markscheme rewards.

What should I do if I keep making the same mistake?

Write the mistake as a specific correction, not a general complaint. For example, "I confuse strong and concentrated" or "I forget the constant of integration." Then practise one targeted question and make a flashcard from the correction.

Which EduNinja link should I open first?

Open the notes or topic page that matches your weakest subtopic first. If you are not sure, start from the subject question bank and choose a small question set rather than trying to revise the whole chapter.
