IB Biology HL C2.1 Chemical signalling [HL only] Question Bank

[Maximum number: 1]

In an experiment to determine the effect of diet on response to leptin, mice were fed a control diet or a high fructose diet for six months and then either injected with a saline (salt) solution or injected with leptin. The food intake of both groups was then monitored over a 24 hour period.
Removed for copyright reasons

(a)

Leptin is a hormone. Hormones are chemicals produced in one part of the body that have an effect in another part of the body. State the

[ 1 ]

(i)

Leptin is a hormone. Hormones are chemicals produced in one part of the body that have an effect in another part of the body. State the target that leptin normally acts on.

[ 1 ]

(a)

Blood transports molecules throughout the body. State where the blood absorbs

[ 1 ]

(i)

Blood transports molecules throughout the body. State where the blood absorbs hormones.

[ 1 ]

[Maximum number: 2]

Vibrio fischeri is a bioluminescent (light-producing) bacterium in the Pacific Ocean. V. fischeri grown in the laboratory often has less luminescence. An investigation was carried out to look at the effect of the external osmolarity (in mOsmol) on the bacterium's luminescence, at different densities of bacteria. V. fischeri cultures were grown in three different concentrations of artificial seawater. Relative luminescence is the total luminescence divided by the density of bacteria.

Key: osmolarity
- 1300 mOsmol
- 810 mOsmol
- 570 mOsmol

(a)

Comment on the effects of osmolarity on the luminescence of the bacterium V. fischeri.

[ 2 ]

[Maximum number: 1]

The electron micrograph shows part of a pancreas cell that secretes digestive enzymes.

(a)

The pancreas secretes other chemicals as well as enzymes. State an example of a chemical and the type of pancreatic cell that secretes it.

[ 1 ]

[Maximum number: 1]

What is an example of quorum sensing?

Expression of incomplete dominance by Mirabilis jalapa flowers

Spring growth of the Arctic mouse-ear chickweed Cerastium arcticum

Bioluminescence in the marine bacterium Vibrio fischeri

Biochemical control of lactase synthesis in Escherichia coli bacteria

[Maximum number: 1]

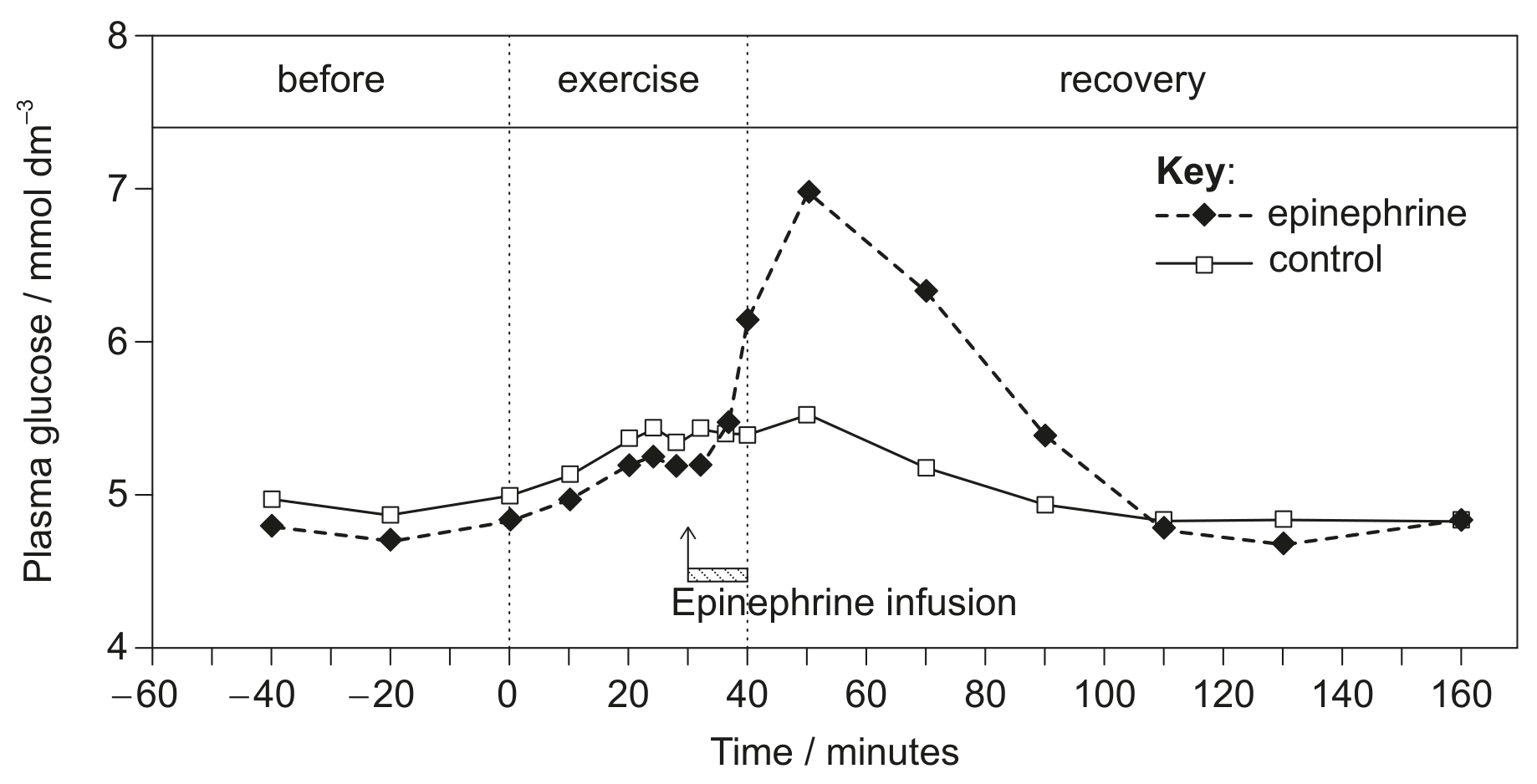

The graph shows changes in blood plasma glucose concentration before exercise, during exercise and during recovery with and without epinephrine (adrenaline) infusion. Epinephrine infusion was started 30 minutes into the exercise routine.

E949-57. https://doi.org/10.1152/ajpendo.2000.278.5.E949. Reference redacted. Source adapted.]

Which action of epinephrine would result in the observed changes to plasma glucose concentration?

Second messenger is deactivated.

A G protein is activated, and cyclic AMP (cAMP) is produced.

Second messenger stimulates the production of ATP.

Cyclic AMP (cAMP) deactivates the G protein.

[Maximum number: 1]

What is an example of negative feedback in the menstrual cycle?

High levels of estrogen inhibit FSH secretion.

High levels of LH stop progesterone secretion.

High levels of FSH delay ovulation.

High levels of progesterone make follicles less receptive to FSH.

[Maximum number: 1]

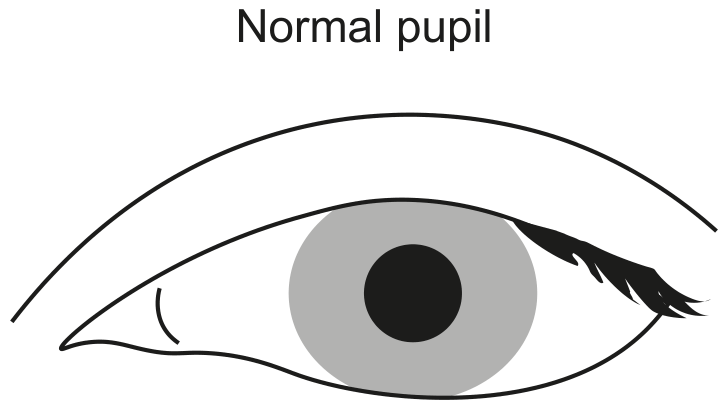

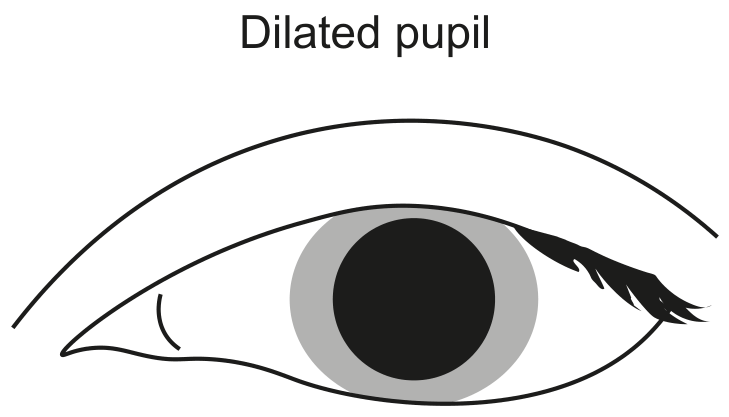

Atropine drops are used by opticians to dilate the pupil, so that a thorough examination of the retina can be performed. Atropine binds to acetylcholine receptors in synapses.

What is the effect of atropine binding in synapses?

Inhibits the binding of acetylcholine at the presynaptic membrane

Inhibits the release of acetylcholine from the presynaptic neuron

Prevents binding of acetylcholine at the postsynaptic membrane

Prevents transport of acetylcholine through the postsynaptic membrane

[Maximum number: 1]

Leptin helps to regulate body mass in humans and mice. The image shows an obese mouse (O) and a normal mouse (N).

What hypothesis could account for the differences between the mice?

The hypothalamus of mouse O stopped producing leptin.

Adipose cells of mouse O are continuously producing leptin.

Mouse N has a defective leptin receptor.

Leptin binds to receptors in the hypothalamus of mouse N.

[Maximum number: 1]

What releases leptin?

Thyroid gland

Hypothalamus

Pineal gland

Adipose tissue
