Edexcel IGCSE Chemistry Observations Measurements and Variables Questions

Practise Edexcel IGCSE Chemistry observations, measurements and variables by using colour, effervescence, gas collection and controlled variables.

Syllabus
Issue 3 (2024)
Course
Chemistry 4CH1

Exam points

  • Use observations such as colour, bubbles or gas syringe movement to judge a reaction.
  • State controlled variables such as concentration, volume, mass, surface area or temperature.

Question 1

[Maximum number: 1]

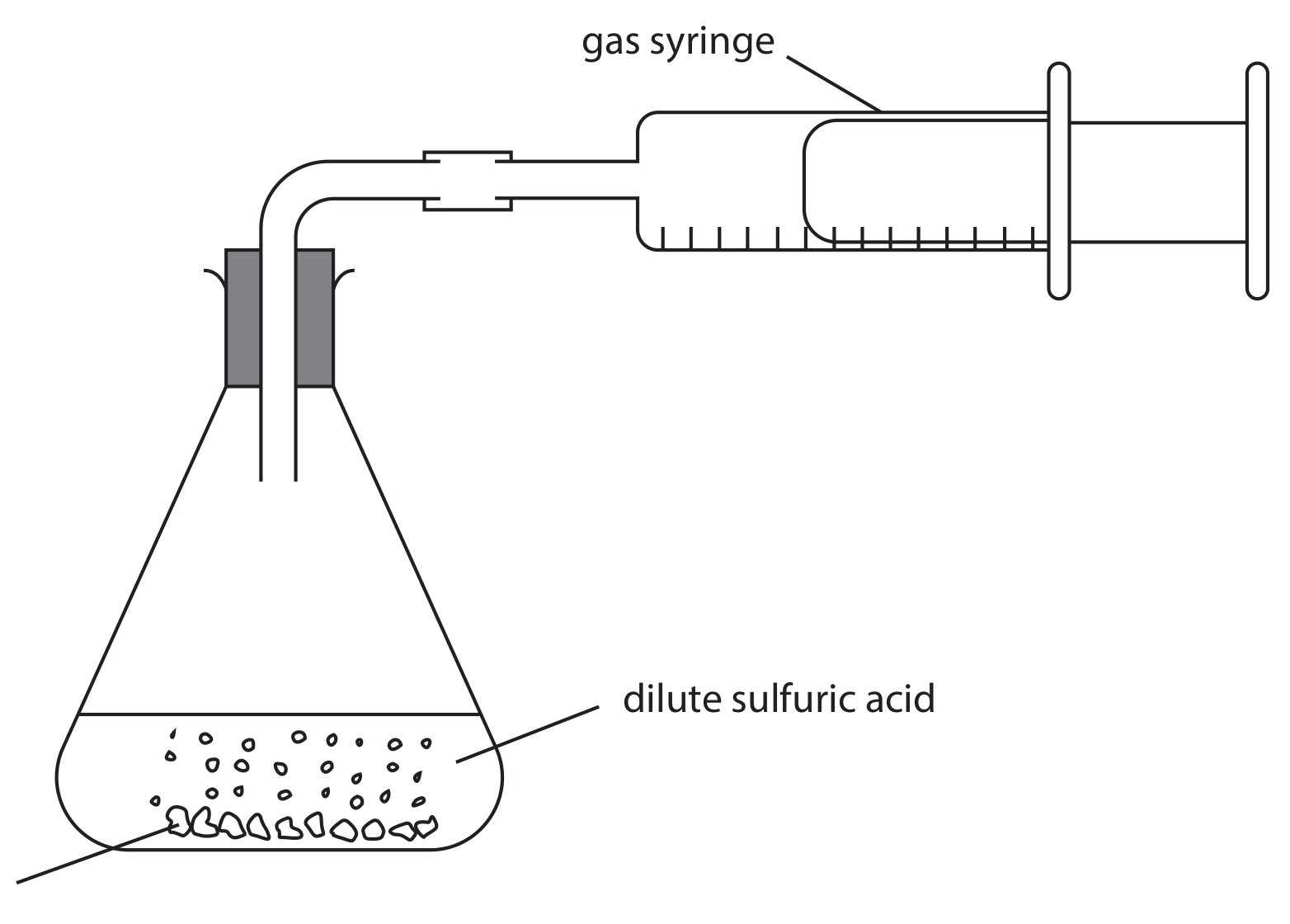

A student uses this apparatus to investigate the rate of reaction between dilute sulfuric acid and an excess of small pieces of zinc.

Figure for Question 1 — Edexcel IGCSE Chemistry

This is the student's method.
Step 1 use 50 cm350 \mathrm{~cm}^{3} of dilute sulfuric acid
Step 2 add approximately 5 g of small zinc pieces to the sulfuric acid
Step 3 quickly connect the gas syringe
Step 4 record the reading on the gas syringe every 30 seconds until the reaction stops

State how the student would know when the reaction stops.

Question 2

[Maximum number: 2]

A student investigates the effect of temperature on the rate of reaction between two solutions, A and B . When the reaction occurs, the mixture turns from colourless to blue.

This is the student's method.
- pour 25 cm325 \mathrm{~cm}^{3} of solution A into a conical flask
- add solution B and measure the temperature of the mixture
- record the time taken for the mixture to turn blue

The student repeats this method at different temperatures.

Give two variables that the student needs to keep constant in this investigation.

1

2

Question 3

[Maximum number: 2]

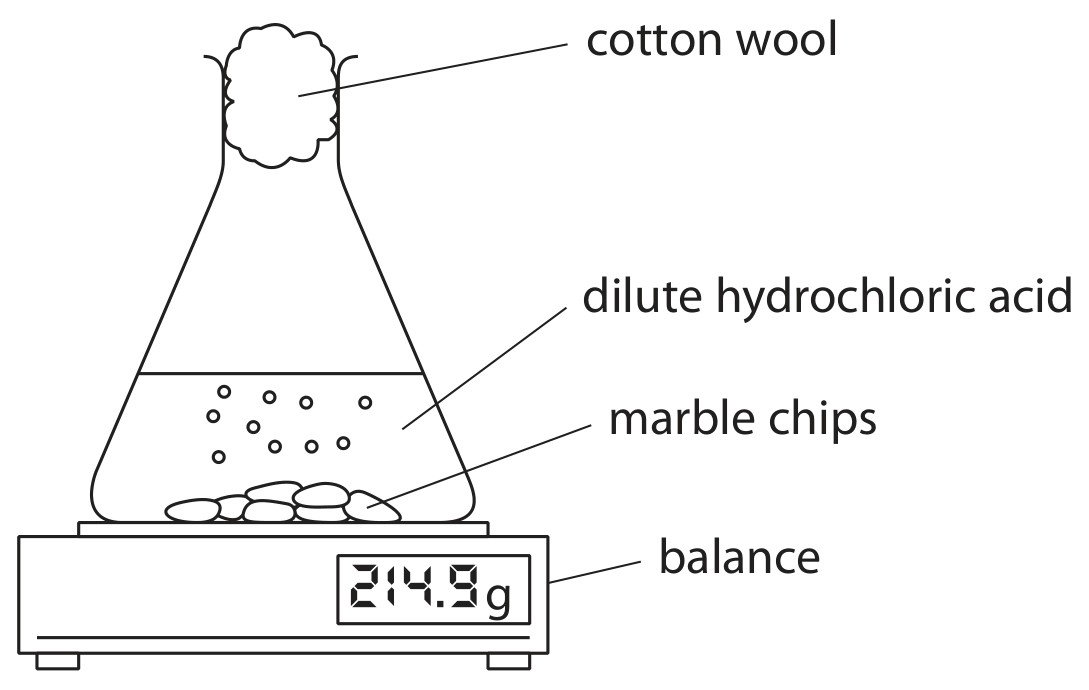

A student uses this apparatus to investigate the rate of reaction between marble chips and dilute hydrochloric acid.

Figure for Question 3 — Edexcel IGCSE Chemistry

This is the equation for the reaction.

CaCO3( s)+2HCl(aq)→CaCl2(aq)+H2O(l)+CO2( g)\mathrm{CaCO}_{3}(\mathrm{~s})+2 \mathrm{HCl}(\mathrm{aq}) \rightarrow \mathrm{CaCl}_{2}(\mathrm{aq})+\mathrm{H}_{2} \mathrm{O}(\mathrm{l})+\mathrm{CO}_{2}(\mathrm{~g})

The student repeats the experiment with hydrochloric acid at a higher temperature to investigate the effect on the rate of reaction.

Give two variables that should be controlled to make sure the results are valid.

1

2
