IB Physics HL S1.3.5 Graphing Questions

Interpret HL physics graphs by using gradients, intercepts, areas and linear relationships to extract equations and physical quantities.

Exam points

derive a relationship from a graph’s gradient and intercept, including correct axis variables and signs
use the area under a graph or mean value to calculate a physical quantity such as displacement or speed
read, sketch and interpret data graphs, identifying scale, trend, gradient and relevant physical meaning

Learn this topic

Study S1.3.5—Graphing conceptsOpen the corresponding Concept lesson for explanations, examples and exam connections.

[Maximum number: 2]

A group of students is trying to determine the density and the viscosity of a liquid.

To determine the density, they use a balance to read the mass m of a sphere in air and immersed in the liquid.

They use a sphere of volume $V=1.827 \times 10^{-7} \mathrm{~m}^{3}$ .
The readings are $m_{\text {air }}=1.427 \mathrm{~g}$ in air and $m_{\text {immersed }}=1.208 \mathrm{~g}$ in the liquid.
The readings are different due to buoyancy. The buoyancy force $F_{\mathrm{b}}$ is given by

F_{\mathrm{b}}=\rho V g

where V is the volume of the sphere and $\rho$ is the density of the liquid.

To determine the viscosity, they immerse the sphere in the liquid and drop it from rest.

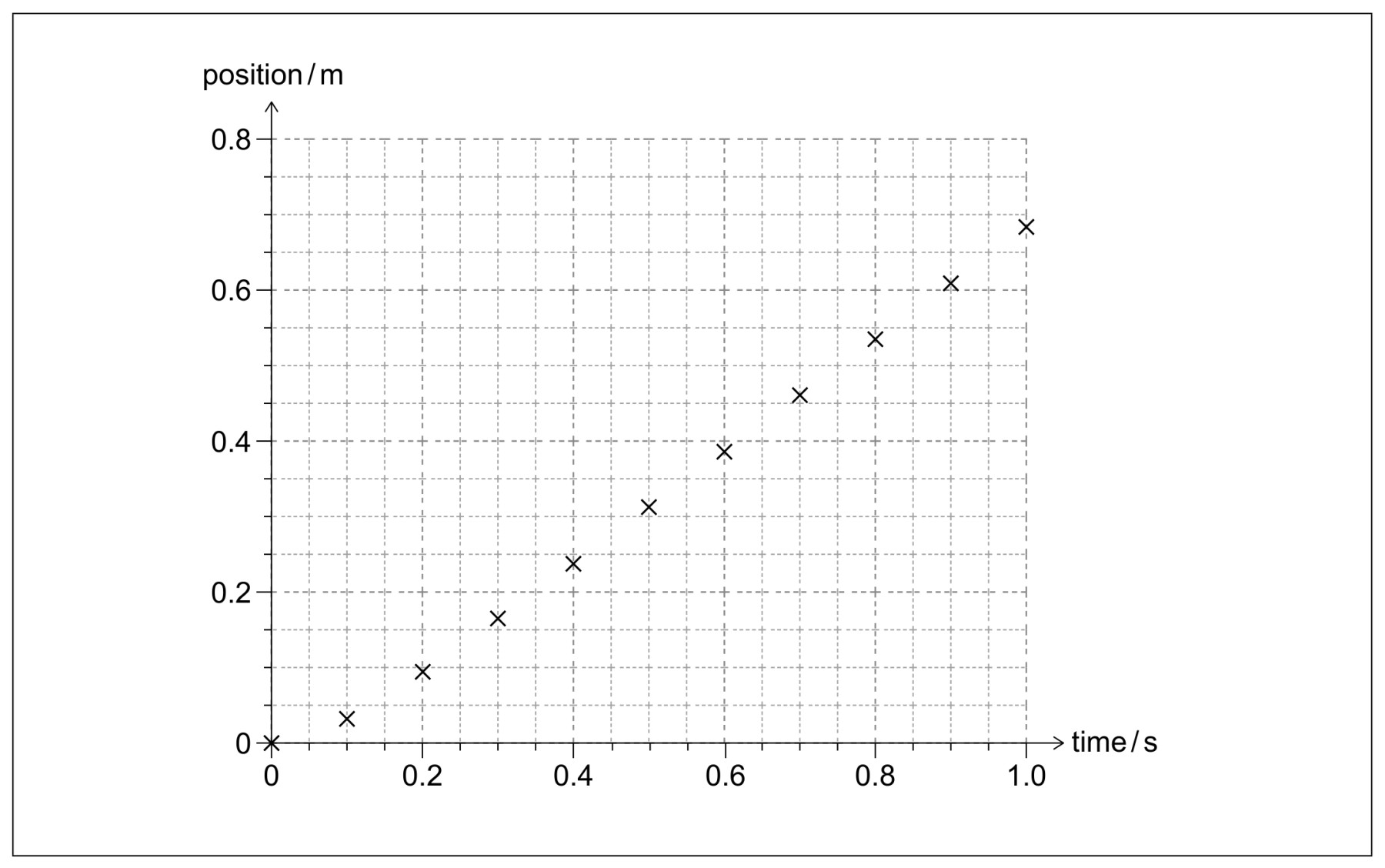

They collect values and plot a graph of the position d of the sphere from the moment they drop it. They verify that the sphere reaches terminal velocity $v_{t}$ after 0.5 s .

Figure for Question IB Physics HL S1.3.5 Graphing Questions question 1 — IB Physics HL

Draw the line of best fit on the graph.
