IB Physics HL E.3.17 Discrete nuclear energy levels Question Bank

Practise IB Physics HL E.3.17 by applying discrete nuclear energy levels concepts to exam-style physics questions.

Exam points

identify the relevant physical quantity, model or diagram
apply the correct equation and units to the evidence
justify the result using conservation laws, fields or energy relationships

[Maximum number: 2]

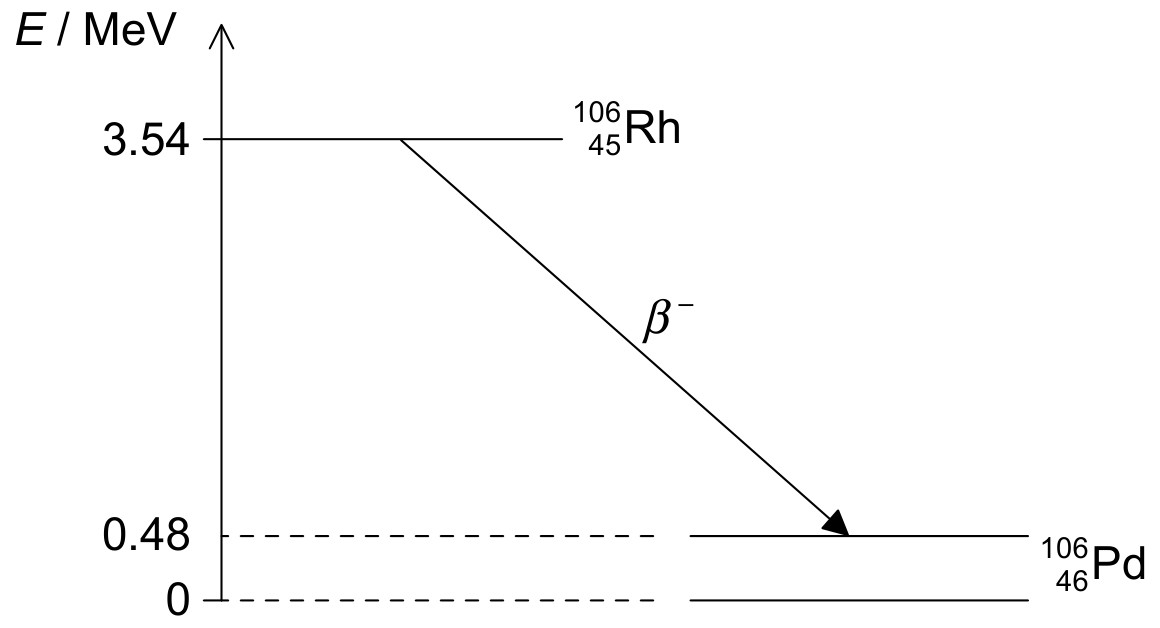

Rhodium-106 $\left({ }_{45}^{106} \mathrm{Rh}\right)$ decays into palladium-106 $\left({ }_{46}^{106} \mathrm{Pd}\right)$ by beta minus $\left(\beta^{-}\right)$ decay. The diagram shows some of the nuclear energy levels of rhodium-106 and palladium-106. The arrow represents the $\beta^{-}$ decay.

Figure for Question E.3.17 (HL)—Discrete nuclear energy levels question 1 — IB Physics HL

Calculate the wavelength of the gamma ray photon in (d)(ii).

Photon energy
$\begin{aligned} E=0.48 \times 10^{6} \times 1.6 \times 10^{-19}=\ll 7.68 \times 10^{-14} \mathrm{~J} \gg \lambda=<\frac{h c}{E}=\frac{6.63 \times 10^{-34} \times 3 \times 10^{8}}{7.68 \times 10^{-14}}=>2.6 \times 10^{-12} \ll \mathrm{~m} \gg \end{aligned}$

Award [2] for a bald correct answer

Allow ECF from incorrect energy

All question bank results loaded

E.3.17 (HL)—Discrete nuclear energy levels question 1
