A uniform, spherical planet P has mass M and radius R.

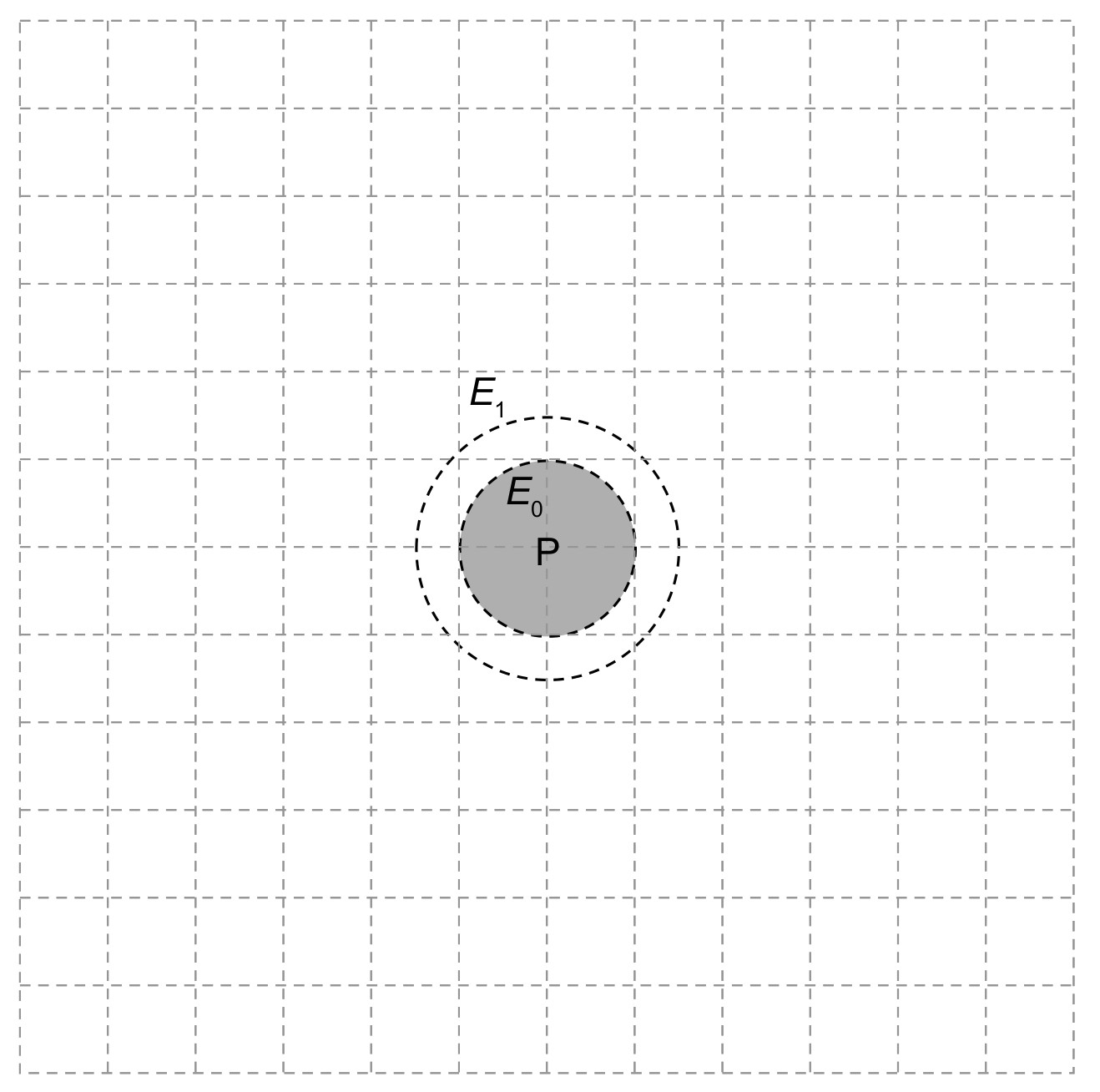

The surface of P is an equipotential surface $E_{0}$ . The dotted circle labeled $E_{1}$ is an equipotential line at a distance $\frac{3 R}{2}$ from the centre of P . The potential difference between $E_{1}$ and $E_{0}$ is $2.2 \times 10^{6} \mathrm{Jkg}^{-1}$ .

Figure for Question IB Physics HL D 1 9 Hl Potential Gradient Questions question 1 — IB Physics HL

The radius R of P is $8.5 \times 10^{6} \mathrm{~m}$ .

Estimate the magnitude of the gravitational field strength between $E_{1}$ and $E_{0}$ .

$\begin{aligned} g=\pi \frac{\Delta V_{\mathrm{g}}}{\Delta r}=>\frac{2.2 \times 10^{6}}{\frac{8.5 \times 10^{6}}{2}} g=0.52 \ll \mathrm{~N} \mathrm{~kg}^{-1} \gg \end{aligned}$

Ignore negative sign

[2]
