IB Physics HL B 5 8 Circuit Diagrams and Conventional Current Questions

Practise IB Physics HL B.5.8 by drawing conventional-current direction in circuit components.

Syllabus
First assessment 2025
Course
Physics HL
Level
HL

Exam points

  • Draw the direction of conventional current in a circuit component, treating it as the direction positive charge would move.

Learn this topic

Study B.5.8—Circuit diagrams and conventional current conceptsOpen the corresponding Concept lesson for explanations, examples and exam connections.

IB Physics HL B 5 8 Circuit Diagrams and Conventional Current Questions question 1

[Maximum number: 1]

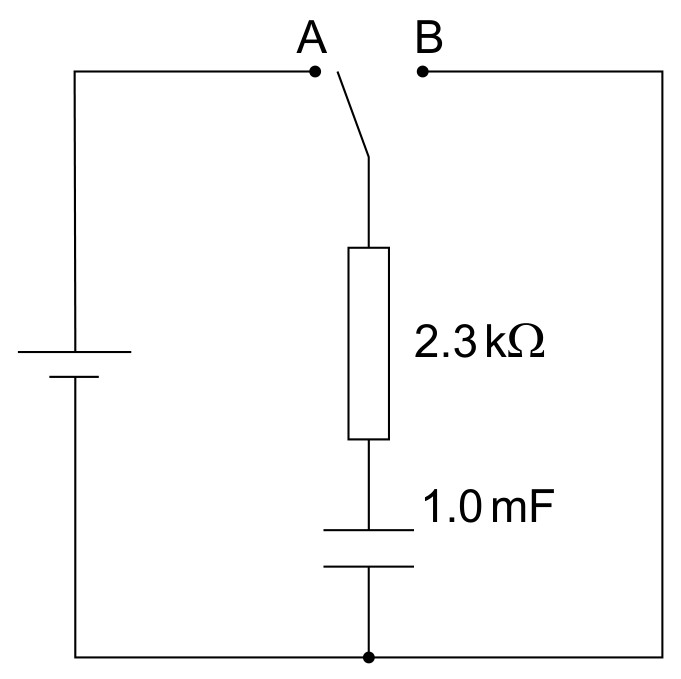

A1.0 mF capacitor is connected in series to a 2.3kΩ2.3 \mathrm{k} \Omega resistor and a cell of negligible internal resistance.

Figure for Question IB Physics HL B 5 8 Circuit Diagrams and Conventional Current Questions question 1 — IB Physics HL

The capacitor is initially uncharged. At time t=0 the switch is moved to position A. The initial current in the resistor is 3.9 mA .

Draw, on the circuit diagram above, an arrow showing the direction of the conventional current in the resistor for t>5.0 st>5.0 \mathrm{~s}.
