The p V diagram shows a heat engine cycle consisting of adiabatic, isothermal and isovolumetric parts. The working substance of the engine is an ideal gas.

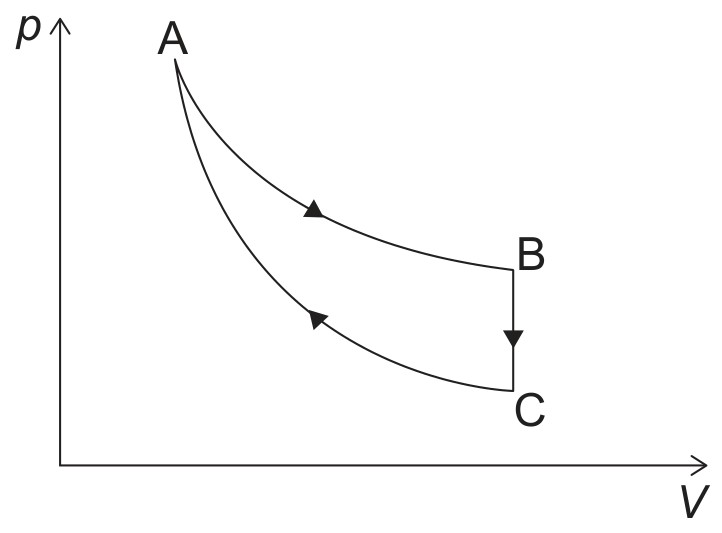

Figure for Question B.4.13 (HL)—Carnot efficiency limit question 1 — IB Physics HL

The following data are available:

\begin{aligned} & p_{\mathrm{A}}=5.00 \times 10^{5} \mathrm{~Pa} \\ & V_{\mathrm{A}}=2.00 \times 10^{-3} \mathrm{~m}^{3} \\ & T_{\mathrm{A}}=602 \mathrm{~K} \\ & p_{\mathrm{B}}=3.00 \times 10^{4} \mathrm{~Pa} \\ & p_{\mathrm{C}}=4.60 \times 10^{3} \mathrm{~Pa} \end{aligned}

The highest and lowest temperatures of the gas during the cycle are 602 K and 92 K .

The efficiency of this engine is about 0.6 . Outline how these data are consistent with the second law of thermodynamics.

$e_{\mathrm{C}}=1-\frac{92}{602}=0.847$

this engine has $e<e_{\mathrm{c}}$ as it should

Marking guidance:

Award [0] if no calculation shown.
