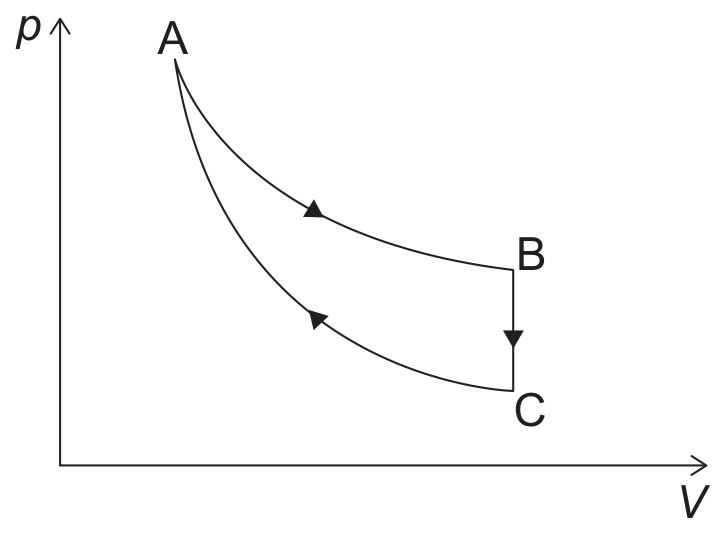

The p V diagram shows a heat engine cycle consisting of adiabatic, isothermal and isovolumetric parts. The working substance of the engine is an ideal gas.

Figure for Question B.4.10 (HL)—Adiabatic ideal gas question 1 — IB Physics HL

The following data are available:

\begin{aligned} & p_{\mathrm{A}}=5.00 \times 10^{5} \mathrm{~Pa} \\ & V_{\mathrm{A}}=2.00 \times 10^{-3} \mathrm{~m}^{3} \\ & T_{\mathrm{A}}=602 \mathrm{~K} \\ & p_{\mathrm{B}}=3.00 \times 10^{4} \mathrm{~Pa} \\ & p_{\mathrm{C}}=4.60 \times 10^{3} \mathrm{~Pa} \end{aligned}

Show that the volume at C is $3.33 \times 10^{-2} \mathrm{~m}^{3}$ .

Alternative 1:
Use the adiabatic formula $p_A V_A^{5/3}=p_C V_C^{5/3}$ , so $V_C=\left(\frac{p_A}{p_C}\right)^{3/5}V_A$ .
$V_C=\left(\frac{5.00\times10^5}{4.60\times10^3}\right)^{3/5}\times2.00\times10^{-3}=3.333\times10^{-2}\ \mathrm{m^3}$ .

Alternative 2:
$V_C=V_B$ and $p_AV_A=p_BV_B$ .
$V_C=\frac{5\times10^5\times2\times10^{-3}}{3\times10^4}$ .

Alternative 3:
$V_C=V_B$ and $n=0.2\ \mathrm{mol}$ .
$V_C=\frac{0.2\times8.31\times602}{3\times10^4}$ .

For MP2, working or answer to at least 4 significant figures must be seen.
