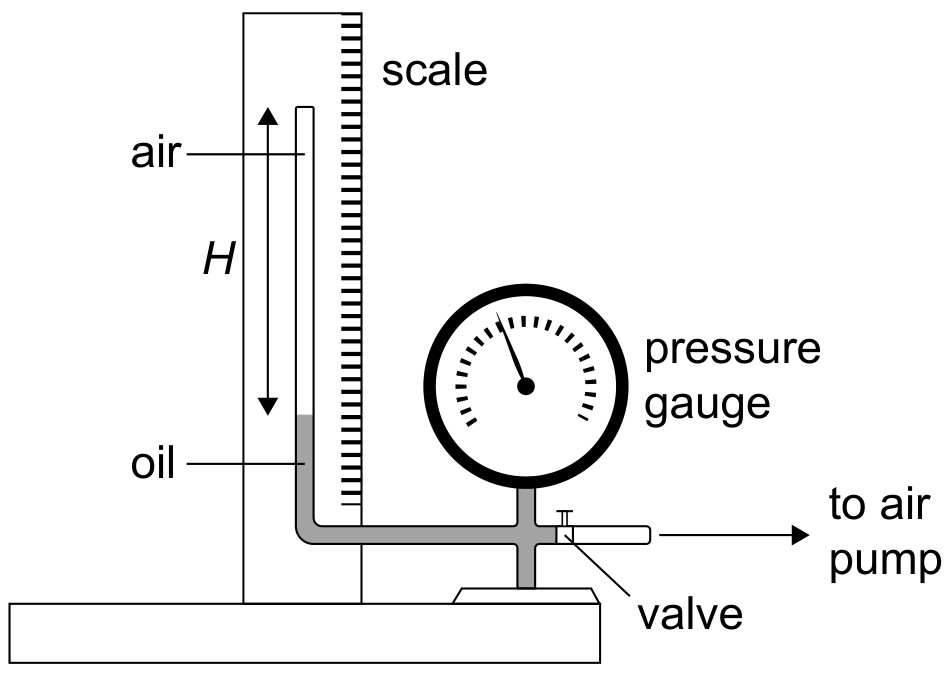

The equipment shown in the diagram was used by a student to investigate the variation with volume, of the pressure p of air, at constant temperature. The air was trapped in a tube of constant cross-sectional area above a column of oil.

Figure for Question IB Physics HL B 3 4 Empirical Gas Laws Questions question 1 — IB Physics HL

The pump forces oil to move up the tube decreasing the volume of the trapped air.

Outline how the results of this experiment are consistent with the ideal gas law at constant temperature.

$V\propto H$ , thus the ideal gas law gives $p\propto\frac{1}{H}$ .

So the graph should be a straight line through the origin, as observed.
