IB Maths AI SL 3.1 Three Dimensional Geometry Questions

Practise IB Maths AI SL 3.1 by calculating distances, areas and volumes from three-dimensional coordinates and diagrams.

Exam points

Calculate 3D distances and midpoints from coordinates or position vectors.
Use right-angled triangles within 3D solids to find lengths and angles.
Calculate volumes and surface areas of 3D solids or combinations and interpret the result.

Learn this topic

Study SL 3.1—Three-dimensional geometry conceptsOpen the corresponding Concept lesson for explanations, examples and exam connections.

[Maximum number: 5]

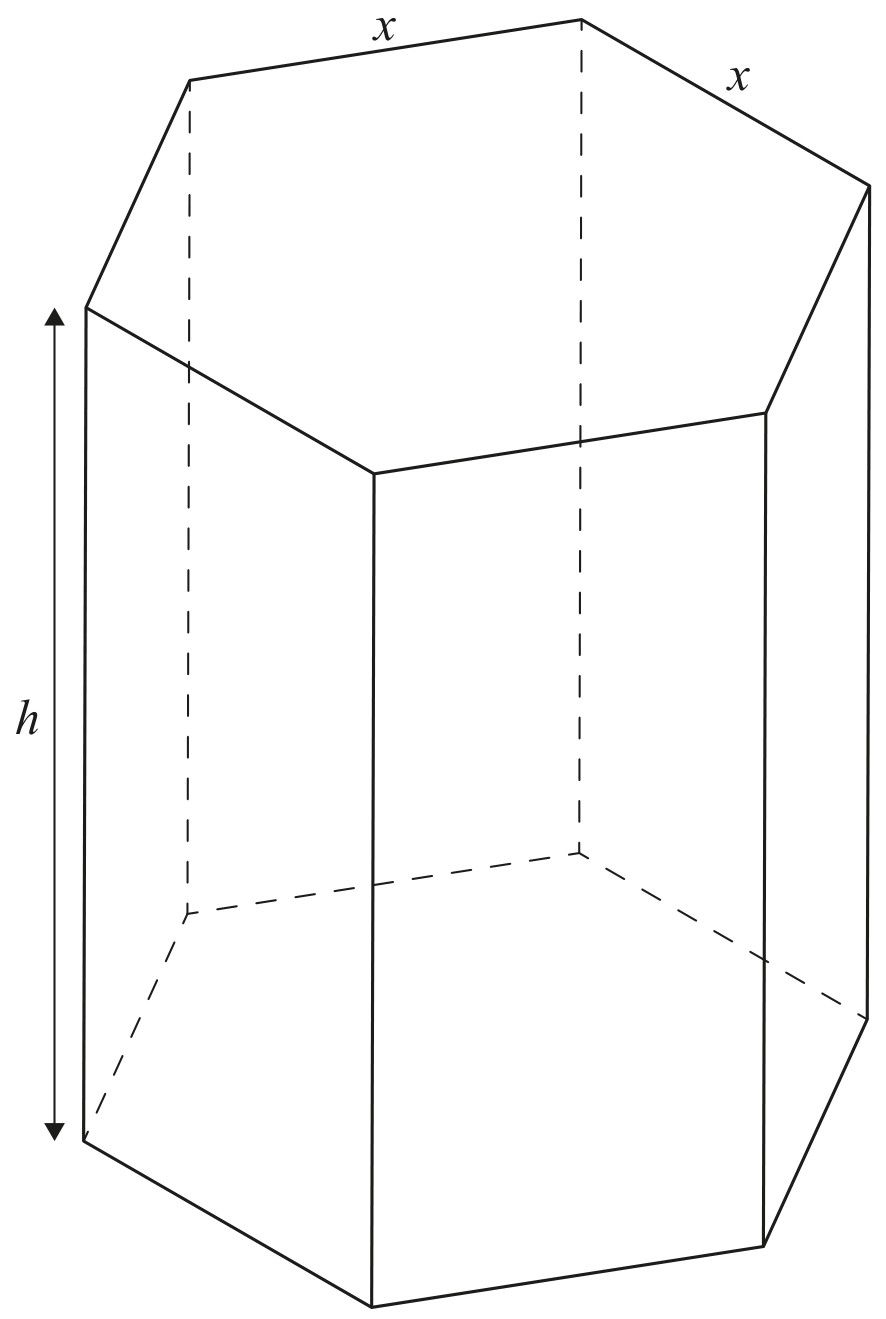

A hollow chocolate box is manufactured in the form of a right prism with a regular hexagonal base. The height of the prism is $h \mathrm{~cm}$ , and the top and base of the prism have sides of length $x \mathrm{~cm}$ .

Figure for Question IB Maths AI SL 3.1 Three Dimensional Geometry Questions question 1 — IB Maths AI SL

Given that the total external surface area of the box is $1200 \mathrm{~cm}^{2}$ , show that the volume of the box may be expressed as $V=300 \sqrt{3} x-\frac{9}{4} x^{3}$ .

total surface area of prism $1200=2\left(3 x^{2} \frac{\sqrt{3}}{2}\right)+6 x h$ M1A1

Note: Award M1 for expressing total surface areas as a sum of areas of rectangles and hexagons, and A1 for a correctly substituted formula, equated to 1200.

\begin{aligned} & h=\frac{400-\sqrt{3} x^{2}}{2 x} \\ & \text { volume of prism }=\frac{3 \sqrt{3}}{2} x^{2} \times h \\ & =\frac{3 \sqrt{3}}{2} x^{2}\left(\frac{400-\sqrt{3} x^{2}}{2 x}\right) \\ & =300 \sqrt{3} x-\frac{9}{4} x^{3} \end{aligned}

Note:The AG line must be seen for the final A1 to be awarded.
