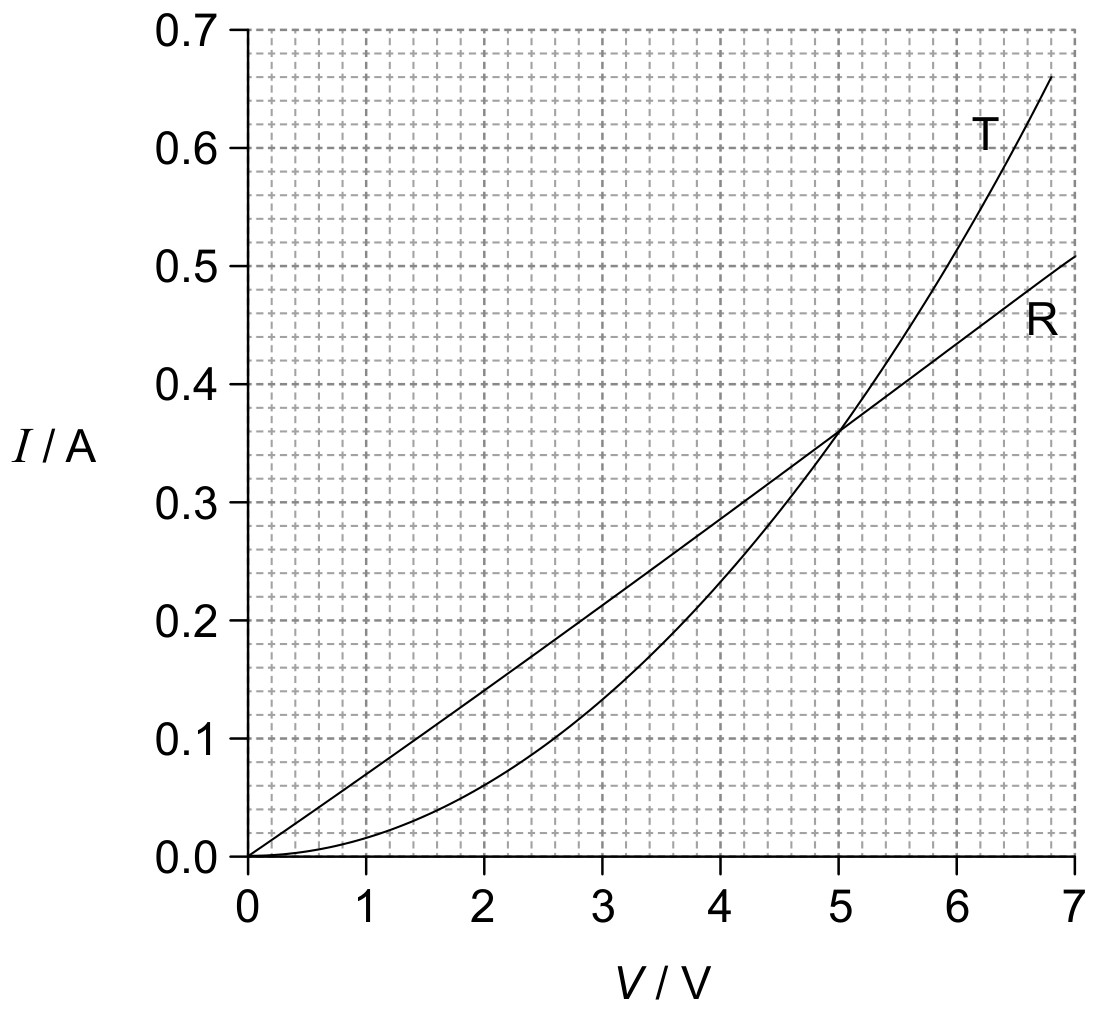

The graph shows how current I varies with potential difference V for a resistor R and a non-ohmic component T.

Figure for Question IB Physics SL B 5 3 Resistance Questions question 1 — IB Physics SL

Deduce, without a numerical calculation, whether R or T has the greater resistance at $I=0.40 \mathrm{~A}$ .

$\text { at } 0.4 \mathrm{~A}: V_{\mathrm{R}}>V_{\mathrm{T}} \text { or } V_{R}=5.6 \mathrm{~V} \text { and } V_{\mathrm{T}}=5.3 \mathrm{~V}$

so $\mathrm{R}_{\mathrm{R}}>\mathrm{R}_{\mathrm{T}}$ because $V=I R / V \propto \mathrm{R}$ «and I same for both»

Marking guidance:

Award [0] for a bald correct answer without deduction or with incorrect reasoning.

Ignore any references to graph gradients.

Both elements must be present for MP2 to be awarded.
