IB Physics SL B.2.8 Infrared absorption Question Bank

Practise IB Physics SL B.2.8 by explaining how greenhouse gases absorb outgoing infrared radiation and re-emit it towards Earth.

Syllabus
First assessment 2025
Course
Physics SL
Level
SL

Exam points

  • Trace how greenhouse gases absorb outgoing infrared radiation and re-emit it in random directions.
  • Use resonance or molecular energy-level evidence to explain why some radiation returns to Earth.

B.2.8—Infrared absorption question 1

[Maximum number: 2]

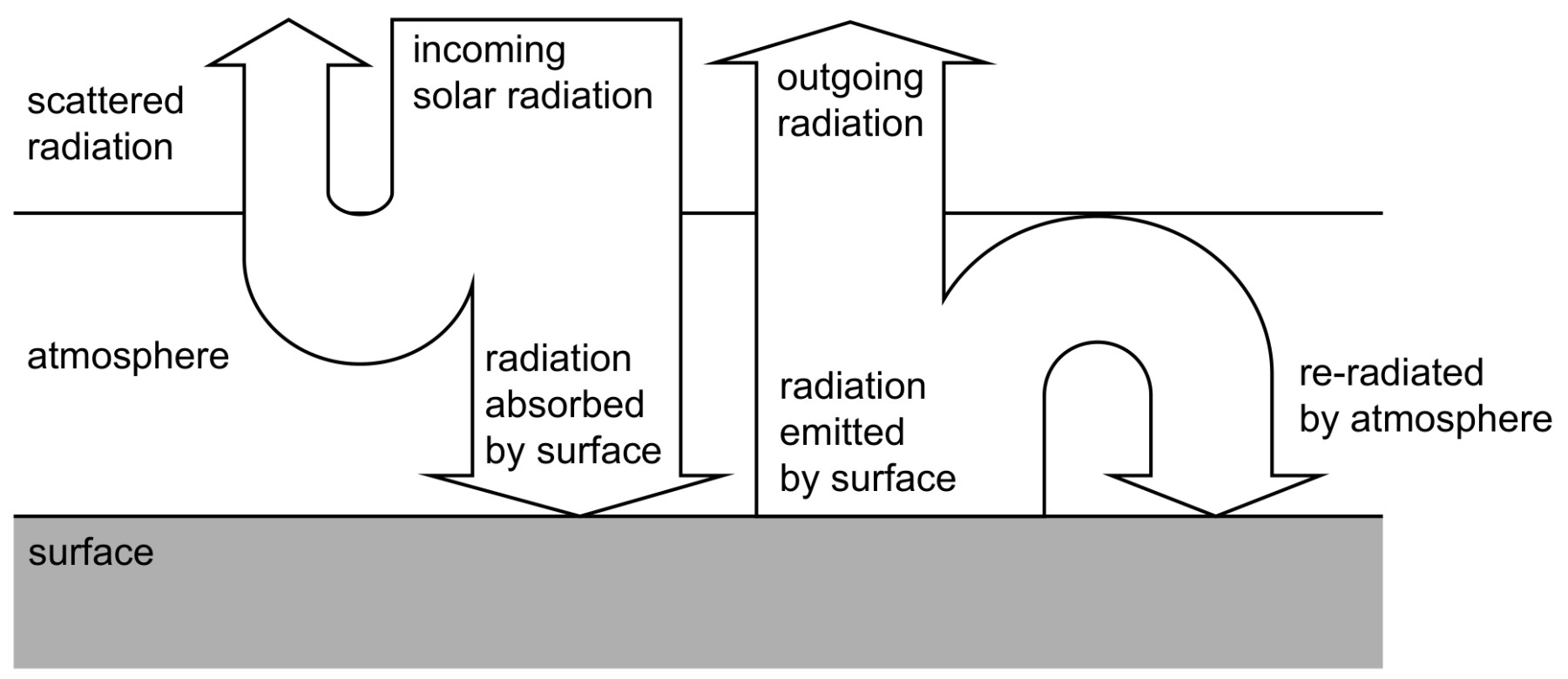

The diagram shows a simplified energy-balance model for the Earth surface–atmosphere system.

Figure for Question B.2.8—Infrared absorption question 1 — IB Physics SL

The following data are given:

 Average albedo of Earth =0.30 Average global temperature of the surface =288 K Average Earth-Sun distance =1.5×1011 m\begin{aligned} \text { Average albedo of Earth } & =0.30 \\ \text { Average global temperature of the surface } & =288 \mathrm{~K} \\ \text { Average Earth-Sun distance } & =1.5 \times 10^{11} \mathrm{~m} \end{aligned}

Outline the physical mechanism by which some of the radiation emitted by the surface is absorbed by greenhouse gases in the atmosphere and re-radiated towards the surface.
