IB Physics HL E 5 5 Hr Diagram Regions Questions

Interpret HL HR-diagram regions and constant-radius lines, combining luminosity, temperature, mass and density evidence for stars.

Syllabus
First assessment 2025
Course
Physics HL
Level
HL

Exam points

  • identify main-sequence and evolved-star regions on an HR diagram and sketch an evidence-consistent evolutionary path
  • use constant-radius lines, luminosity and temperature to compare stellar sizes
  • combine the mass–luminosity relation with radius or volume ratios to calculate and compare stellar densities

Learn this topic

Study E.5.5—HR diagram regions conceptsOpen the corresponding Concept lesson for explanations, examples and exam connections.

IB Physics HL E 5 5 Hr Diagram Regions Questions question 1

[Maximum number: 1]

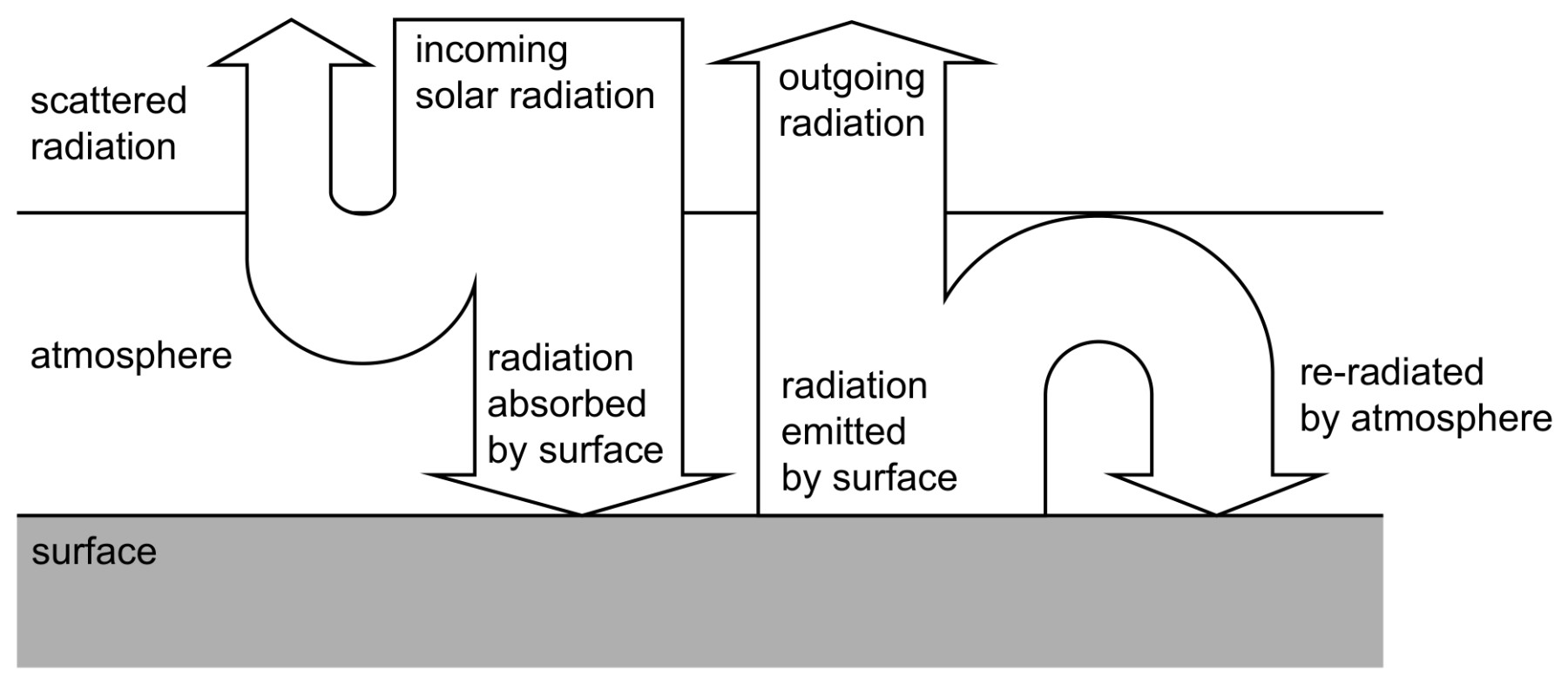

The diagram shows a simplified energy-balance model for the Earth surface-atmosphere system.

Figure for Question IB Physics HL E 5 5 Hr Diagram Regions Questions question 1 — IB Physics HL

The following data are given:

 Average albedo of Earth =0.30 Average global temperature of the surface =288 K Average Earth-Sun distance =1.5×1011 m\begin{aligned} \text { Average albedo of Earth } & =0.30 \\ \text { Average global temperature of the surface } & =288 \mathrm{~K} \\ \text { Average Earth-Sun distance } & =1.5 \times 10^{11} \mathrm{~m} \end{aligned}

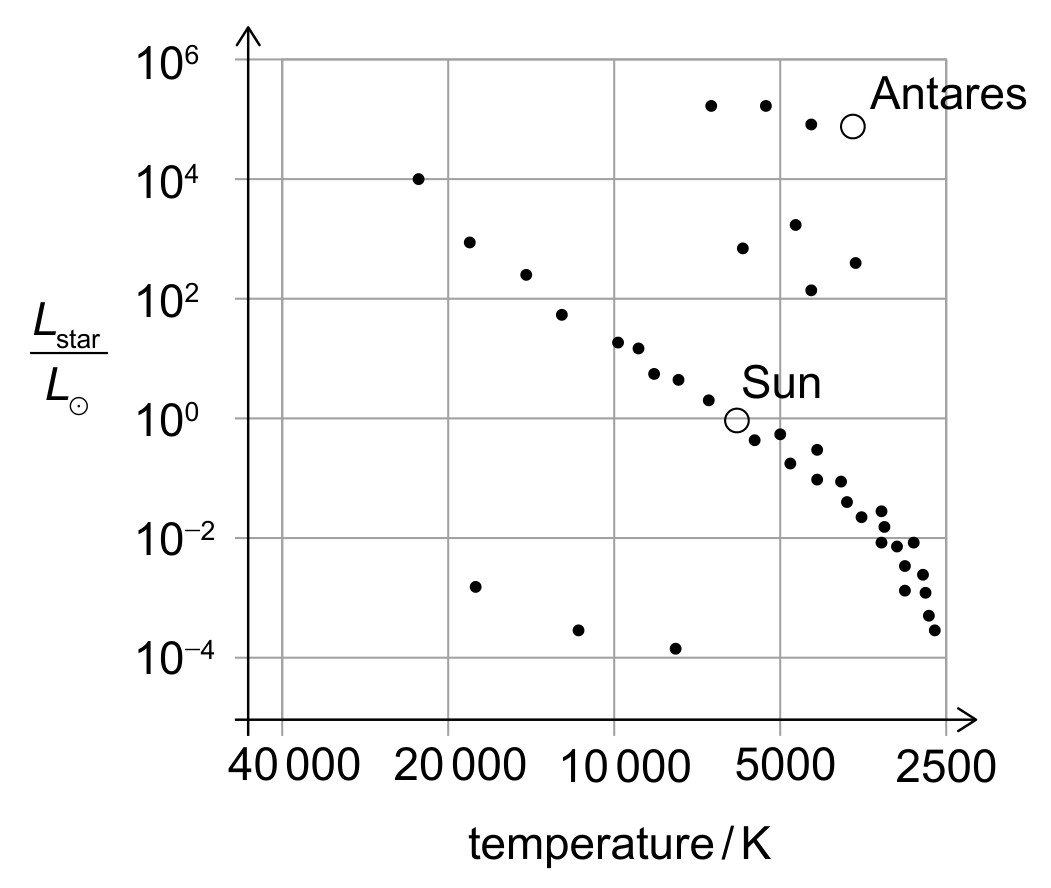

The positions of the Sun and the star Antares are shown in the Hertzsprung-Russell (HR) diagram.

Figure for Question IB Physics HL E 5 5 Hr Diagram Regions Questions question 1 — IB Physics HL

State the star type of Antares.

All question bank results loaded
