IB Physics HL B 1 12 Conduction Rate Questions

Practise HL conduction-rate questions on gradients, ice layers, walls and thickness changes using thermal data in quantitative exam questions.

Syllabus
First assessment 2025
Course
Physics HL
Level
HL

Exam points

  • Apply the conduction-rate equation to ice and walls, then explain how thickness changes energy transfer per area.
  • Analyse temperature gradients and thermal-conductivity data to predict rate changes when layer thickness doubles.

Learn this topic

Study B.1.12—Conduction rate conceptsOpen the corresponding Concept lesson for explanations, examples and exam connections.

IB Physics HL B 1 12 Conduction Rate Questions question 1

[Maximum number: 2]

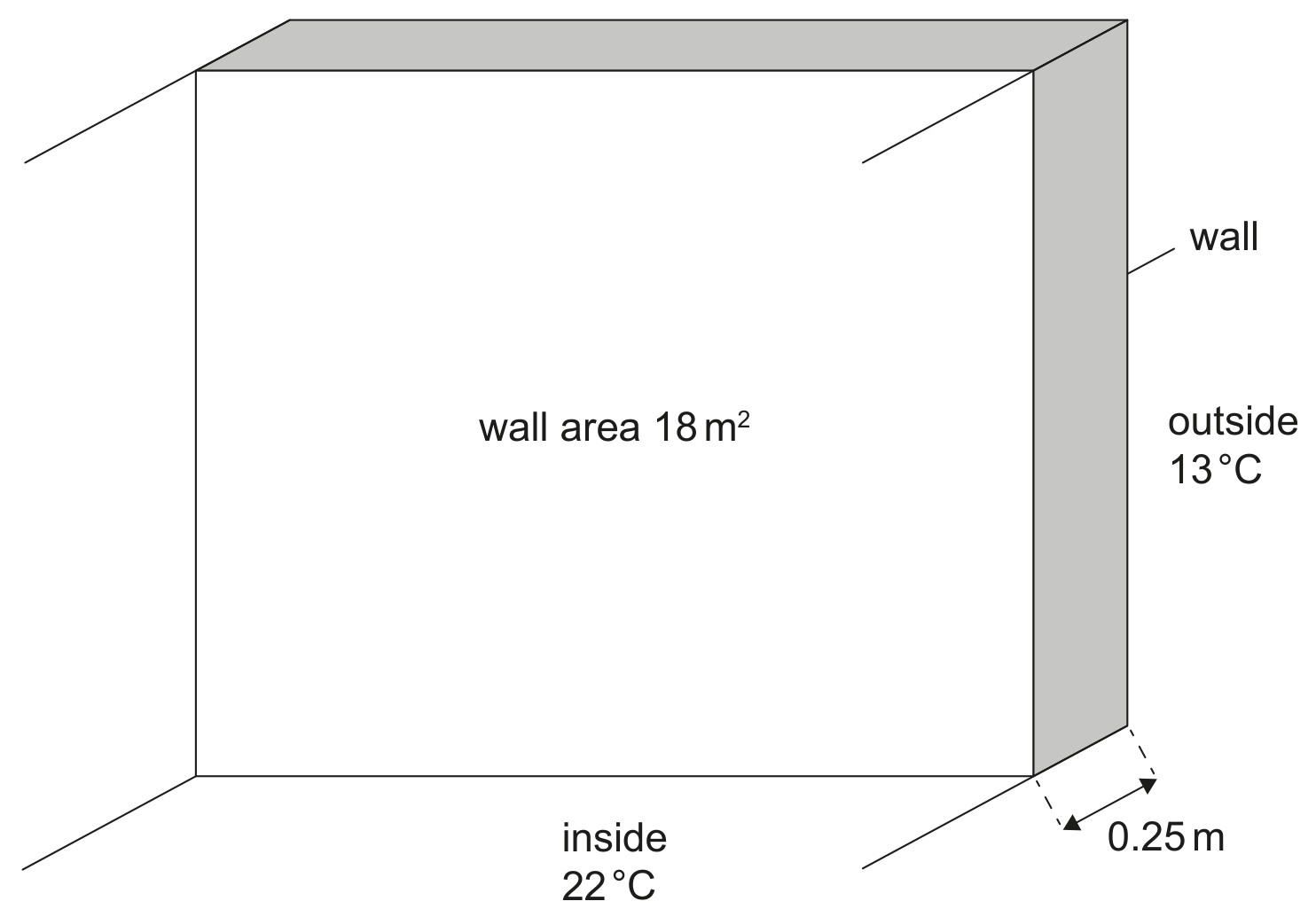

Figure for Question IB Physics HL B 1 12 Conduction Rate Questions question 1 — IB Physics HL

The following data are available:

 Thickness of wall =0.25 m Area of wall =18 m2 Thermal conductivity of wall =1.3Wm−1 K−1 Constant room temperature =22∘C Constant outside temperature =13∘C\begin{aligned} \text { Thickness of wall } & =0.25 \mathrm{~m} \\ \text { Area of wall } & =18 \mathrm{~m}^{2} \\ \text { Thermal conductivity of wall } & =1.3 \mathrm{Wm}^{-1} \mathrm{~K}^{-1} \\ \text { Constant room temperature } & =22^{\circ} \mathrm{C} \\ \text { Constant outside temperature } & =13^{\circ} \mathrm{C} \end{aligned}

Estimate the rate at which thermal energy leaves the room through the wall giving the answer with an appropriate unit.
