Edexcel A-Level Chemistry A2 16.6 Core Practical 12 Investigating Some Electrochemical Cells Questions

Practise Core Practical 12 by drawing labelled standard cells, describing a suitable salt bridge and correcting errors in electrochemical apparatus diagrams.

Exam points

Draw a standard cell with labelled electrodes, solutions, salt bridge and voltmeter.
Describe a salt bridge as filter paper soaked in KNO3 or another suitable electrolyte.
Correct apparatus errors such as a power supply, wrong electrode or missing salt bridge.

[Maximum number: 3]

This question is about copper and some of its compounds.

An electrochemical cell was made from the electrode systems represented by these half-equations:

\begin{array}{ll} \mathrm{Cu}^{2+}(\mathrm{aq})+2 \mathrm{e}^{-} \rightleftharpoons \mathrm{Cu}(\mathrm{~s}) & E^{\ominus}=+0.34 \mathrm{~V} \\ \mathrm{Fe}^{3+}(\mathrm{aq})+\mathrm{e}^{-} \rightleftharpoons \mathrm{Fe}^{2+}(\mathrm{aq}) & E^{\ominus}=+0.77 \mathrm{~V} \end{array}

A student drew a diagram of an experiment to measure the standard emf of the cell.

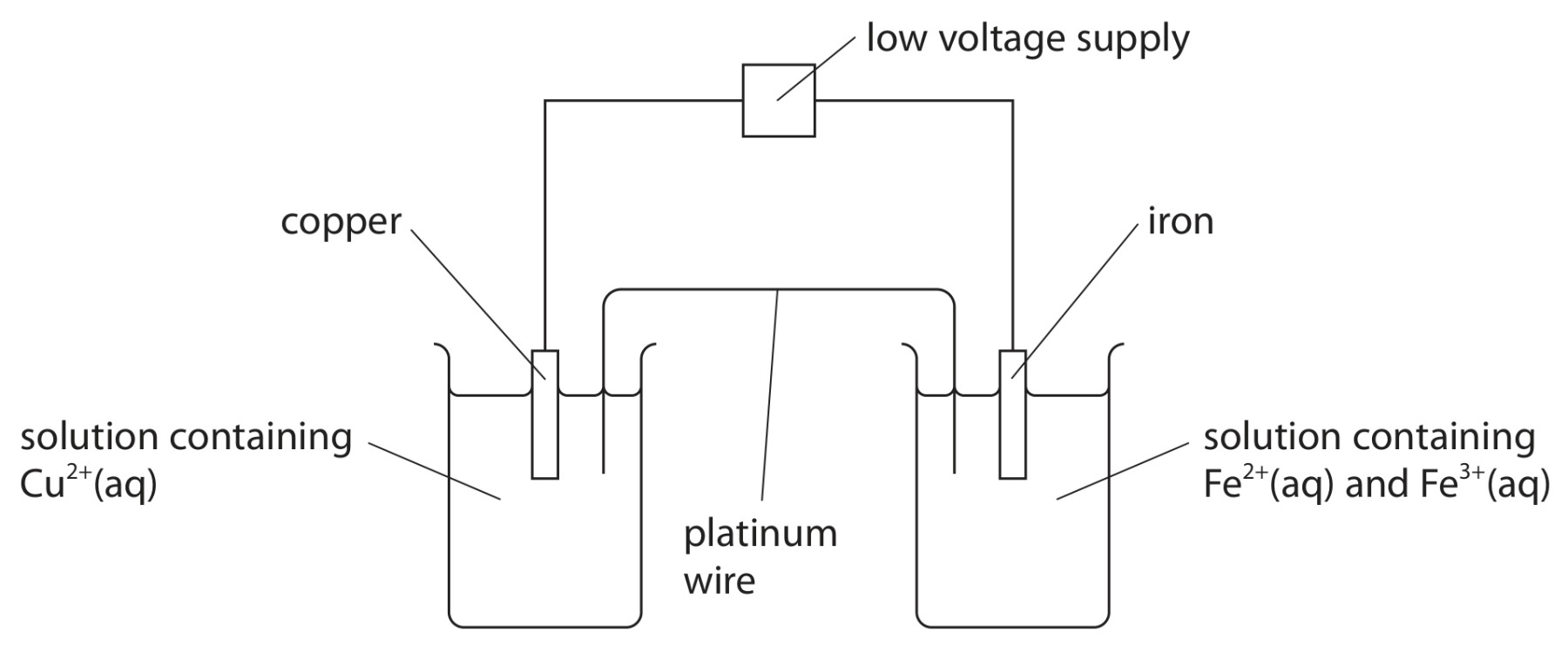

Figure for Question Edexcel A-Level Chemistry A2 16.6 Core Practical 12 Investigating Some Electrochemical Cells Questions question 1 — Edexcel A-Level Chemistry A2

Identify three mistakes in this diagram and the changes needed to correct them.

Assume that standard conditions were used.

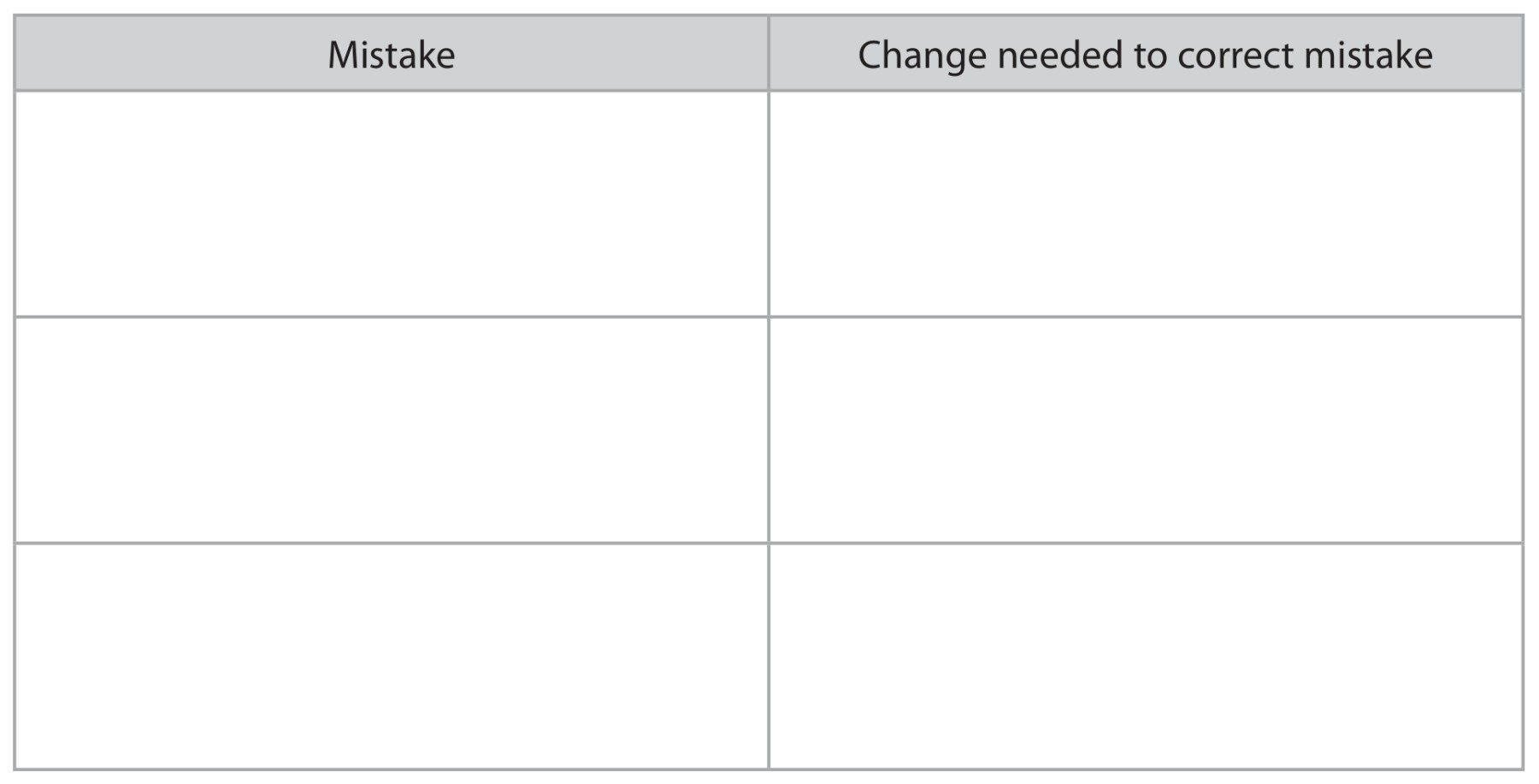

Table for Question Edexcel A-Level Chemistry A2 16.6 Core Practical 12 Investigating Some Electrochemical Cells Questions question 1 — Edexcel A-Level Chemistry A2
