CAIE A-Level Physics A2 19.3 Discharging a Capacitor Questions

Practise analysing capacitor-discharge graphs, calculating the time constant tau = RC and applying exponential equations to determine circuit quantities.

Syllabus
2028–2030
Course
Physics 9702
Level
A2

Exam points

  • analyse capacitor-discharge graphs for potential difference, charge and current
  • calculate and interpret τ=RC
  • apply exponential discharge equations to determine time, initial/final quantities or circuit parameters

Question 1

[Maximum number: 8]

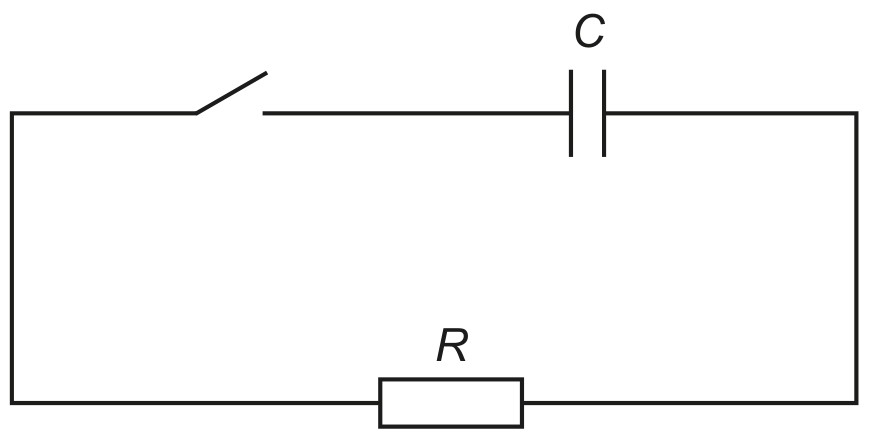

Fig. 6.1 shows a capacitor of capacitance C connected in series with a resistor of resistance R.

Fig. 6.1

Fig. 6.1

Initially the switch is open and there is a p.d. of 12 V across the capacitor.
At time t=0, the switch is closed so that there is a current I in the resistor.

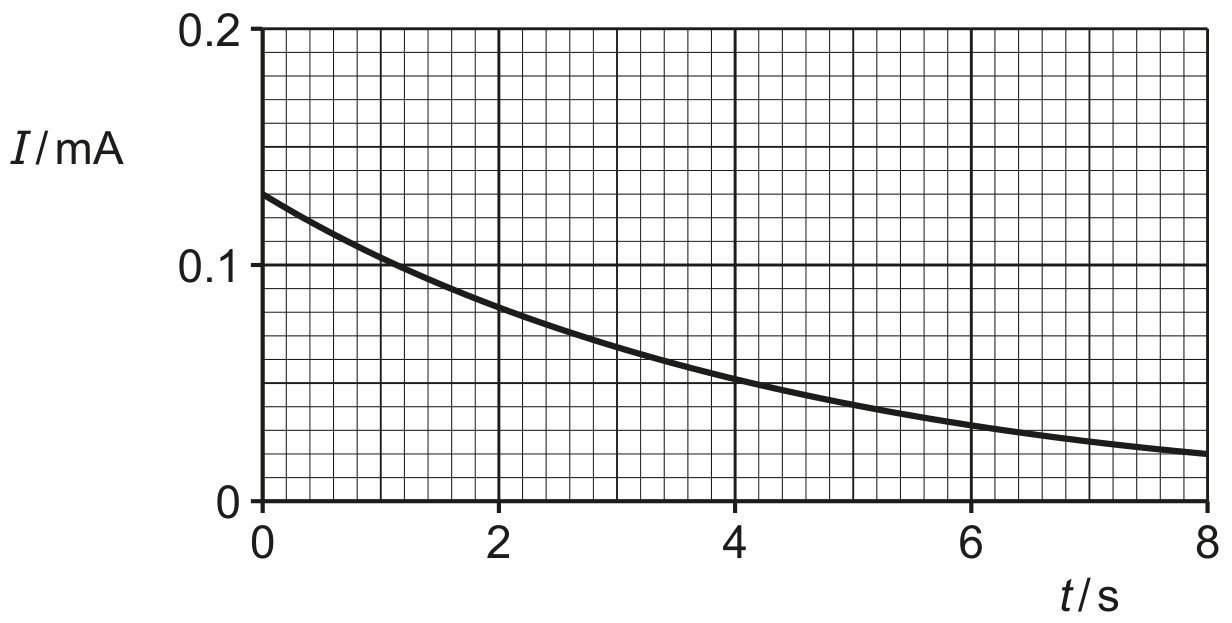

Fig. 6.2 shows the variation of I with t.

Fig. 6.2

Fig. 6.2

Question (a)

(a)

Explain the shape of the line in Fig. 6.2.

[ 3 ]

Question (b)

(b)

Use Fig. 6.2 to determine:

[ 3 ]

Question (i)

(i)

the time constant τ\tau of the circuit in Fig. 6.1.

τ= s [3] \begin{aligned} & \tau= \\ & \text { s [3] } \end{aligned}
[ 3 ]

Question (c)

(c)

Use your answers in (b) to determine capacitance C.

C =F [2]
[ 2 ]

Question 2

[Maximum number: 4]

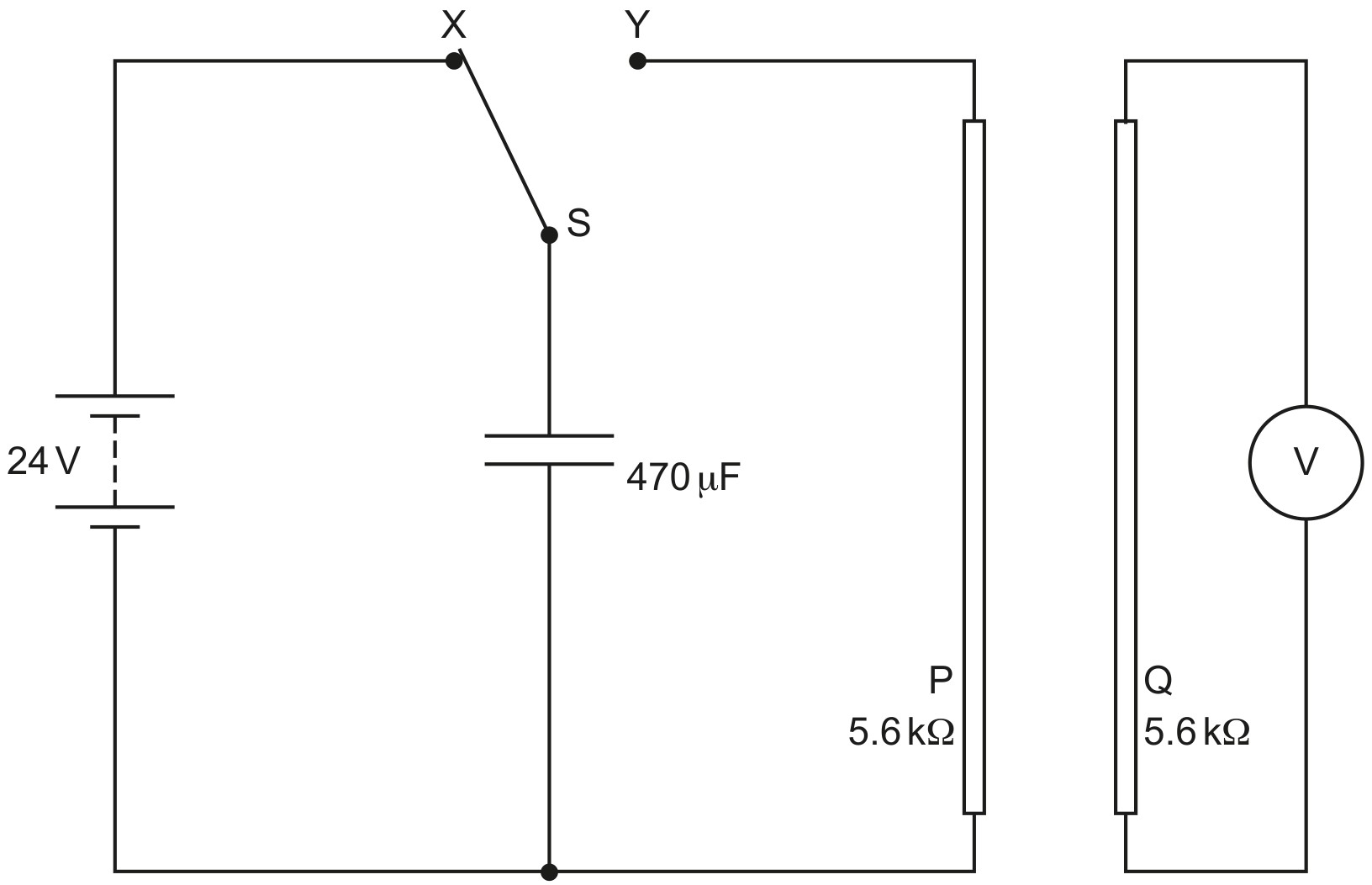

A capacitor of capacitance 470μ F470 \mu \mathrm{~F} is connected to a battery of electromotive force (e.m.f.) 24 V in the circuit of Fig. 5.1.

Fig. 5.1

Fig. 5.1

The two-way switch S is initially at position X.
P and Q are identical long straight wires, each with a resistance of 5.6kΩ5.6 \mathrm{k} \Omega. These wires are placed near to, and parallel to, each other. Wire Q is connected to a voltmeter.

At time t=0, switch S is moved to position Y so that the capacitor discharges through wire P .

Question (a)

(a)

Calculate the current I0I_{0} in wire P at time t=0.

I0=I_{0}=
[ 1 ]

Question (b)

(b)

Calculate the time constant τ\tau of the discharge circuit.

τ=\tau=
[ 1 ]

Question (c)

(c)

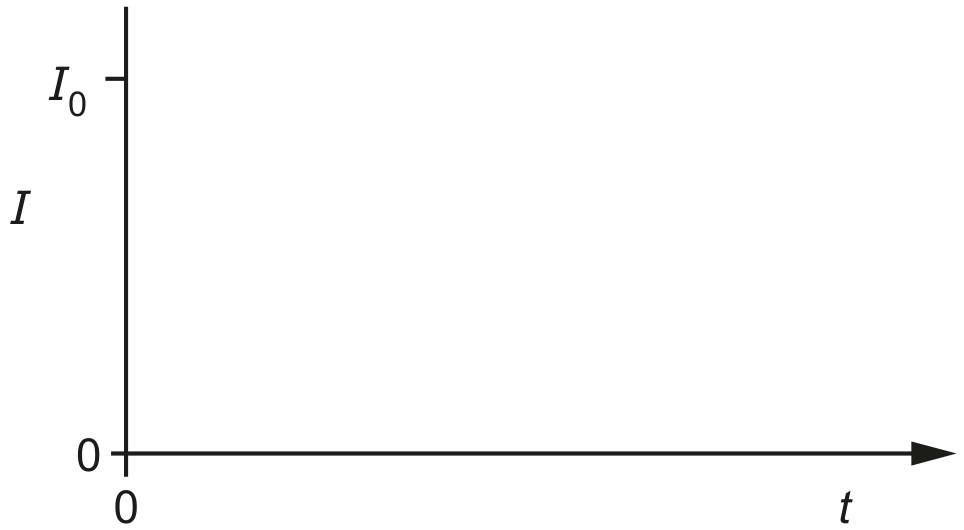

On Fig. 5.2, sketch a line to show the variation with t of the current I in wire P as the capacitor discharges.

Fig. 5.2

Fig. 5.2

[ 2 ]

Question 3

[Maximum number: 8]

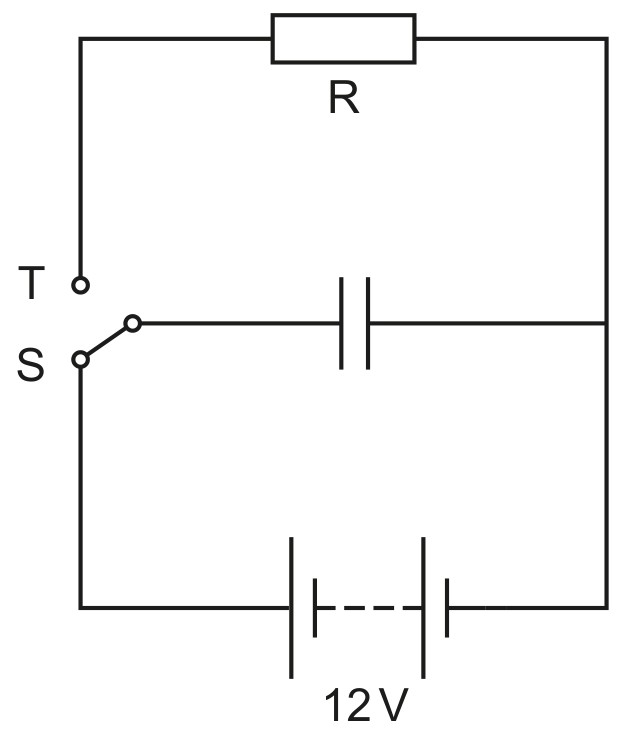

A capacitor, a battery of electromotive force (e.m.f.) 12 V , a resistor R and a two-way switch are connected in the circuit shown in Fig. 5.1.

Fig. 5.1

Fig. 5.1

The switch is initially in position S . When the capacitor is fully charged, the switch is moved to position T so that the capacitor discharges. At time t after the switch is moved the charge on the capacitor is Q.

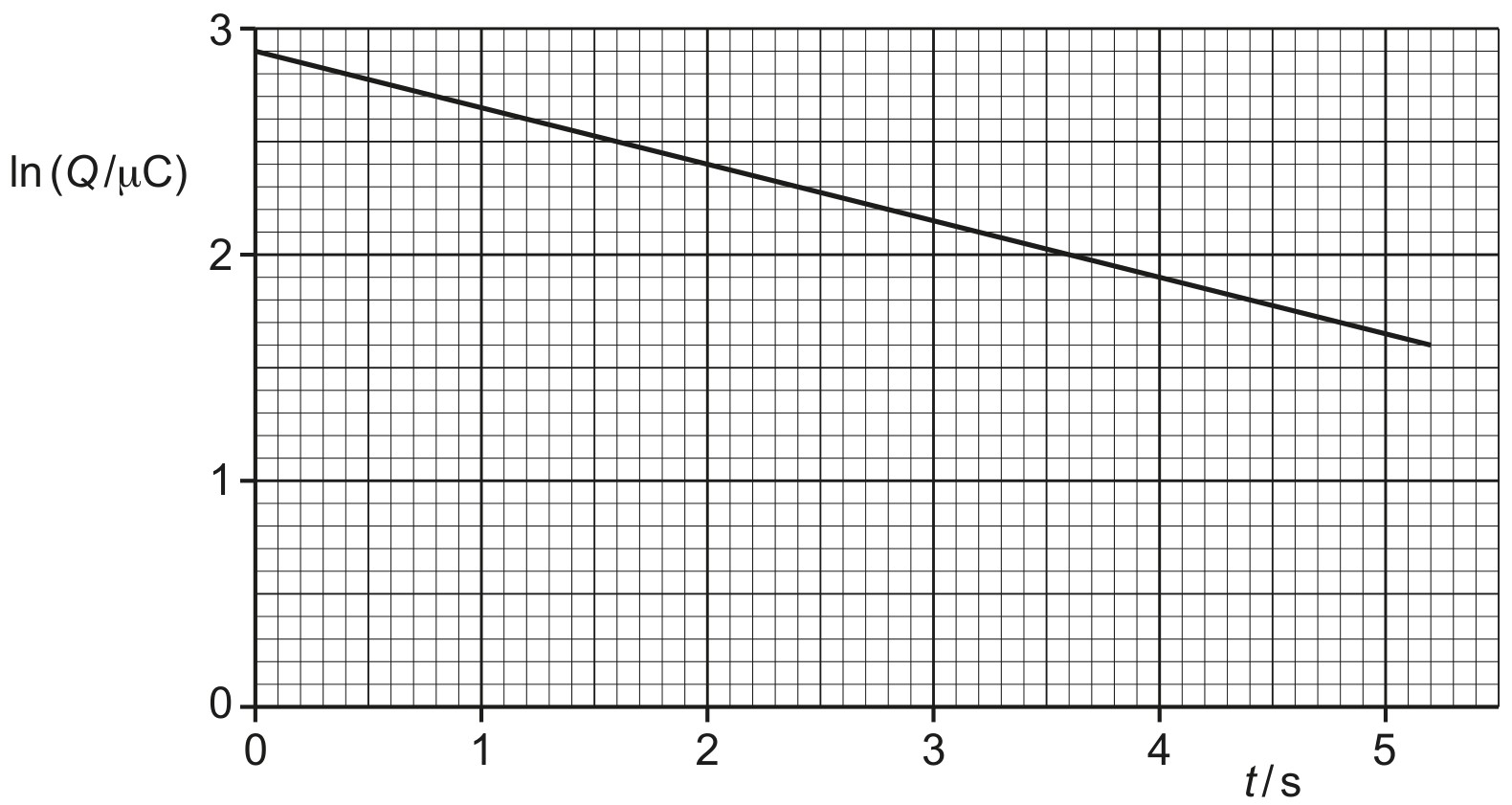

The variation with t of ln⁡(Q/μC)\ln (Q / \mu C) is shown in Fig. 5.2.

Fig. 5.2

Fig. 5.2

Question (a)

(a)

Show that the capacitance of the capacitor is 1.5μ F1.5 \mu \mathrm{~F}.

[ 3 ]

Question (b)

(b)

Determine the resistance of R.

resistance =
[ 3 ]

Question (c)

(c)

A second identical resistor is now connected in parallel with R.

The switch is initially in position S . When the capacitor is fully charged, the switch is moved to position T so that the capacitor discharges. At time t after the switch is moved the charge on the capacitor is Q.

On Fig. 5.2, sketch a line to show the variation of ln⁡(Q/μC)\ln (Q / \mu \mathrm{C}) with t between time t=0 and time t=5.0 st=5.0 \mathrm{~s}.

[ 2 ]

Question 4

[Maximum number: 3]

Fig. 6.1 shows a capacitor of capacitance C connected in series with a resistor of resistance R.

Fig. 6.1

Fig. 6.1

Initially the switch is open and there is a p.d. of 12 V across the capacitor.
At time t=0, the switch is closed so that there is a current I in the resistor.
Fig. 6.2 shows the variation of I with t.

Fig. 6.2

Fig. 6.2

Explain the shape of the line in Fig. 6.2.

Question 5

[Maximum number: 1]

A capacitor of capacitance 470μ F470 \mu \mathrm{~F} is connected to a battery of electromotive force (e.m.f.) 24 V in the circuit of Fig. 5.1.

Fig. 5.1

Fig. 5.1

The two-way switch S is initially at position X.
P and Q are identical long straight wires, each with a resistance of 5.6kΩ5.6 \mathrm{k} \Omega. These wires are placed near to, and parallel to, each other. Wire Q is connected to a voltmeter.

At time t=0, switch S is moved to position Y so that the capacitor discharges through wire P .

Calculate the time constant τ\tau of the discharge circuit.

τ=\tau=

Question 6

[Maximum number: 2]

A capacitor, a battery of electromotive force (e.m.f.) 12 V , a resistor R and a two-way switch are connected in the circuit shown in Fig. 5.1.

Fig. 5.1

Fig. 5.1

The switch is initially in position S . When the capacitor is fully charged, the switch is moved to position T so that the capacitor discharges. At time t after the switch is moved the charge on the capacitor is Q.

The variation with t of ln⁡(Q/μC)\ln (Q / \mu C) is shown in Fig. 5.2.

Fig. 5.2

Fig. 5.2

A second identical resistor is now connected in parallel with R.

The switch is initially in position S . When the capacitor is fully charged, the switch is moved to position T so that the capacitor discharges. At time t after the switch is moved the charge on the capacitor is Q.

On Fig. 5.2, sketch a line to show the variation of ln⁡(Q/μC)\ln (Q / \mu \mathrm{C}) with t between time t=0 and time t=5.0 st=5.0 \mathrm{~s}.
