Practise carrying out laboratory investigations, using microscopy, presenting observations and data, and drawing evidence-based conclusions and improvements.
Alveolar macrophages are cells of the immune system that remain in the alveolar region of the gas exchange system. The macrophages protect against infection caused by pathogens that have been inhaled.
Alveolar macrophages have the same cell structures as typical animal cells.

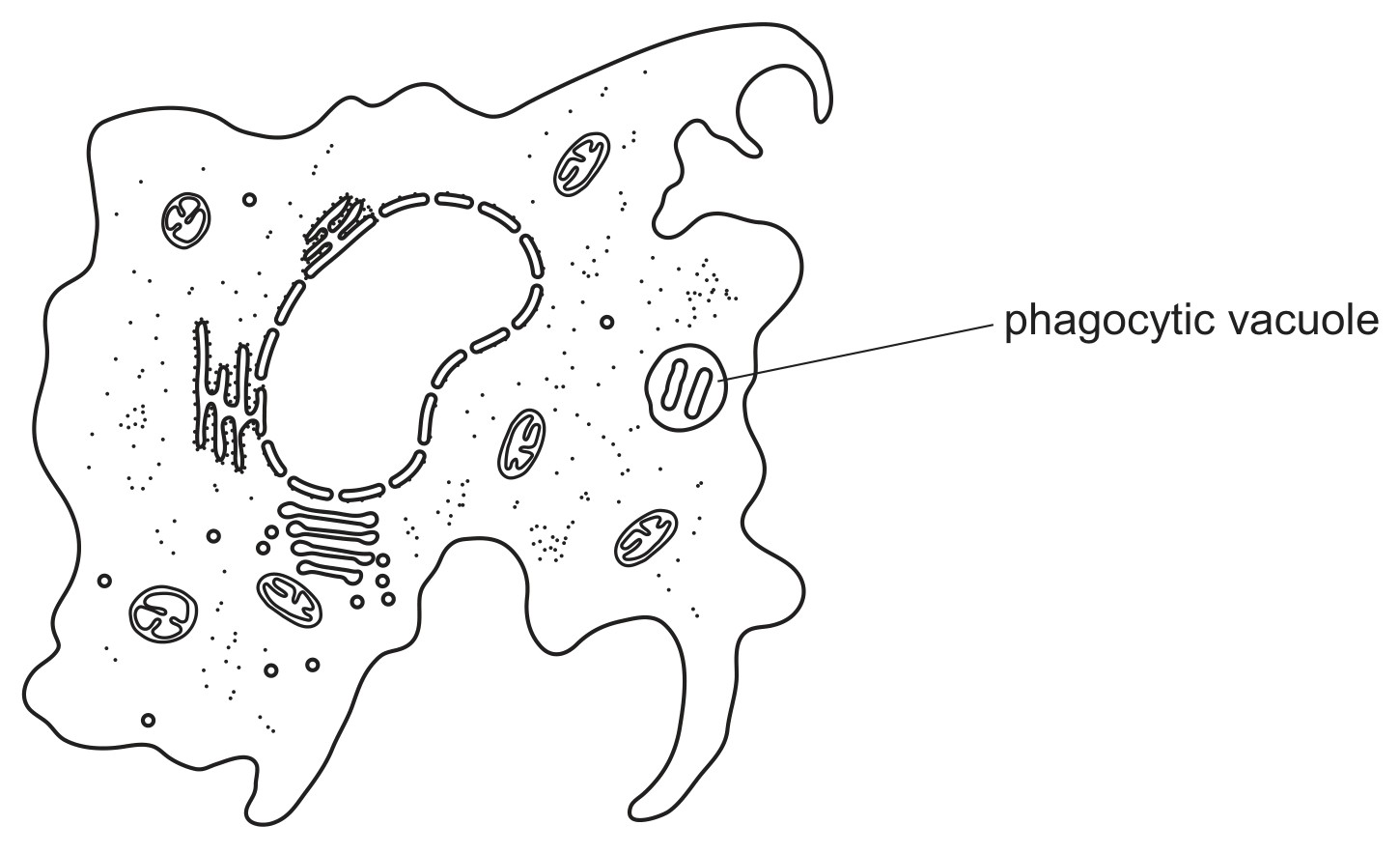

Fig. 2.1 is a diagram of an alveolar macrophage showing:
- some of the cell structures that would be visible using an electron microscope
- a newly formed phagocytic vacuole (phagosome) containing two cells of Mycobacterium tuberculosis.
Fig. 2.1
The cell structures with the functions described in Table 2.1 are not shown in Fig. 2.1.
Complete Fig. 2.1 by drawing and labelling the cell structures described in Table 2.1.
The graph shows the percentage of tuberculosis (TB) patients who were also known to be infected with HIV, from 2004 to 2011.
Which statement about the graph is correct?
From 2004 to 2010, the percentage of TB patients with HIV infection in region P increased from 3% to 69%.
From 2005 to 2011, the percentage of TB patients with HIV infection increased more rapidly in region P than in regions outside region P.
From 2006 to 2011, the percentage of TB patients with HIV infection in regions outside region P doubled.
From 2007 to 2011, the percentage of TB patients with HIV infection globally increased from 20% to 30%.
