IGCSE Chemistry 6.4 Redox Question Bank

[Maximum number: 1]

Iron ore contains iron(III) oxide, $\mathrm{Fe}_{2} \mathrm{O}_{3}$ . A blast furnace is used to extract iron from $\mathrm{Fe}_{2} \mathrm{O}_{3}$ .
Equations for some of the reactions in the blast furnace are shown.

equation $1 \mathrm{C}+\mathrm{O}_{2} \rightarrow \mathrm{CO}_{2}$

equation $2 \mathrm{CaCO}_{3} \rightarrow \mathrm{CaO}+\mathrm{CO}_{2}$

equation $3 \quad \mathrm{CaO}+\mathrm{SiO}_{2} \rightarrow \mathrm{CaSiO}_{3}$

(a)

Iron(III) oxide, $\mathrm{Fe}_{2} \mathrm{O}_{3}$ , in iron ore is converted to iron when it reacts with carbon monoxide, CO , in the blast furnace.

[ 1 ]

(i)

Name the chemical process which happens to iron when iron(III) oxide is converted to iron in the blast furnace.

[ 1 ]

[Maximum number: 3]

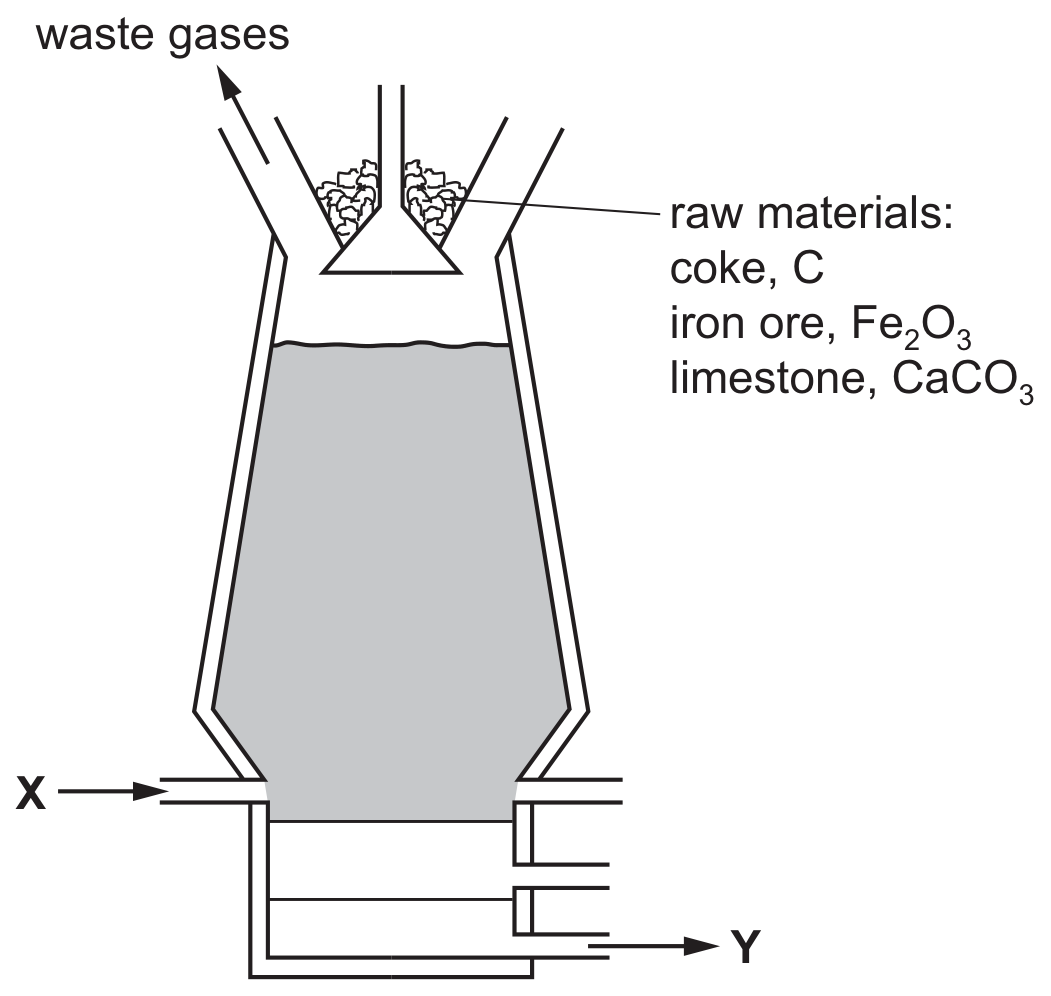

The diagram shows a blast furnace.

(a)

The following equations represent reactions which take place in the blast furnace.

A $\mathrm{C}+\mathrm{O}_{2} \rightarrow \mathrm{CO}_{2}$

B $\mathrm{CaCO}_{3} \rightarrow \mathrm{CaO}+\mathrm{CO}_{2}$

C $\mathrm{CaO}+\mathrm{SiO}_{2} \rightarrow \mathrm{CaSiO}_{3}$

D $\mathrm{CO}_{2}+\mathrm{C} \rightarrow 2 \mathrm{CO}$

E $\mathrm{Fe}_{2} \mathrm{O}_{3}+3 \mathrm{CO} \rightarrow 2 \mathrm{Fe}+3 \mathrm{CO}_{2}$

[ 1 ]

(i)

In which reaction is carbon both oxidised and reduced?

[ 1 ]

(b)

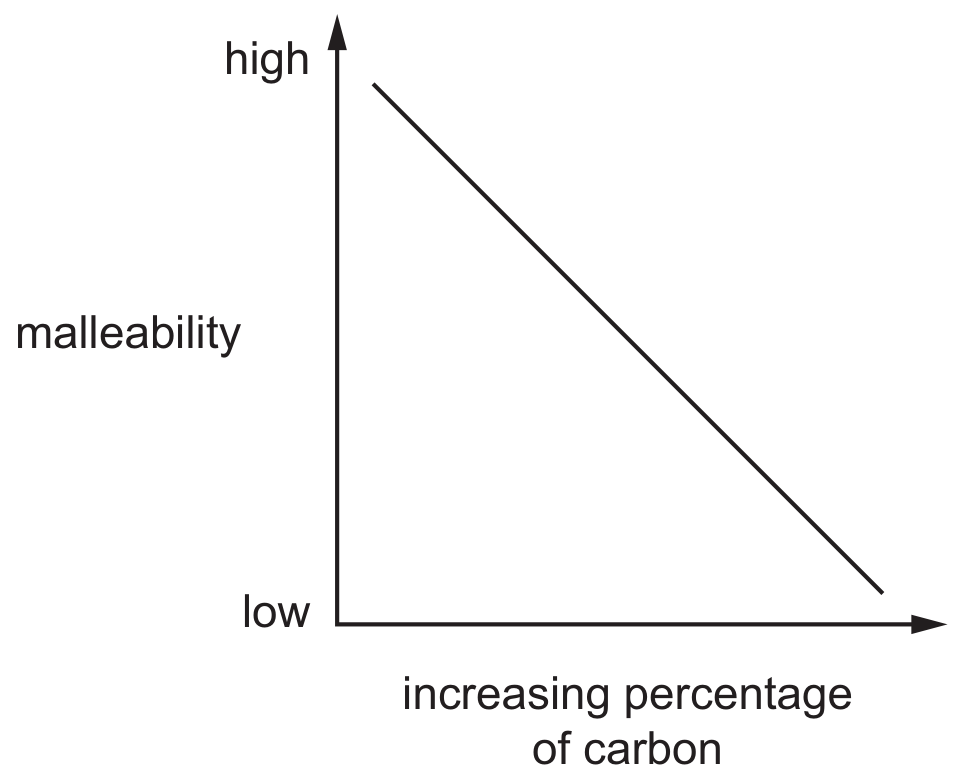

The graph shows how the malleability of iron changes as the percentage of carbon in the iron changes.

[ 2 ]

(i)

Iron obtained from the blast furnace contains high levels of carbon.

Explain how the amount of carbon in the iron can be decreased.

[ 2 ]

(a)

The symbols of the elements in Period 2 of the Periodic Table are shown.
Li Be
B
C
N
0
F
Ne

Use the symbols of the elements in Period 2 to answer the questions that follow. Each symbol may be used once, more than once or not at all.

Give the symbol of the element that:

[ 1 ]

(i)

only has an oxidation number of zero.

[ 1 ]

(a)

The symbols of the elements in Period 3 of the Periodic Table are shown.

Use the symbols of the elements in Period 3 to answer the questions that follow. Each symbol may be used once, more than once, or not at all.

Give the symbol of the element that:

[ 1 ]

(i)

has an oxidation number of -1 when it forms a compound with hydrogen.

[ 1 ]

(a)

Aluminium is extracted from its ore by electrolysis.

[ 1 ]

(i)

The reaction at the anode during the extraction of aluminium by electrolysis is shown.

2 \mathrm{O}^{2-} \rightarrow \mathrm{O}_{2}+4 \mathrm{e}^{-}

Is this process oxidation or reduction?
Give a reason for your answer.

[ 1 ]

[Maximum number: 1]

Three ionic compounds of vanadium have the formulae $\mathrm{V}_{2} \mathrm{O}, \mathrm{VCl}_{2}$ and $\mathrm{V}_{2} \mathrm{O}_{3}$ .
What is the charge on the vanadium ion in each compound?

$\mathrm{V}_{2} \mathrm{O}$

$\mathrm{VCl}_{2}$

$\mathrm{~V}_{2} \mathrm{O}_{3}$

-2

[Maximum number: 1]

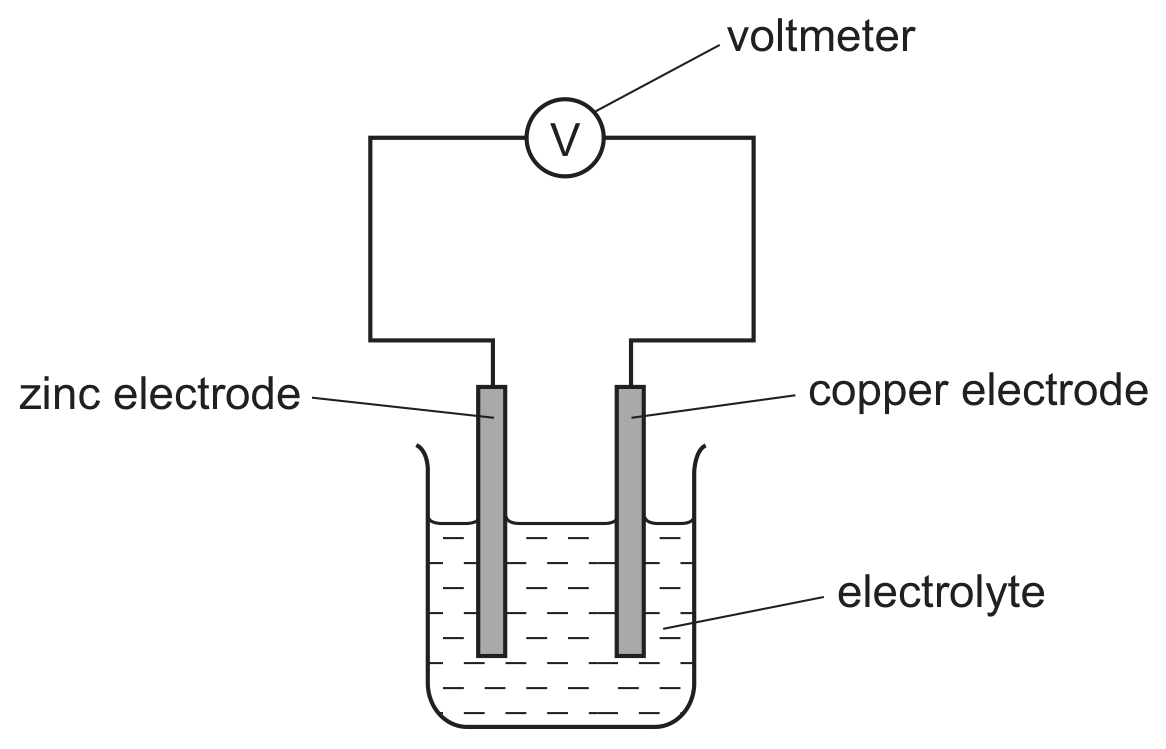

The diagram shows a simple cell.

Which statement about the process occurring when the cell is in operation is correct?

$\mathrm{Cu}^{2+}$ ions are formed in solution.

Electrons travel through the solution.

C The reaction $\mathrm{Zn} \rightarrow \mathrm{Zn}^{2+}+2 \mathrm{e}^{-}$ occurs.

D The zinc electrode increases in mass.

[Maximum number: 2]

Ammonia is manufactured by the Haber process.

(a)

Ammonia, $\mathrm{NH}_{3}$ , is used to produce nitric acid, $\mathrm{HNO}_{3}$ . This happens in a three-stage process.

Stage 1 is a redox reaction.

4 \mathrm{NH}_{3}+5 \mathrm{O}_{2} \rightarrow 4 \mathrm{NO}+6 \mathrm{H}_{2} \mathrm{O}

[ 2 ]

(i)

Identify what is oxidised in stage 1.

Give a reason for your answer.
substance oxidised
reason

[ 2 ]

[Maximum number: 2]

Zinc is extracted from an ore containing zinc sulfide.

(a)

This ore is converted to zinc oxide, ZnO .

Zinc oxide is then reacted with carbon.

[ 2 ]

(i)

State what type of chemical change happens to the zinc in zinc oxide in this reaction.

Explain your answer.
chemical change
explanation

[ 2 ]

[Maximum number: 1]

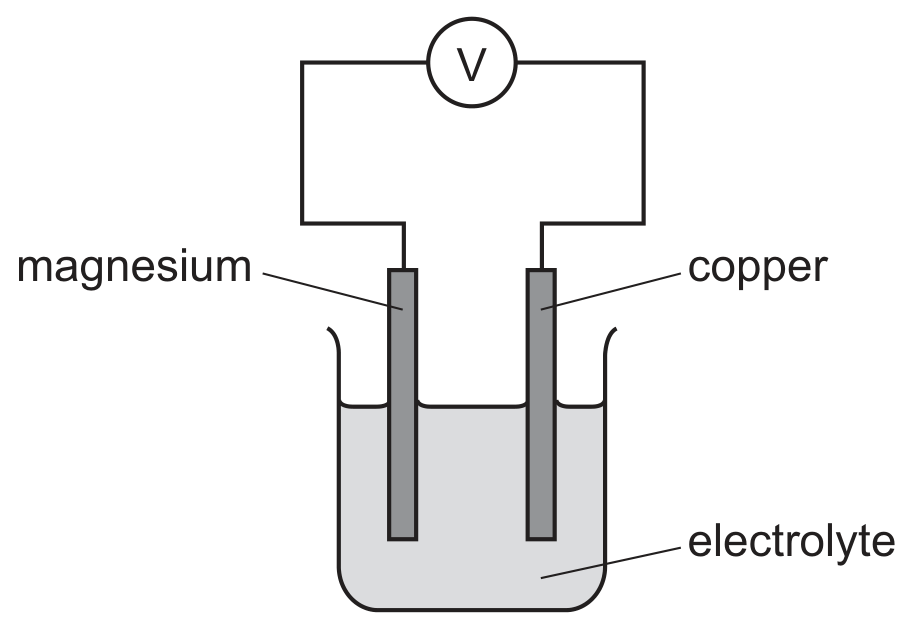

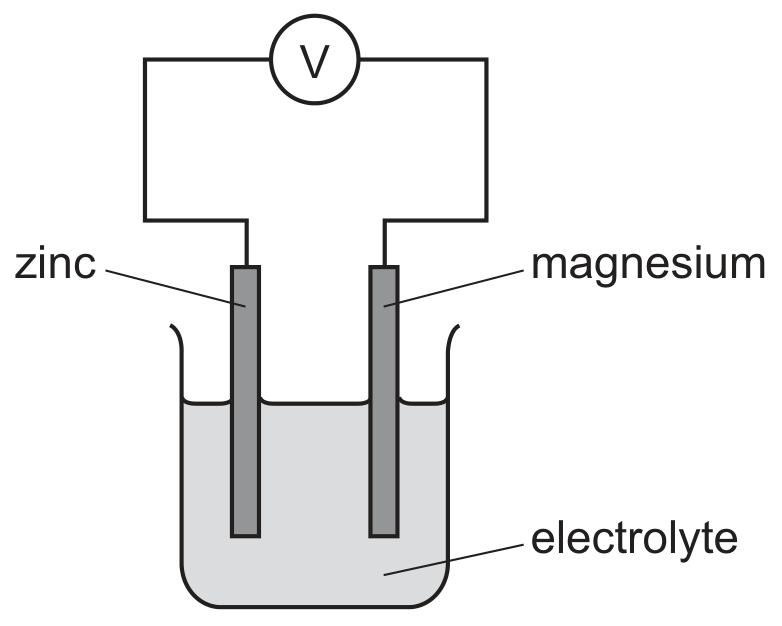

The electrical energy, or voltage, of two simple cells is measured.

cell 1

cell 2

statement 1 The voltage of cell 1 is greater than cell 2.
statement 2 Zinc is more reactive than copper.
statement 3 Magnesium is oxidised in both cells.
statement 4 Magnesium atoms lose electrons to form magnesium ions.
Which option is correct?

All the statements are correct.

Only statements 1 and 3 are correct.

Statement 2 is correct and explains statement 1.

Statement 4 is correct and explains statement 3.
