CAIE IGCSE Mathematics Extended E9.6 Cumulative Frequency Diagrams Topic Practice

CourseCourseConceptConceptDocumentDocument

Covered syllabus points

E9.6.1 Draw and interpret cumulative frequency tables and diagrams.E9.6.2 Estimate and interpret the median, percentiles, quartiles and

Question 1

[Maximum number: 7]

A student measures the height, h cmh \mathrm{~cm}, of each of 400 plants.

Question (a)

(a)

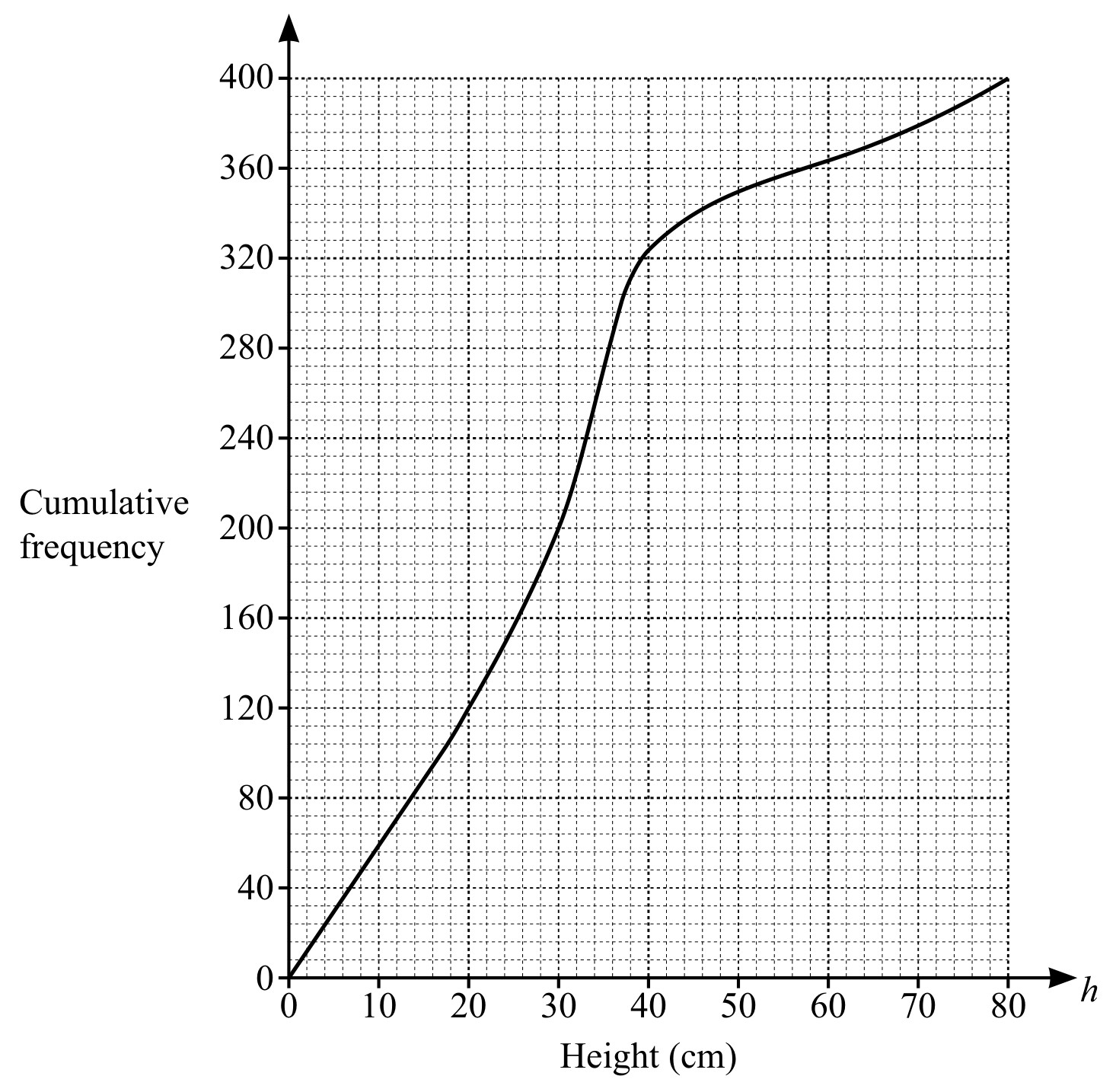

The cumulative frequency diagram shows the results.

Figure for Question (a) — CAIE IGCSE Mathematics Extended

Use the diagram to find an estimate for

[ 7 ]

Question (i)

(i)

the median cm [1]

[ 1 ]

Question (ii)

(ii)

the interquartile range cm [2]

[ 2 ]

Question (iii)

(iii)

the 80th percentile cm [2]

[ 2 ]

Question (iv)

(iv)

the number of plants with a height greater than 60 cm .

[ 2 ]

Question 2

[Maximum number: 10]
Table for Question 2 — CAIE IGCSE Mathematics Extended

The table shows information about the heights of 80 children.

Question (a)

(a)

Write down the interval containing the median.
<h⩽<h\leqslant

[ 1 ]

Question (b)

(b)
Table for Question (b) — CAIE IGCSE Mathematics Extended

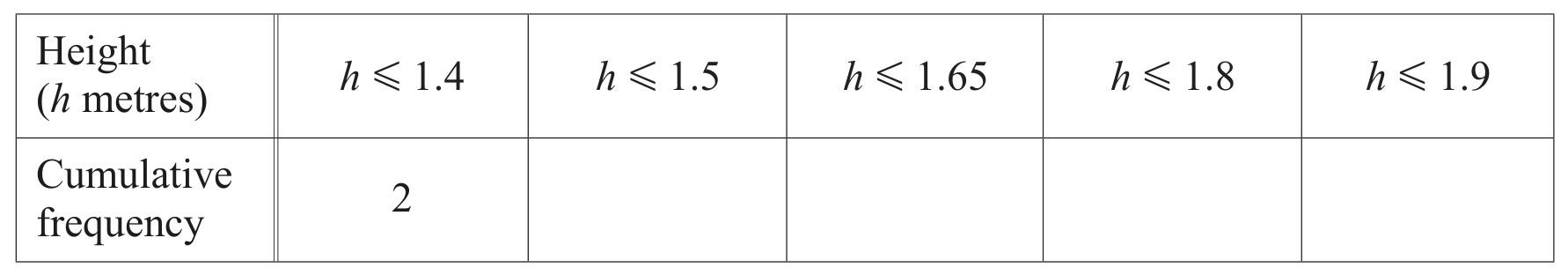

Complete the cumulative frequency table for the heights.

[ 2 ]

Question (c)

(c)

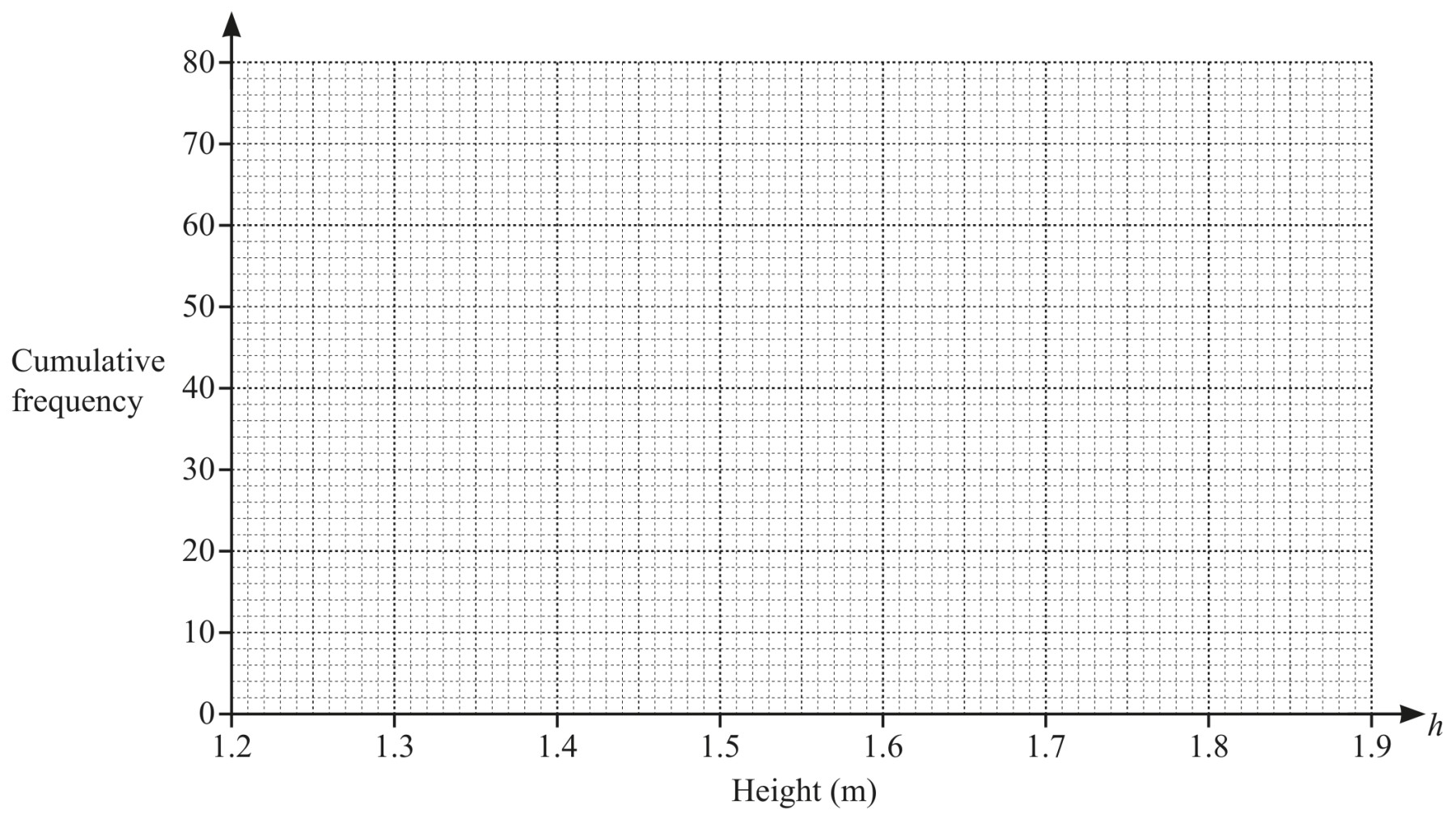

On the grid, draw the cumulative frequency diagram.

Figure for Question (c) — CAIE IGCSE Mathematics Extended
[ 3 ]

Question (d)

(d)

Use your diagram to find an estimate of

[ 4 ]

Question (i)

(i)

the interquartile range m

[ 2 ]

Question (ii)

(ii)

the 60th percentile m

[ 2 ]
