CAIE IGCSE Mathematics Extended E4.1 Geometrical Terms Topic Practice

CourseCourseConceptConceptDocumentDocument

Covered syllabus points

E4.1.1 Geometrical termsE4.1.2 Shapes, polygons, nets and solidsE4.1.3 Circle vocabulary

Question 1

[Maximum number: 2]

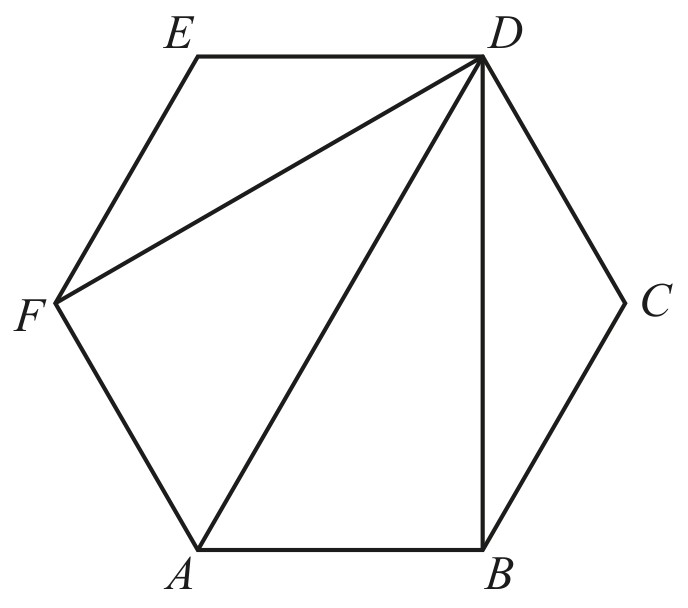

Figure for Question 1 — CAIE IGCSE Mathematics Extended

NOT TO
SCALE
ABCDEF is a regular hexagon.
D F, D A and DB are diagonals.
Complete the following statements using three different triangles.
Triangle DEF is congruent to triangle ......
Triangle ...... is congruent to triangle ......

Question 2

[Maximum number: 4]

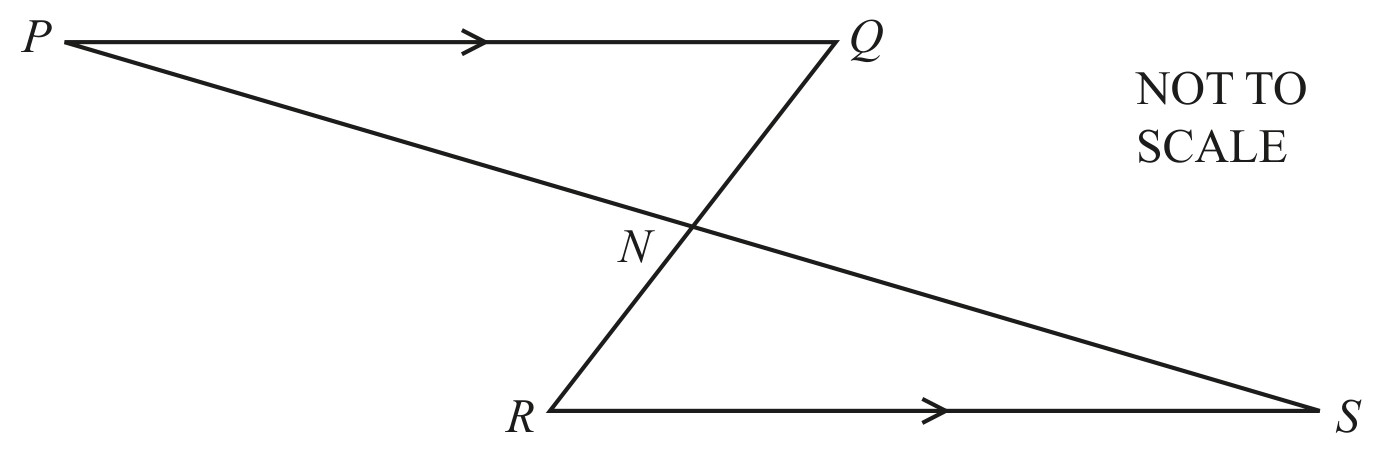

Figure for Question 2 — CAIE IGCSE Mathematics Extended

PQ is parallel to R S, P N S is a straight line and N is the midpoint of RQ.
Explain, giving reasons, why triangle PQN is congruent to triangle SRN.
